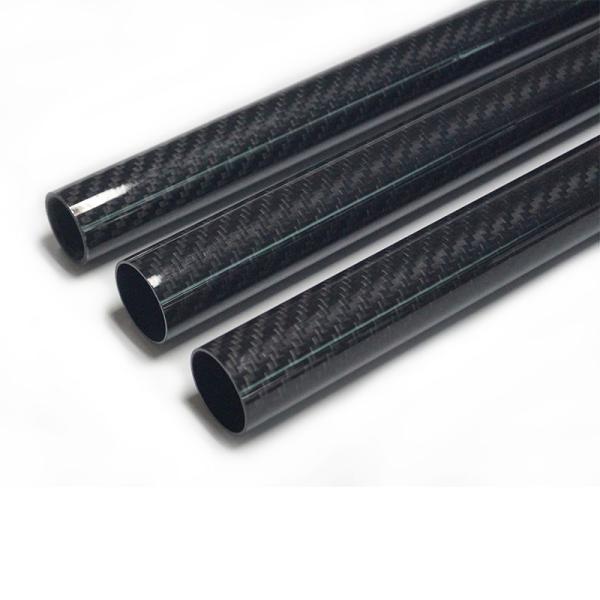

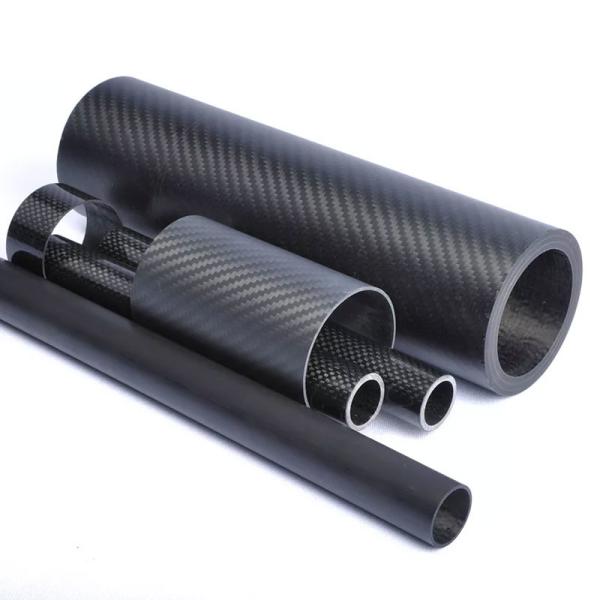

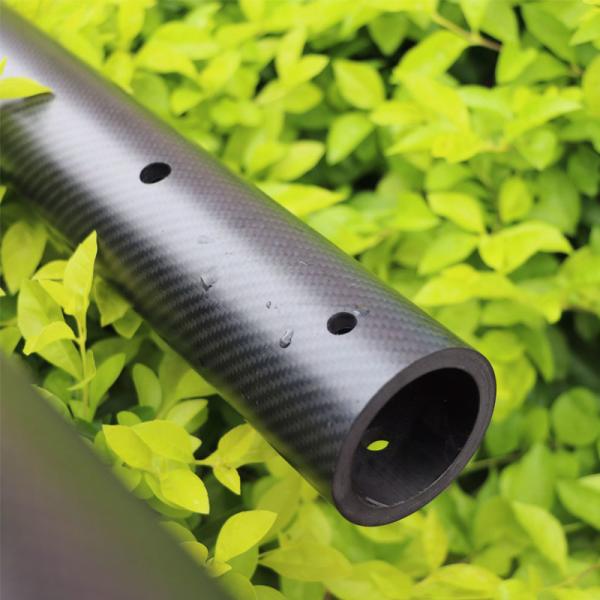

3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building
3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building
3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building
3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building
3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building
3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building
3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building
3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building
Specifications
Brand Name :
Tanku
Model Number :
OEM
Certification :
SGS, ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1500pcs month
Delivery Time :
7 working days after receiving Order Pay
Packaging Details :
Normal Corrugated Carton Packing for International Shipment
Product Name :
Roll Wrapped Carbon Fibre Tube
Production Process :
Roll-Wrapped
Material Finish :
3K glossy twill surface
Different Densities :
1.5g/cm^3
Weaves :
3K Plain / 3K Twill / Unidirection
Working Temperature :
-50-150℃
Features :
Lightness, Rigidity, Great Resistance, etc.
Application :
Multi-Function, UAV/RC Toys/Building/Sports, etc.
Description

Roll Wrapped Carbon Fibre Tube for Use In Projects Requiring Enhanced Strength

Whether your project is big or small, we are bound to have round carbon fiber tubing that suits your needs. As an added bonus we are generally able to ship right away on most products listed in our store! Aside from aesthetic variations of our many round stock tubes, you might also wish to consider their superb mechanical properties as well. That is after all the main reason we love carbon fiber so much! Of course, it's an added bonus that it looks incredible too.

Roll-wrapped tubing is manufactured using multiple layers of prepreg carbon fiber (and if noted, other) materials. In general, each layer is about 0.006 inches thick which means that a tube with a wall thickness of 0.060 inches will typically be composed of 9-10 individual layers of carbon fiber. The number of layers (plys) allows us to vary the orientation of the fibers throughout the thickness, creating a high-performance, engineered product.

Features:

  • Made of Carbon Fiber material
  • High Strength
  • Stable dimension and UV resistant
  • High Corrosion Resistance
  • Electrical & Thermal Non-Conductivity


Material: 100% real carbon fiber composite, T300 carbon fibers.
Lay up: Both Sides 3K +Middle UD Carbon
Weave: twill, plain or one-way cloth
Surface finish: glossy or matte
Color: black or customized
Length: 500mm,1000mm, or customized
Outside diameter: 6-40mm or customized
Processing: CNC machining per your requirement
Technique: Roll-wrapped
OEM Service: Accept

Material 3K Carbon Fiber Tube
Shape Round/Oval
Technology Roll-wrapped or pultrusion
Dimension The existing inner diameter of the mold is 4mm-50mm with a length of 1m.
Customizable size: The maximum diameter can be 200mm, the longest can be 3m.
Surface Black glossy/matte surface/painted
Glossy 3k weave/matte 3k weave
Color metal wire weave
Feature lightweight, high strength
Working Temperature Usually, -30-120 degrees, if special requirement, please let us know.
Place Of Origin China
Function Marine, Agriculture Tools, Arrow Shaft, Medical, Sport Products
Tolerance Diameter Tolerance: +/-0.1mm
Length Tolerance +/-1mm


3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building3k Glossy Twill Roll Wrapped Carbon Fiber Tube Multifunction For Building
