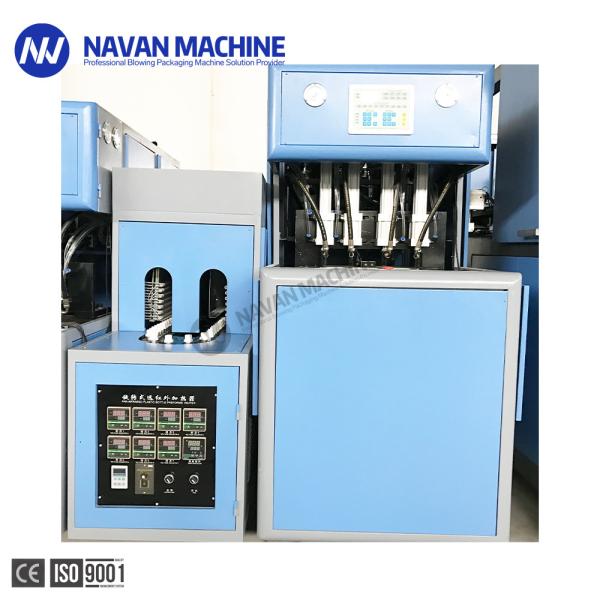

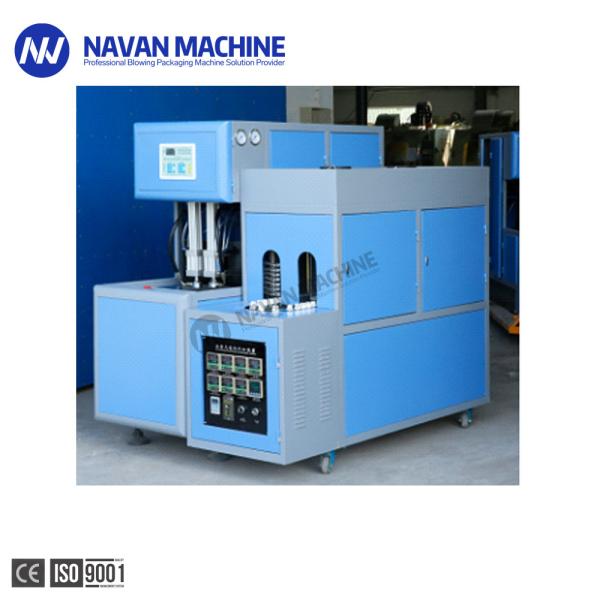

Semi Auto 800-1000BPH 0.2-2.0L Plastic Bottle Stretch Blow Molding Machine
Semi Auto 800-1000BPH 0.2-2.0L Plastic Bottle Stretch Blow Molding Machine
Semi Auto 800-1000BPH 0.2-2.0L Plastic Bottle Stretch Blow Molding Machine
Semi Auto 800-1000BPH 0.2-2.0L Plastic Bottle Stretch Blow Molding Machine
Semi Auto 800-1000BPH 0.2-2.0L Plastic Bottle Stretch Blow Molding Machine
Semi Auto 800-1000BPH 0.2-2.0L Plastic Bottle Stretch Blow Molding Machine
Specifications
Brand Name :
NAVAN MACHINE
Model Number :
NB-200
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 Set
Price :
5,000USD
Payment Terms :
L/C , T/T / Cash / West Union / MoneyGram
Supply Ability :
15 Sets Per Months
Delivery Time :
20-45 Working Days After Receiving Your Deposit Payment
Packaging Details :
Wooden Case Package/PE Film Package
Max Container Volume :
2Itr
Max, Neck Diameter :
38mm
Max Container Diameter :
100mm
Max Container Height :
350mm
Cavity :
2
Output :
800-1000BPH@500ml
Main Machine Size :
163×62×159cm
Main Machine Weight :
650kg
Description

Semi Auto 800-1000BPH 0.2 - 2.0L Plastic Bottle Stretch Blow Molding Machine

The semi-automatic blow molding machine meets CE standards. Controlled by a microcomputer, the technical parameters involved can be controlled more accurately. The operation is simple and safe, only one person is required and no special training is required. This machine can blow carbonated beverage bottles, mineral water bottles, cosmetic bottles, pesticide bottles and jars, etc. Adopting double-boom five-point four-rod clamping structure, sprocket mold adjustment, high-hardness cast iron or steel plate, high mold clamping force, wear resistance, tight and fine clamping seam. Adopt advanced touch screen control system, simple, fast and stable operation.Use adjustable far-infrared heating tube, heating temperature is constant, easy to debug.Independent temperature control to ensure that the preform baking reaches the ideal state.Easy installation, one person operation, no special training, simple and convenient.

Product Paramenters:

Model
NB-200
Molding
Clamping Force kg
13000
Clamping Stroke mm
155
Stretching strok mm
370
Bottom Stroke mm
Cavity Spacing mm
90-130
Number of Cavity Cavities
2
Carriage Unit pcs
72
Theoretical Output
bph
1000-1400
Electrical System
Total Power kw
18
Heating Power kw
32x0.5KW=16
Number of Lamp Layers Layers
8
Air System
Operating Pressure kg/cm²
7-9
Low Pressure Air Consumpt Itr/min
600
Blowing Pressure kg/cm²
20-30
High Pressure Air Consumpt Itr/min
800
Chiller
Operating Pressure kg/cm²
2-4
Temperature Range ℃
10-12
Consumption kcal/hr
1000
Flow Rate Itr/min
150
Machine(Blower)
Main machine dimensions mm(L*W*H)
1650 x650x1750
Main Machine Weight kg
650
Machine(Heater)
Heater Dimensions mm(L*W*H)
1700 x670x1600
Heater Weight kg
350
Container Max Container Volume Itr 2
Max, Neck Diameter mm 38
Max Container Diameter mm 100
Max Container Height mm 350

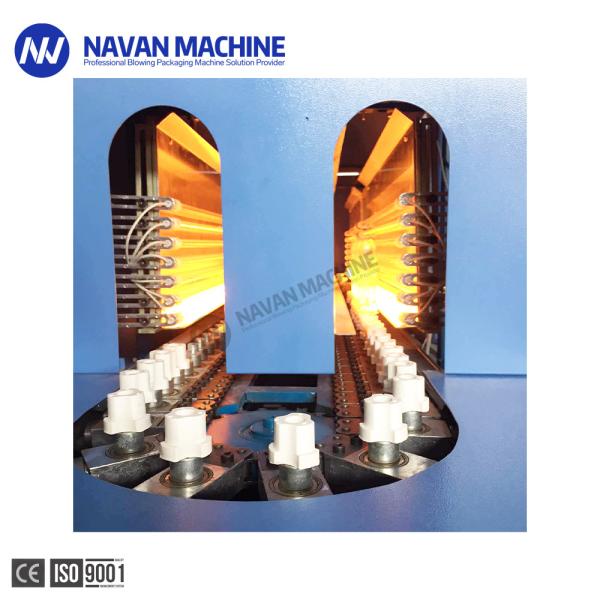

New Heating System.

*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.

*Cycle air-cooling system keeps the oven temperature constantly.

Semi Auto 800-1000BPH 0.2-2.0L Plastic Bottle Stretch Blow Molding Machine

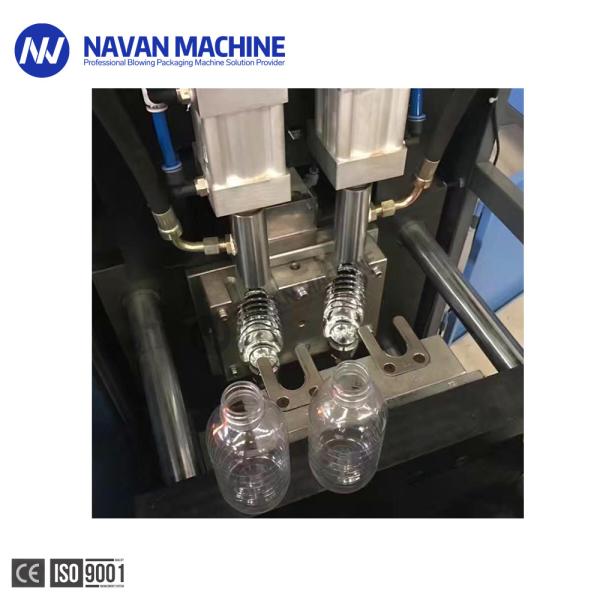

Easy To Change Bottle Shape.

*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottle neck diameter.

Semi Auto 800-1000BPH 0.2-2.0L Plastic Bottle Stretch Blow Molding Machine

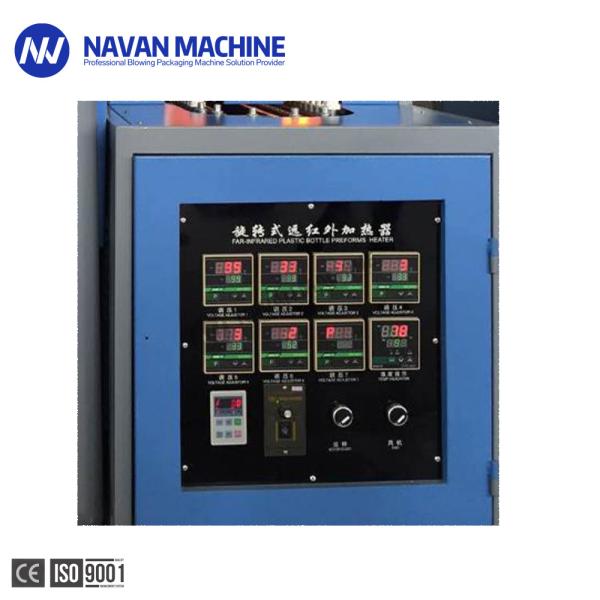

Intelligent Human-Machine Interface.

*Human-machine interface control, easy operate and monitor.
*Live production information supervise, auto record production data everyday

*Failure warning and troubleshooting.

Semi Auto 800-1000BPH 0.2-2.0L Plastic Bottle Stretch Blow Molding Machine
