Forging Plate Welding Full Face Ansi B16 5 Blind Flange
Forging Plate Welding Full Face Ansi B16 5 Blind Flange
Specifications
Brand Name :
ST
Model Number :
pipe fitting 030
Certification :
SGS/ISO9000/EN10204 3.1B/TUV
Place of Origin :
China
MOQ :
1 Piece
Price :
1-100 pieces US $0.53/ Piece;>100 pieces US $0.41/ Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
80000 pieces/month
Delivery Time :
7-15 work days
Packaging Details :
in Wooden Cases or Customers Requirements
Standard :
ANSI, bs, DIN, GB, ISO, JIS, Jpi, ASME
Technics :
Casting
Connection :
Welding
Type :
blind flange
Application area :
Industrial
Wall thickness welding neck :
STD, SCH40, SCH80, SCH160
Coating :
black paint, yellow transparent paint, cold and hot dip galvanize
Packing :
Plywood\wooden Pallets
Description

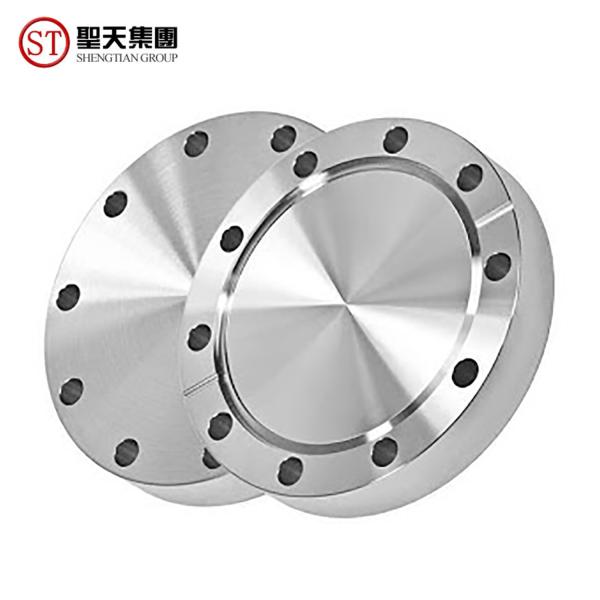

ANSI B16.5 Forging Plate Welding Full Face Forged Carbon Steel Blind Flange
Product Description
Type
Welding Neck Flange,Plate Flange,Slip on flange,Blind Flange,Threaded Flange,Socket Welding Flange
Standard
ANSI
ANSI B16.5 ASME B16.47 series A/B
DIN
DIN
GOST
GOST 12820-80/GOST 12821-80/GOST 12822-80/
EN
EN1092-1:2002
JIS
JIS B2220-2004, KS D3576, KS B6216 KS B1511-2007 JIS B2261; JIS B8210
BS
BS4504 BS10 Table D/E
Material
ANSI
CS A105/SA 105NSS 304/304L, 316/316L Alloy Steel: WHPY45/52/65/80
DIN
CS RST37.2;S235JR SS 304/304L,316/316L
GOST
CS CT20;16MN;SS 304/304L,316/316L
EN
CS RST37.2;S235JR;C22.8SS 304/304L,316/316L
JIS
SS400,SF440 SS 304/304L, 316/316L
BS
CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L
Pressure
ANSI
Class 150, 300, 600, 900, 1500 2500lbs
DIN
PN6,PN10,PN16,PN25,PN40,PN64,PN100
GOST
PN6,PN10,PN16,PN25,PN40,PN64,PN100
EN
PN6,PN10,PN16,PN25,PN40,PN64,PN100
JIS
1K,2K,5K,10K,16K,20K,30K,40K
BS
PN6,PN10,PN16,PN25,PN40,PN64,PN100
Size
ANSI
1/2” – 60”
DIN
DN15-DN2000
GOST
DN15-DN1600
EN
DN15-DN2000
JIS
15A-1500A
BS
DN15-DN2000
Coating
varnish, yellow paint, anti-rust oil, galvanizing etc
Usage
Used for the connection of all kinds of pipeline.
Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting
projects etc.
customization
customization

Carbon steel end blind flange
Steel Flanges
Material Carbon steel ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH
P250GH, P280GHM 16MN, 20MN ,20#
Stainless steel ASTM A182, F304/304L, F316/316L
Alloy steel ASTM A182 A182 F12,F11,F22,F5,F9,F91etc.
Standard ANSI Class 150 Flanges-Class 2500 Flanges
DIN 6Bar 10Bar 16Bar 25Bar 40Bar
GOST PN6 PN10 PN16 PN25 PN40 PN63
JIS 5K Flanges-20K Flanges
UNI 6Bar 10Bar 16Bar 25Bar 40Bar
EN 6Bar 10Bar 16Bar 25Bar 40Bar
TYPE 1.Welding neck Flange 2.Slip on
3.Blind flange 4.Long welding neck flange
5.Lap joint flange 6.Socket welding
7.Threaded flange 8.Flat flange
Surface Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized
Connection Welding, Threaded
Technical Forged, Casting
Size DN10-DN3600
Package 1.>Standard export packaging (Plywood Case Of Outside,Plastic Cloth Of Inside). 2:As Customers' Requirements
Heat Treatment Normalizing, Annealing, Quenching Tempering
Certificate TUV,ISO9001:2008;PED97/23/EC,ISO14001:2004,OHSAS18001:2007

Company Profile

　　Hebei shengtian pipe-fitting group Co., ltd is specialized in manufacturing and exporting a variety of stainless steel,carbon steel pipe fittings such as elbows, tees, reducers ,forged flanges etc. We are standard and non-standard flange mamufacure.All kind of pipe fittings, forged fittings,flanges are according to the international standard to produce.Each product,the quality meet the international standard inspection technical standard.

Product Display

Forging Plate Welding Full Face Ansi B16 5 Blind Flange

Forging Plate Welding Full Face Ansi B16 5 Blind Flange
