Specifications
Brand Name :
CROSS
Model Number :
16IR AG60
Place of Origin :
China
MOQ :
50
Price :
0.68$-0.9$
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30 work days
Coating :
pvd/cvd
Usage :
Thread Turning Tool
Material :
Tungsten Carbide
Color :
Gray/golden/black
Application :
Thread Turning Tool
Workpiece :
steel/stainless steel/cast iron/aluminum/copper
Advantages :
Factory direct
Package :
10pcs/plastic Box
Sample :
Available
Description

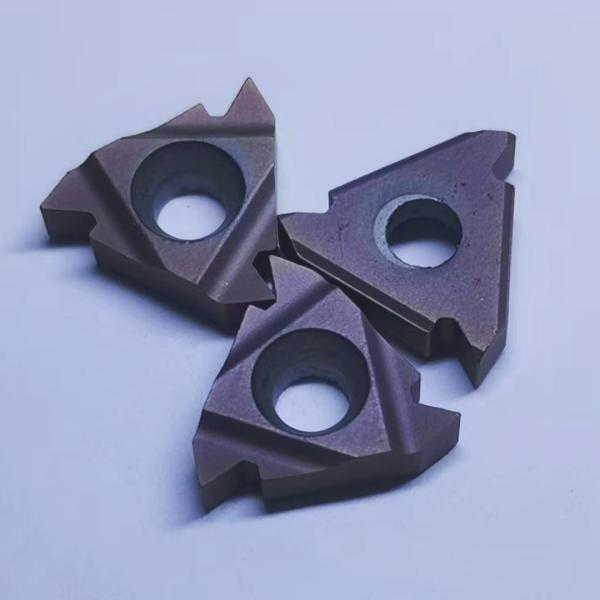

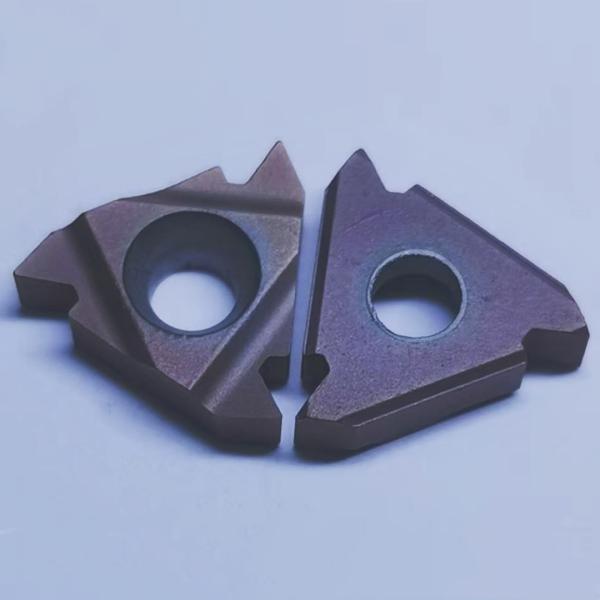

16IR AG60 Carbide Cnc Cutting Tools Threading Insert Turning Insert

Feature Advantage:

  • Observed under a microscope of 40 times, the perfect edge grinding and passivation accuracy.
  • The UN thread series is available in a variety of models and models.
  • The workpiece angle error is controlled at ±0.5 degrees.
  • High-quality cemented carbide substrate, high toughness, high wear resistance and versatility.
  • High-precision tooth type for high-quality, high-precision thread machining of steel, stainless steel, and difficult-to-cut materials.
  • Blade life and processing thread quality are completely comparable to European and American first-line brands.

Type:

Serial

Size

Pitch

MP2215

ISO:

ISO 965-1980

DIN 13

16 Right/Left External 0.5-3.0 mm

ISO:

ISO 965-1980

DIN 13

16 Right/Left Internal 0.5-3.0 mm

ISO:

ISO 965-1980

DIN 13

22 Right/Left External 3.5-6.0 mm

ISO:

ISO 965-1980

DIN 13

22 Right/Left Internal 3.5-6.0 mm

Wyeth:

ISO 228/1:1982

DIN 259,B.S.84: 1956

16 Right/Left External 8-19 t/inch

Wyeth:

ISO 228/1:1982

DIN 259,B.S.84: 1956

16 Right/Left Internal 8-19 t/inch

UN:

ASME B1.1 - 1989

16 Right/Left External 8-24 t/inch

UN:

ASME B1.1 - 1989

16 Right/Left Internal 8-24 t/inch

Standard SSPT:

ISO 7/1:1994

B.S.21:1985

16 Right/Left External 11-28 t/inch

Standard SSPT:

ISO 7/1:1994

B.S.21:1985

16 Right/Left Internal 11-28 t/inch

Standard NPT:

ASME B1.20.1-1983

16 Right/Left External 8-27 t/inch

Standard NPT:

ASME B1.20.1-1983

16 Right/Left Internal 8-27 t/inch
