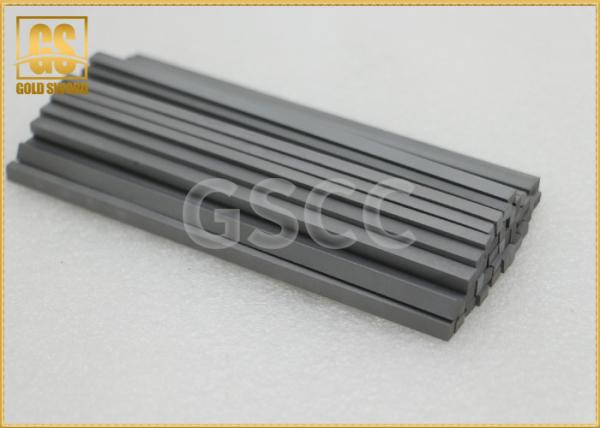

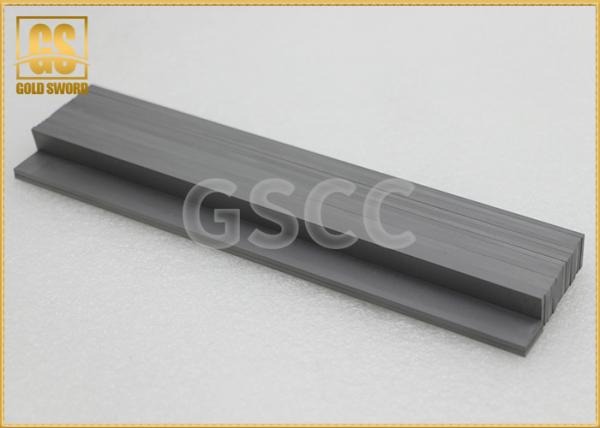

Cast Steel P20 Tungsten Carbide Blanks YC201 / YS25 / YT14 Punching Mould Tools
Cast Steel P20 Tungsten Carbide Blanks YC201 / YS25 / YT14 Punching Mould Tools
Cast Steel P20 Tungsten Carbide Blanks YC201 / YS25 / YT14 Punching Mould Tools
Cast Steel P20 Tungsten Carbide Blanks YC201 / YS25 / YT14 Punching Mould Tools
Cast Steel P20 Tungsten Carbide Blanks YC201 / YS25 / YT14 Punching Mould Tools
Cast Steel P20 Tungsten Carbide Blanks YC201 / YS25 / YT14 Punching Mould Tools
Specifications
Size :
Customized
Color :
Grey
Product Name :
Cemented Carbide Strips
Usage :
Wood Cutting
Packaging Details :
Carton packaging 15 kg per carton
Delivery Time :
25 days
Payment Terms :
TT
Price :
Negotiable
Brand Name :
Gold Sword
Place of Origin :
Zhuzhou，Hunan，China（mainland）
Description

K20 Tungsten Carbide strips blank High Wear Resistant Bars have high hard ness, wear-resistance, and resistance to bending,for cutting general wood or hard wood ,used for processing blades, wear resistance parts etc

GSGrade ISO Grade Density (g/cm3) Hardness (HRA) T.R.S (MPα) Grain Size Performance & Application Recommended
RX10 K20 14.6-15.0 90~90.5 2200~2400 Medium High hardness, suitable for roughing of iron, solid wood, dry wood or nonferrous metal, ceramic and other alloys.
RX20 K30 14.6-15.0 90~90.5 2600~2800 Fine High toughness, easy to be brazed without heat preservation. Suitable for rosewood, solid wood, pinewood, and other wood with a lot stammer.
RX10T K10 14.6-15.0 92.5~93 1800-2000 Ultrafine High hardness, suitable for finishing of iron, nonferrous metal, ceramic and other alloying, semifinishing of of hardwood, chipboard, MDF and HDF. Better to use silver soldering.
AB10 K40 13.8-14.2 87.5~88 2800~3000 Coarse High toughness, difficult to break tooth. Special used for finger jointing tool.

TPYE SPECIFICATION
T(mm) W(mm) L(mm)
STB424 3.2 19.1 152.4
STB428 3.2 22.2 152.4
STB432 3.2 25.4 152.4
STB436 3.2 28.7 152.4
STB440 3.2 31.8 152.4
STB448 3.2 38.1 152.4
STB46 3.2 4.8 152.4
STB48A 3.2 6.4 25.4
STB48B 3.2 6.4 31.8
STB48C 3.2 6.4 57.2
STB48D 3.2 6.4 76.2
STB48E 3.2 6.4 152.4
STB510 4.0 7.9 152.4
STB512 4.0 9.5 152.4
STB516 4.0 12.7 152.4
STB520 4.0 15.9 152.4
STB524 4.0 19.1 152.4
STB528 4.0 22.2 152.4
STB532 4.0 25.4 152.4
STB536 4.0 28.7 152.4
STB540 4.0 31.8 152.4
STB610 4.8 7.9 152.4
STB610A 4.8 7.9 76.2
STB612 4.8 9.5 152.4
STB612A 4.8 9.5 76.2
STB616 4.8 12.7 152.4
STB616A 4.8 12.7 76.2
STB620 4.8 15.9 152.4
STB620A 4.8 15.9 76.2
STB624 4.8 19.1 152.4
STB628 4.8 22.2 152.4
STB632 4.8 25.4 152.4
STB636 4.8 28.7 152.4
STB640 4.8 31.8 152.4
STB648 4.8 38.1 152.4
STB68 4.8 6.4 152.4
STB68A 4.8 6.4 76.2
STB812 6.4 9.5 152.4
STB812A 6.4 9.5 76.2
STB816 6.4 12.7 152.4
STB816A 6.4 12.7 76.2
STB820 6.4 15.9 152.4
STB820A 6.4 15.9 76.2
STB824 6.4 19.1 152.4
STB824A 6.4 19.1 76.2
STB828 6.4 22.2 152.4
STB832 6.4 25.4 152.4
STB836 6.4 28.7 152.4
STB840 6.4 31.8 152.4
STB848 6.4 38.1

152.4

Common specification sheet

(T) (W) (L)
mm mm mm
1~3 3.5 50~320
1~4 4 50~320
1~5 5 50~320
1~6 6 50~320
1~7 7 50~320
1~8 8 50~320
1~9 9 50~320
1~10 10 50~320
1~11 11 50~320
1~12 12 50~320
1~13 13 50~320
1~14 14 50~320
1~15 15 50~320
1~16 16 50~320
1~17 17 50~320
1~18 18 50~320
1~18 19 50~320
1~18 20 50~320

(T) (W) (L)
mm mm mm
1~18 21 50~320
1~18 22 50~320
1~18 24 50~320
1~18 25 50~320
1~18 26 50~320
1~18 28 50~320
1~18 30 50~320
1~18 32 50~320
1~18 35 50~320
1~18 40 50~320
1~18 30 50~320
1~18 32 50~320
1~18 35 50~320
1~18 40 50~320
1~18 45 50~320
1~18 50 50~320
1~18 55 50~320
1~18 60 50~320
