KU30F Tungsten Carbide EDM Block For Molding Punching Tools 10% Cobalt
KU30F Tungsten Carbide EDM Block For Molding Punching Tools 10% Cobalt
Specifications
Brand Name :
OED/OEM is available
Model Number :
Carbide block
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000kgs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
Tungsten carbide
Applicatin :
Carbide EDM block
ISO Grade :
KU30F
Length :
150
width :
100
Thickness :
50
TRS :
3800
Hardness :
HV 1620
Density :
14.42
Description

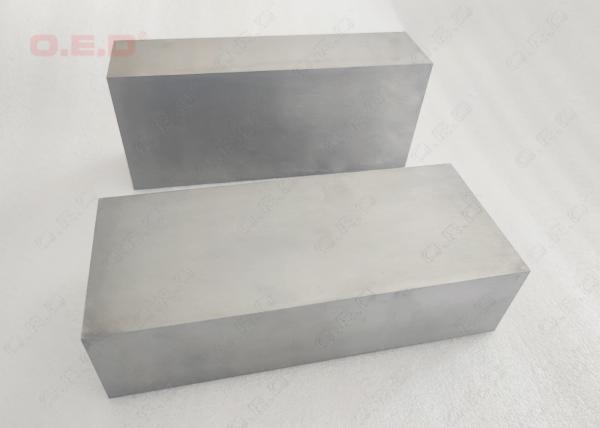

KU30F Tungsten Carbide EDM Block for molding punching tools 10% Cobalt

KU30F DATASHEET

Cobalt 10%

Density 14.4

T.R.S ≥3800

Hardness HV 1620

Grain size 0.6μm

Standard size EDM block:

Specification
(LXW) Size		 Tolerance Thickness and Tolerance Finished Ground
Tolerance
1.5~3 5~10 10~30 30~40 40~70
100x100 +2.0 +0.5 +0.5 +0.5 +0.5 +0.5 ±0.02
0 +0.2 +0.2 +0.3 +0.3 +0.3
105 x105 +2.0 +0.5 +0.5 +0.5 +0.5 +0.5 ±0.02
0 +0.2 +0.2 +0.3 +0.3 +0.3
110x110 +3.0 +0.5 +0.5 +0.5 +0.5 +0.5 ± 0.02
0 +0.2 +0.2 +0.3 +0.3 +0.3
120 x120 +3.0 +0.5 +0.5 +0.7 +0.7 +0.7 ±0.02
0 +0.2 +0.2 +0.4 +0.5 +0.5
150x150 +5.0 +0.5 +0.5 +0.7 +0.7 +0.7 ±0.02
0 +0.2 +0.2 +0.4 +0.5 +0.5
200x200 +8.0 +0.5 +0.5 +0.8 +0.8 +0.8 ± 0.02
0 +0.2 +0.2 +0.4 +0.5 +0.5
250 x250 +10.0 0 - - +0.5/+1.0 +0.5/+1.0 - ±0.5
300 x300 +10.0 0 - - +0.5/+1.0 +0.5/+1.0 - ±0.5

KU30F Tungsten Carbide EDM Block For Molding Punching Tools 10% CobaltKU30F Tungsten Carbide EDM Block For Molding Punching Tools 10% Cobalt
