MachineU > China Products > Tools & Hardware > Tool Parts
Non Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear Parts
Non Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear Parts
Non Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear Parts
Non Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear Parts
Non Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear Parts
Non Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear Parts
Non Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear Parts
Non Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear Parts
Specifications
Brand Name :
OED or OEM
Model Number :
Position pin
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
5-10USD/PC, special tools can be negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000pcs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
Tungsten carbide
ISO Grade :
K40
Application :
Position Pin
Hardness :
HRA 89.2
TRS :
2200
Density :
14.55
Outer diameter :
8
Length :
40
Roughness :
Ra 0.2
Description

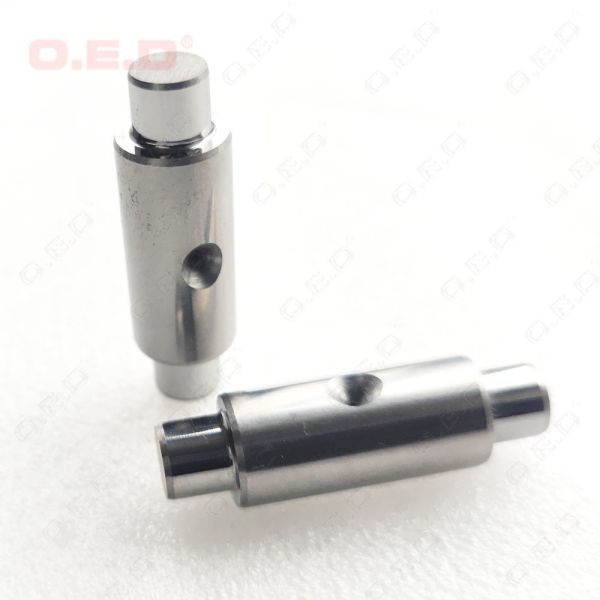

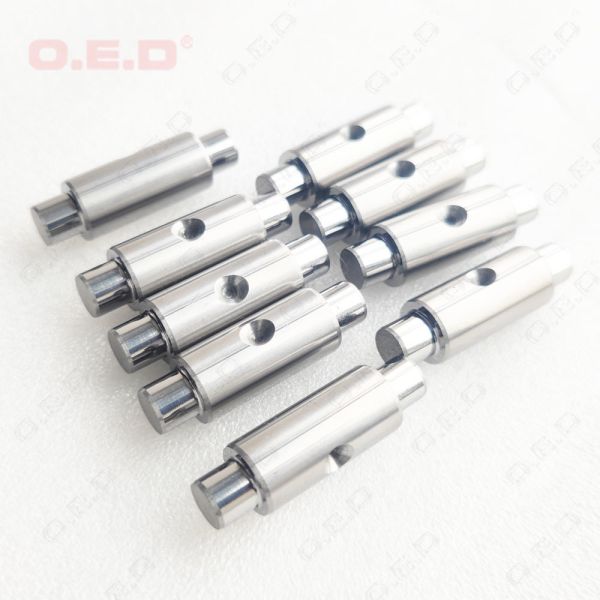

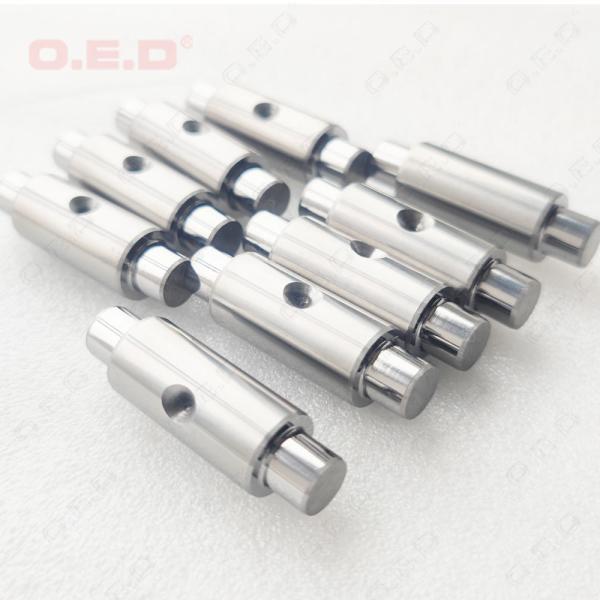

Non-Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear Parts


With Nickel as the binder, the tungsten carbide could be more corrosion-resistance and get non-magnetic performance. This position pin is made of 9% Nickel as the binder, it has high transverse rupture strength and also high wear-resistance performance.

General Dimensions:
Outer diameter 8mm/6mm
Length 40mm
Perpendicularity 0.05mm
Circularity 0.05mm

Surface roughness Ra 0.4, polished

Remove all sharp edges.
Non Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear PartsNon Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear PartsNon Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear Parts

Carbide Grade ON40

Corrosion-resistant grades Grade Ni Density Hardness
HRA		 Hardness
HV30		 T.R.S. Grain size
ON10 5.50 14.80 90.90 1480 ＞1450 Middle
ON20 6.00 14.80 90.80 1460 ＞1600 Middle
ON30 7.50 14.65 90.30 1410 ＞1800 Middle
ON40 9.00 14.55 89.20 1310 ＞2150 Middle
ON50 10.00 14.40 89.00 1300 ＞2300 Middle
ON60 11.00 14.20 88.50 1250 ＞2450 Middle
ON70 15.00 13.15 84.10 950 ＞2650 Middle


Non Magnetic 9% Nickel Tungsten Carbide ON40 Position Pin Nickel Wear Parts
we specialized in producing Punches, Ejector Pins and sleeves, Die Buttons, Bushes, Ejector Punches, Drill Rods, Ball Cages, Springs,Block Sets of many different standards
