140mm Tungsten Carbide Spray Nozzles High Hardness HRA 92
140mm Tungsten Carbide Spray Nozzles High Hardness HRA 92
140mm Tungsten Carbide Spray Nozzles High Hardness HRA 92
140mm Tungsten Carbide Spray Nozzles High Hardness HRA 92
140mm Tungsten Carbide Spray Nozzles High Hardness HRA 92
140mm Tungsten Carbide Spray Nozzles High Hardness HRA 92
140mm Tungsten Carbide Spray Nozzles High Hardness HRA 92
140mm Tungsten Carbide Spray Nozzles High Hardness HRA 92
Specifications
Brand Name :
OED or OEM
Model Number :
Nozzles
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
Small qty of amples are available.
Price :
110-150 USD/PC, special tools can be negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000pcs per month
Delivery Time :
Standard products in one week, special tools in 45 days
Packaging Details :
plastic box/box + Cartons
Material :
Tungsten carbide
ISO Grade :
K20
Application :
Carbide spray nozzles
Hardness :
HRA 92
TRS :
2400
Density :
14.80
Length :
140
OD :
19
Spray angle :
7°
Roughness :
Ra 1.6
Description

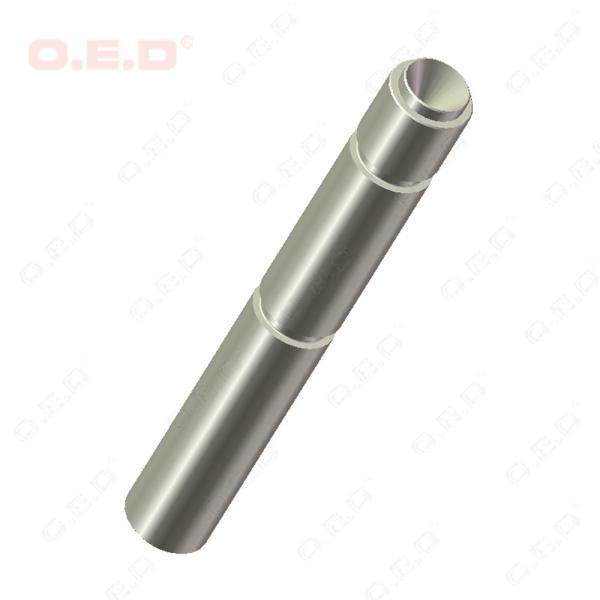

140mm Tungsten Carbide Spray Nozzles High Hardness Spray Nozzles HRA 92​

Long solid tungsten carbide spray nozzle. material YG8 with high hardness and wear resistance.


General Dimensions:

  • Length 140mm
  • OD 19mm
  • ID 4mm
  • Angle 7°
  • Perpendicularity 0.05mm
  • Circularity 0.05mm
  • The surface roughness all Ra 1.6, rough Ground

General Information of K20 Grade

  • Grain size: Fine/Middle
  • Cobalt: 8%
  • Hardness: HRA 92
  • T.R.S: 2400

Remove sharp edges.

Features:

  • Good Wear Resistance
  • Strong Impact Resistance performance
  • Better Surface Finish
  • High hardness


140mm Tungsten Carbide Spray Nozzles High Hardness HRA 92140mm Tungsten Carbide Spray Nozzles High Hardness HRA 92

Carbide Grade OK10F

Wear part grades Grade ISO Grade Co Density

Hardness

HRA

 T.R.S. Grain size
OK01UF K01-K05 3.00 15.10 93.50 2000 Ultra Fine
OK10F K10-K20 6.00 14.90 92.00 2000 Middle/Fine
OK30 K30 8.00 14.80 91.50 2200 Fine
OK40F K40 10.00 14.45 91.90 3400 Middle/Fine
OK50F K50 12.00 14.25 90.00 3500 Fine
OG10 G10 8.00 14.70 91.00 2100 Middle
OG20 G20 11.00 14.40 89.00 2400 Middle
OG30 G30 15.00 14.20 86.70 2800 Middle
OG40 G40 20.00 13.65 85.00 3000 Middle
OG50 G50 25.00 13.20 84.20 3200 Middle






140mm Tungsten Carbide Spray Nozzles High Hardness HRA 92


140mm Tungsten Carbide Spray Nozzles High Hardness HRA 92
