Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring
Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring
Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring
Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring
Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring
Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring
Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring
Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring
Specifications
Delivery Time :
7-15 Days
Model Number :
A/B/C/D/E/F/G/H/J/K/L/M/N
Cutting Diameter :
1/4" 1/8" 1/12"
Sample :
Free
Head Hardness :
70-90HRA
Place of Origin :
Sichuan, China
Head Diameter :
Customized
Cut type :
double cut
Packaging Details :
Plastic or aluminum box
MOQ :
100 pcs
Material :
100% Pure Tungsten carbide
Brand Name :
KINGTOOLS
Payment Terms :
T/T
Certification :
ISO9001-2008
Application Direction :
Metal deburring, polishing, etc
Welding method :
Flat bottomed silver welding
Price :
CN¥8.36-27.79
Supply Ability :
＞300000 Pieces per Month
MOQ :
100Piece
Product name :
Tungsten carbide burr
Description
Tungsten Carbide Rotary Files 6mm Shank Heavy Duty for Steel Aluminum Brass Grinding and Carving High Performance Tools
Tungsten Carbide Rotary Burrs 1/4 Inch Shank for Die Grinder
Sintered Tungsten Carbide Rotary File Metal Deburring 1/4" Shank Polished Burrs OEM Customizable. Factory Direct RTS OEM Tungsten Carbide Rotary Burrs 6mm/1/4" Sintered Carbide Double Cut Polished Surface Metal Deburring Bits.
Product Overview
Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring
This professional 10-piece tungsten carbide rotary burr set features 1/8" shank diameter and is designed for precision metal polishing, woodworking, and engraving applications. Made from high-quality tungsten carbide with steel shanks, these burrs deliver exceptional performance and durability.
Technical Specifications
Available Sizes:
  • Head Diameter: 2.35mm, 3mm, 6mm, 6.35mm, 8mm, 10mm, 12mm, 12.7mm, 14mm, 16mm, 20mm, 25mm
  • Shank Diameter: 3mm, 6mm, 8mm
  • Extended lengths available upon request
Tolerances:
  • Head diameter: +0.3 to +0.5mm
  • Head cutting part: +0.5 to +1.0mm
  • Shank diameter: +0 to +0.04mm
  • Total length: ±0.1mm
Set Configurations:
  • Available in 3, 5, 6, 8, 10, 12, or 14-piece sets
  • Packaging options: Aluminum cases or plastic sets
  • Custom configurations available to meet specific requirements
Applications:
Milling, weld dressing, deburring, cutting holes, surface work, and precision machining
Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring
Product Details
10-Piece 2.35*6mm Carbide Burr Set
  • Product Name: Tungsten Steel Hard Carbide
  • Cutter Patterns: Double Cut, Single Cut, Aluma Cut
  • Suitable For: Drilling, metal carving, engraving, polishing
Set Dimensions:
  • Package Size: 5 * 4 * 0.5 inches
  • Individual Burr: 2.35*6mm (0.12*0.24 inch approximately)
  • Total Length: 45-50mm
  • Cutting Diameter: 1/4"
  • Shank Length: 35mm
  • Shank Diameter: 1/8"
Performance Specifications:
  • Suggested RPM: 25,000-50,000
  • Maximum RPM: 70,000
  • Hardness: HRA ≥ 85
Key Features
  • Processes all types of metal (including hardened steel) and non-metal materials (marble, jade, bone)
  • Handles materials with hardness up to HRA 85
  • High production efficiency with reduced labor intensity
  • Simple and convenient to use
  • Compatible with pneumatic and electric tools
Important Note: For optimal performance with pneumatic or electric tools, maintain speed between 1,000-3,700 RPM and ensure the tool is firmly clamped.

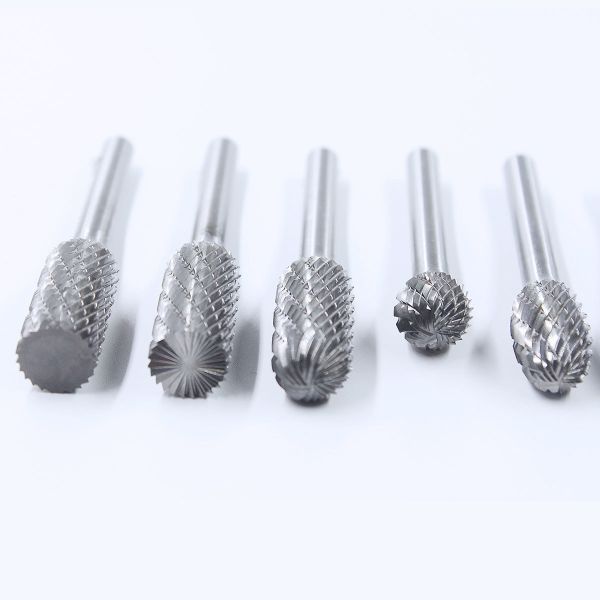

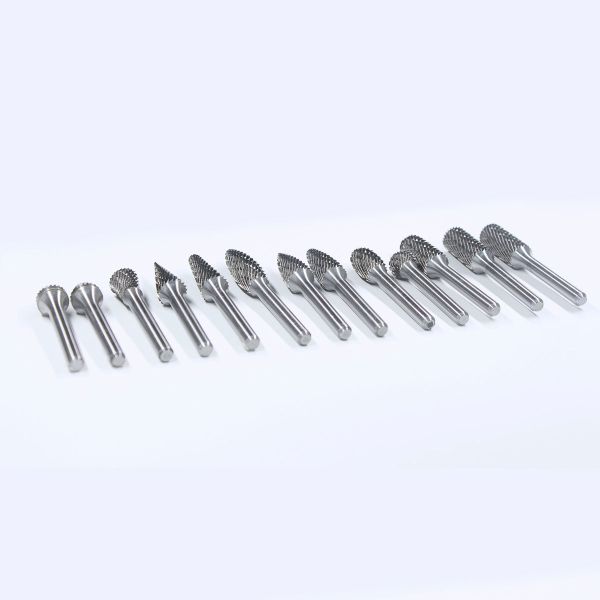

Product Gallery
Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring
Burr Types & Specifications
Name Type Cut Material Product Process Head Hardness LOGO
Cylindrical Shape Burr A Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Cylindrical End Cut Burr B Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Cylindrical Radius End C Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Ball Shape Burr D Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Oval Shape Burr E Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Tree Shape Radius End F Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Tree Pointed Ends Burr G Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Flame Shape Burr H Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Cone Shape With 60° J Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Cone Shape With 90° K Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Taper Radius End Burr L Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Cone Burr M Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Inverted Cone Burr N Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Disc Type Burr W Standard/Single/Double/Aluma Tungsten Carbide/YG7/TCT CNC 90-91HRA available
Tungsten Carbide Grades
China Grade ISO Grade Density (g/cm³) Hardness (HRA) TRS (Mpa)
YG6 K20 14.95 91 1800
YG6X K10 14.95 92 1800
YKM6A K10 14.95 92.5 1800
YG8 K30 14.7-14.8 90 1950
YT5 P30 13 90.8 1900
YT14 P10-20 11.5 91.5 1500
YT15 P10-20 11.3 91.8 1450
YW1 M10-20 13.1 91.5 1600
YW2 M10-20 13.1 91 1600
YS25 P25 12.8 91.5 1900
YC30S P30 12.8 91 2000
Recommended Operating Speeds
Burr Size Recommended RPM
1.6mm or 1/16" 25,000 - 35,000
2.35mm or 3/32" 25,000 - 35,000
3mm or 1/8" 25,000 - 35,000
6mm or 1/4" 25,000 - 35,000
12mm or 1/2" 25,000 - 35,000
16mm or 5/8" 25,000 - 35,000
Cutting Pattern Guide
  • Single-cut burs: Ideal for general purpose work with good material removal
  • Double-cut burs: Produce smaller chips for greater control on stainless steels and ferrous materials
  • Aluma-cut burs: Wide flute design prevents loading on nonferrous and soft materials
  • Standard-cut burs: Widely used for fine finishing applications
