Specifications
Brand Name :
KINGTOOLS
Model Number :
A/B/C/D/E/F/G/H/J/K/L/M/N
Certification :
ISO9001-2008
Place of Origin :
Sichuan, China
MOQ :
100 pcs
Price :
CN¥8.36-27.79
Payment Terms :
T/T
Supply Ability :
＞300000 Pieces per Month
Delivery Time :
7-15 Days
Packaging Details :
Plastic or aluminum box
Product name :
Tungsten carbide burr
Welding method :
Flat bottomed silver welding
Head Diameter :
3-25 mm
Material :
100% Pure Tungsten carbide
Cutting Diameter :
1/4" 1/8" 1/12"
Head Hardness :
70-90HRA
Processing Hardness :
HRA85
Tolerance Cutting Part :
+0.5 to 1.0mm
Tolerance Shank Diameter :
+0.5to +0.04mm
Sample :
Free
Application Direction :
Metal deburring, polishing, etc
Description
Sintered Tungsten Carbide Rotary File Metal Deburring 1/4" Shank Polished Burrs OEM Customizable
Factory Direct RTS OEM Tungsten Carbide Rotary Burrs 6mm/1/4" Sintered Carbide Double Cut Polished Surface Metal Deburring Bits
Product Overview
Sintered Tungsten Carbide Rotary Burr with 1/4

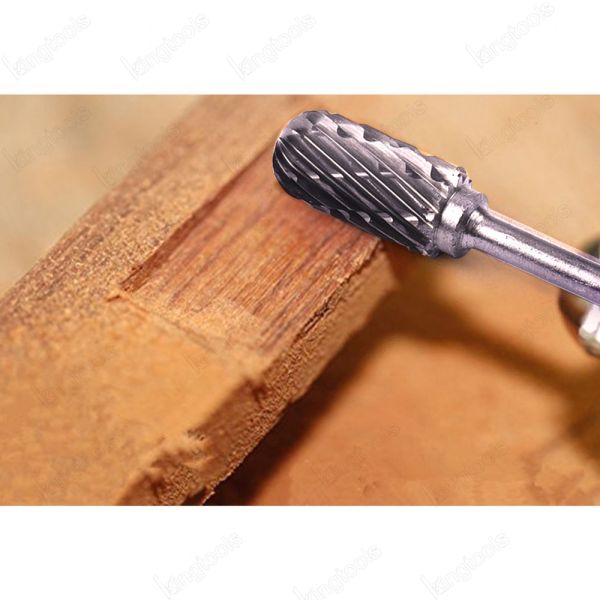

This professional 10-piece tungsten carbide rotary burr set features 1/8" shank diameter and is designed for precision metal polishing, woodworking, and engraving applications. Made from high-quality tungsten carbide with steel shanks, these burrs deliver exceptional performance and durability.
Technical Specifications
Available Sizes
  • Head Diameter: 2.35mm, 3mm, 6mm, 6.35mm, 8mm, 10mm, 12mm, 12.7mm, 14mm, 16mm, 20mm, 25mm
  • Shank Diameter: 3mm, 6mm, 8mm
  • Extended lengths available upon request
Tolerances
  • Head diameter: +0.3 to +0.5mm
  • Head cutting part: +0.5 to +1.0mm
  • Shank diameter: +0 to +0.04mm
  • Total length: ±0.1mm

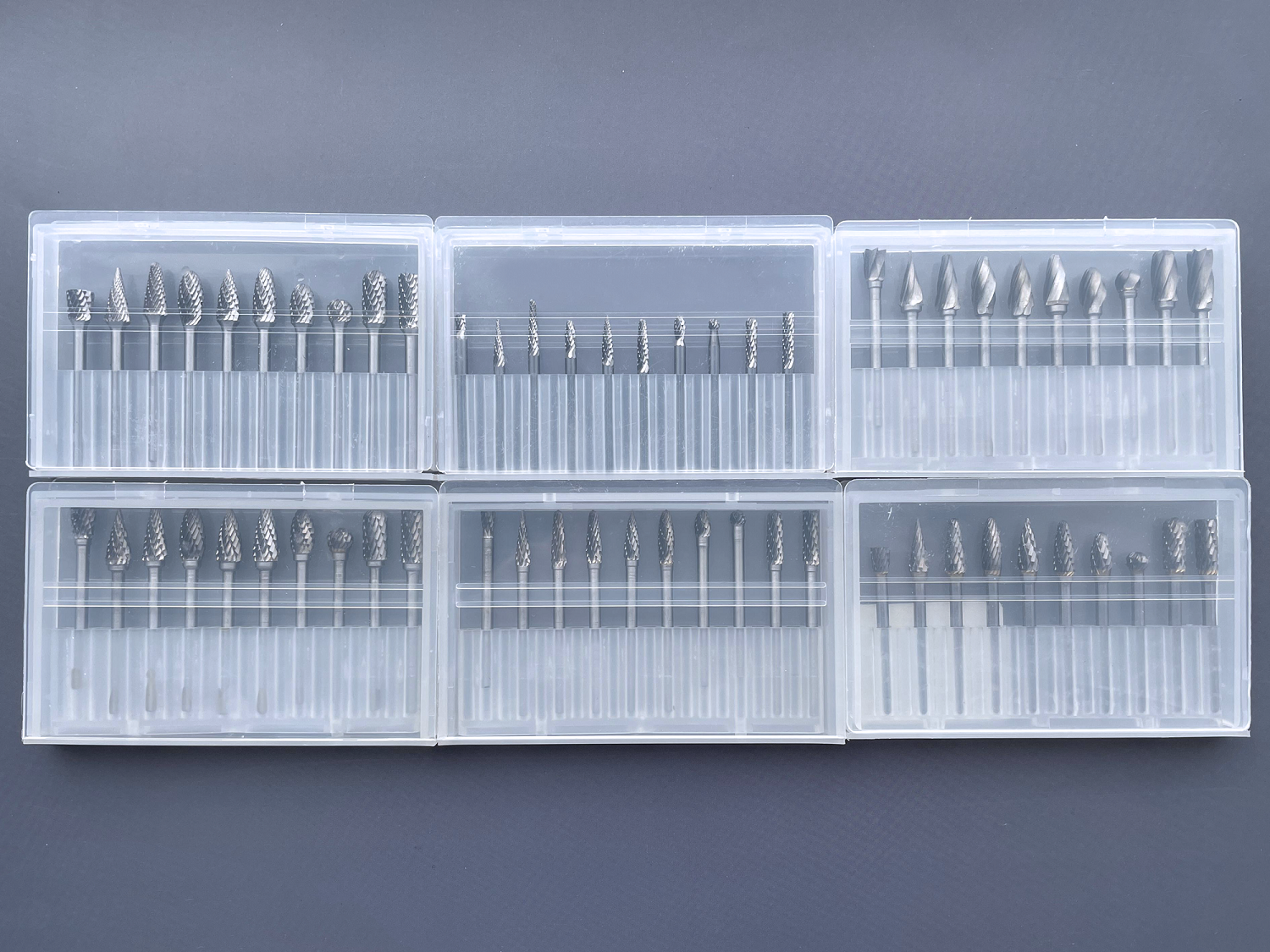

Set Configurations
  • Available in 3, 5, 6, 8, 10, 12, or 14-piece sets
  • Packaging options: Aluminum cases or plastic sets
  • Custom configurations available to meet specific requirements
Applications
Milling, weld dressing, deburring, cutting holes, surface work, and precision machining
Sintered Tungsten Carbide Rotary Burr with 1/4
Product Details

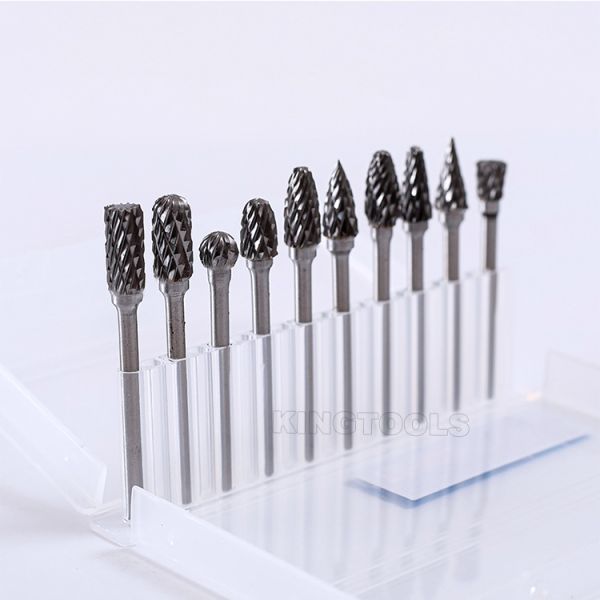

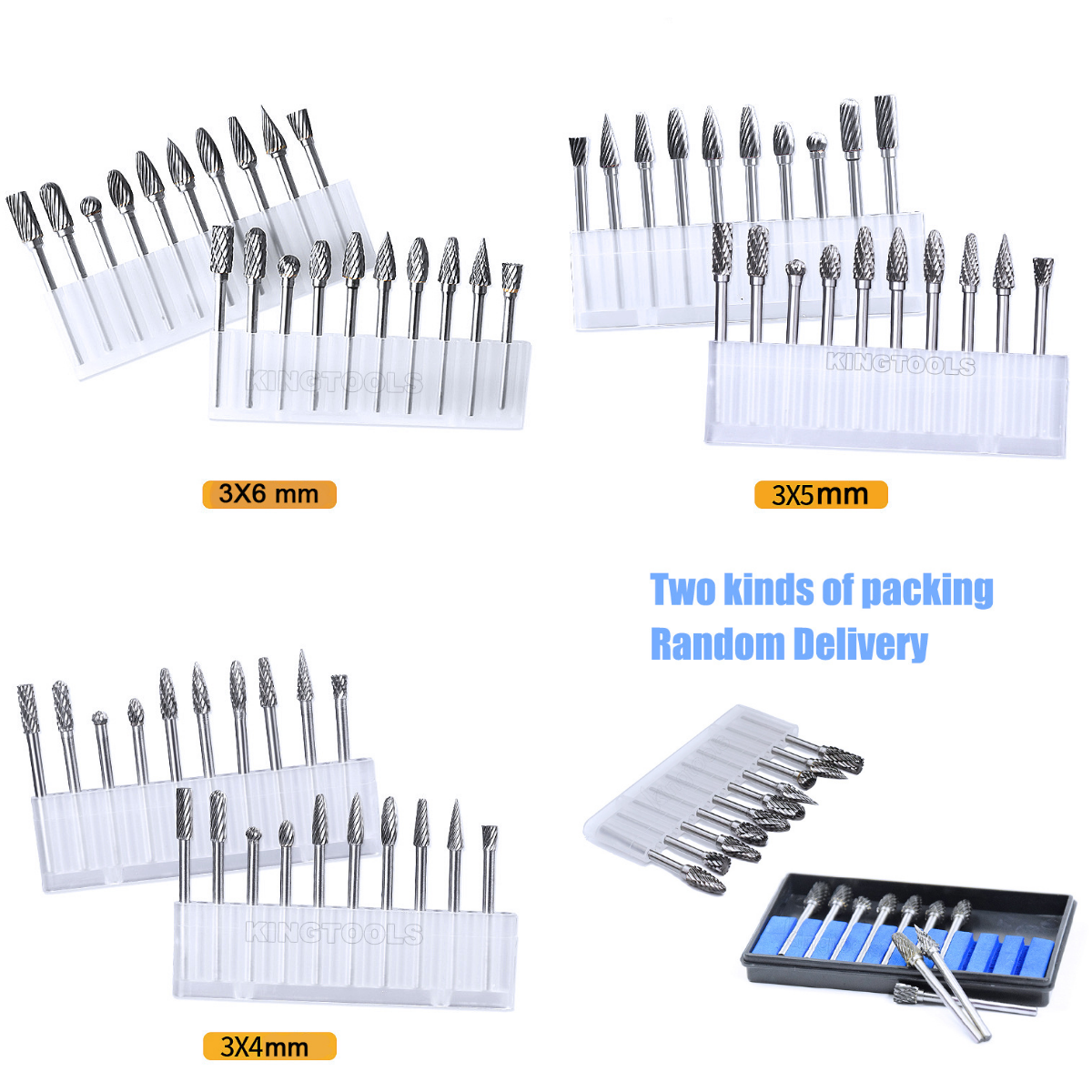

10-Piece 2.35*6mm Carbide Burr Set
  • Product Name: Tungsten Steel Hard Carbide
  • Cutter Patterns: Double Cut, Single Cut, Aluma Cut
  • Suitable For: Drilling, metal carving, engraving, polishing

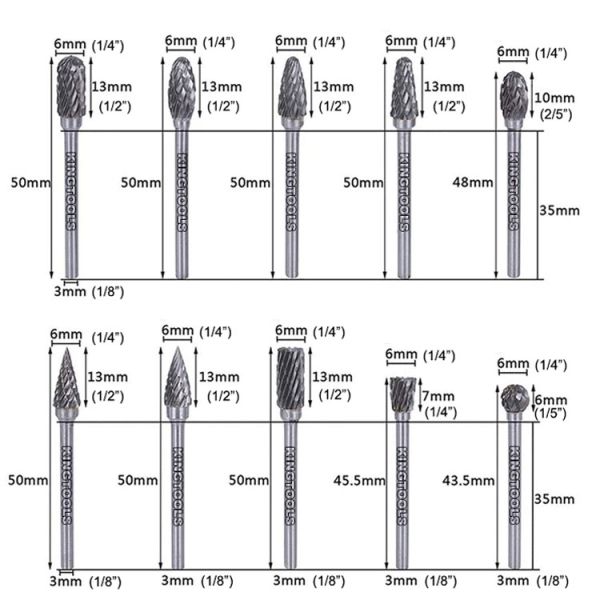

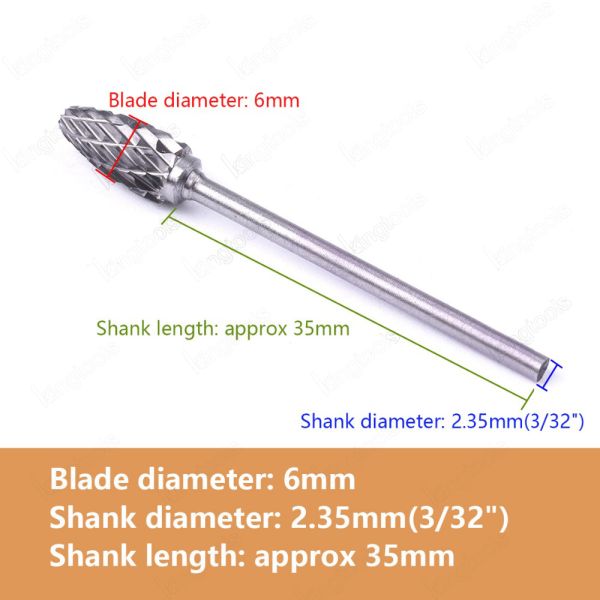

Set Dimensions
  • Package Size: 5 * 4 * 0.5 inches
  • Individual Burr: 2.35*6mm (0.12*0.24 inch approximately)
  • Total Length: 45-50mm
  • Cutting Diameter: 1/4"
  • Shank Length: 35mm
  • Shank Diameter: 1/8"
Performance Specifications
  • Suggested RPM: 25,000-50,000
  • Maximum RPM: 70,000
  • Hardness: HRA ≥ 85

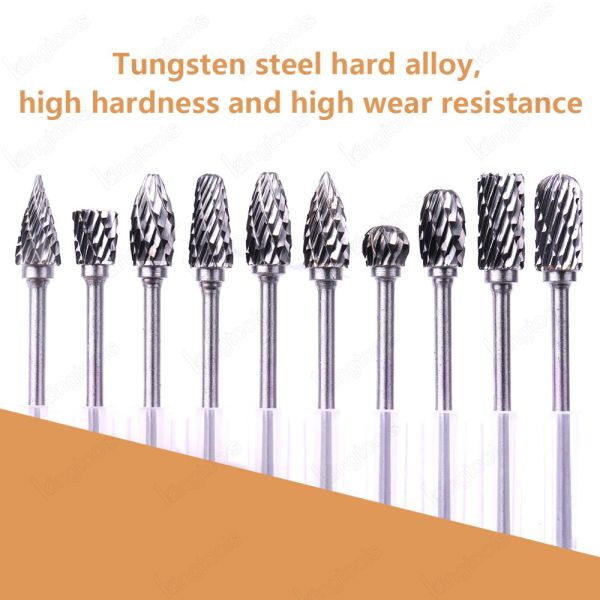

Key Features
  • Processes all types of metal (including hardened steel) and non-metal materials (marble, jade, bone)
  • Handles materials with hardness up to HRA 85
  • High production efficiency with reduced labor intensity
  • Simple and convenient to use
  • Compatible with pneumatic and electric tools
Important Note: For optimal performance with pneumatic or electric tools, maintain speed between 1,000-3,700 RPM and ensure the tool is firmly clamped.
Product Gallery
Sintered Tungsten Carbide Rotary Burr with 1/4 Sintered Tungsten Carbide Rotary Burr with 1/4 Sintered Tungsten Carbide Rotary Burr with 1/4 Sintered Tungsten Carbide Rotary Burr with 1/4 Sintered Tungsten Carbide Rotary Burr with 1/4 Sintered Tungsten Carbide Rotary Burr with 1/4 Sintered Tungsten Carbide Rotary Burr with 1/4 Sintered Tungsten Carbide Rotary Burr with 1/4 Sintered Tungsten Carbide Rotary Burr with 1/4 Sintered Tungsten Carbide Rotary Burr with 1/4 Sintered Tungsten Carbide Rotary Burr with 1/4

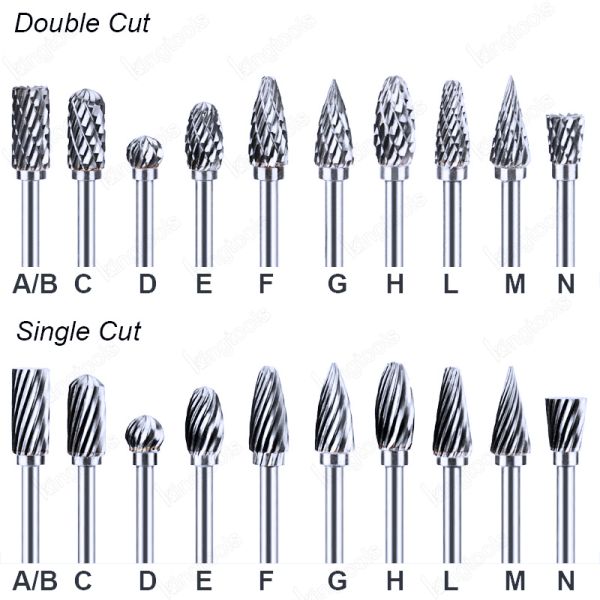

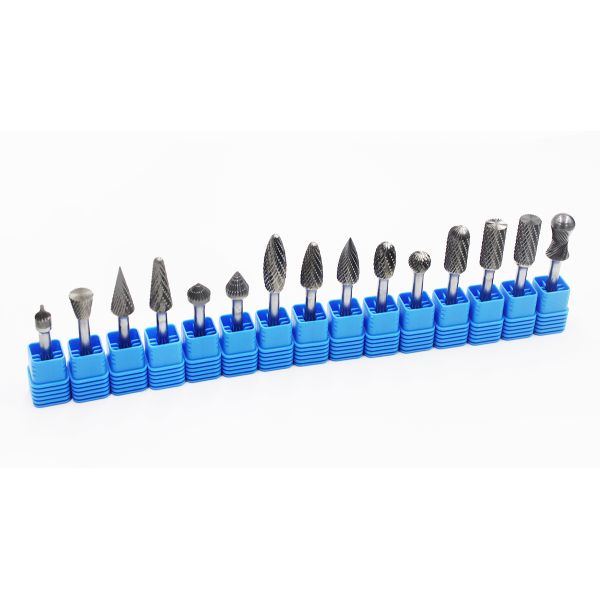

Burr Types & Specifications
Name Type Cut Material Product Process Head Hardness LOGO
Cylindrical Shape BurrAStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Cylindrical End Cut BurrBStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Cylindrical Radius EndCStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Ball Shape BurrDStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Oval Shape BurrEStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Tree Shape Radius EndFStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Tree Pointed Ends BurrGStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Flame Shape BurrHStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Cone Shape With 60°JStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Cone Shape With 90°KStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Taper Radius End BurrLStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Cone BurrMStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Inverted Cone BurrNStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Disc Type BurrWStandard/Single/Double/AlumaTungsten Carbide/YG7/TCTCNC90-91HRAavailable
Tungsten Carbide Grades
China Grade ISO Grade Density (g/cm³) Hardness (HRA) TRS (Mpa)
YG6K2014.95911800
YG6XK1014.95921800
YKM6AK1014.9592.51800
YG8K3014.7-14.8901950
YT5P301390.81900
YT14P10-2011.591.51500
YT15P10-2011.391.81450
YW1M10-2013.191.51600
YW2M10-2013.1911600
YS25P2512.891.51900
YC30SP3012.8912000
Recommended Operating Speeds
Burr Size Recommended RPM
1.6mm or 1/16"25,000 - 35,000
2.35mm or 3/32"25,000 - 35,000
3mm or 1/8"25,000 - 35,000
6mm or 1/4"25,000 - 35,000
12mm or 1/2"25,000 - 35,000
16mm or 5/8"25,000 - 35,000
Cutting Pattern Guide
  • Single-cut burs: Ideal for general purpose work with good material removal
  • Double-cut burs: Produce smaller chips for greater control on stainless steels and ferrous materials

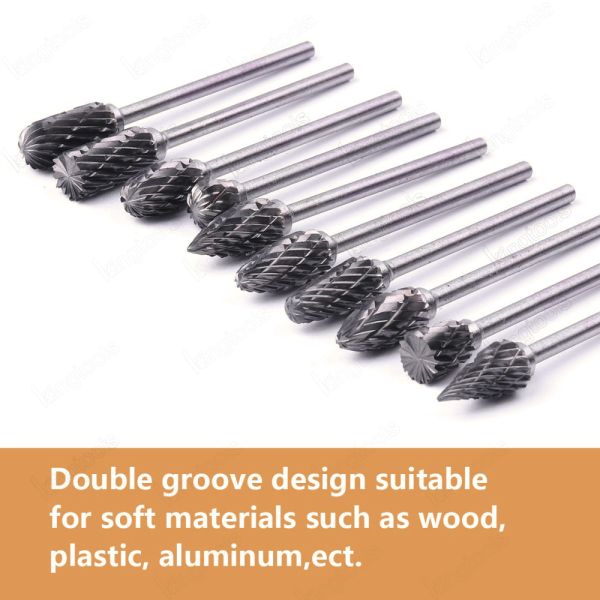

  • Aluma-cut burs: Wide flute design prevents loading on nonferrous and soft materials
  • Standard-cut burs: Widely used for fine finishing applications
