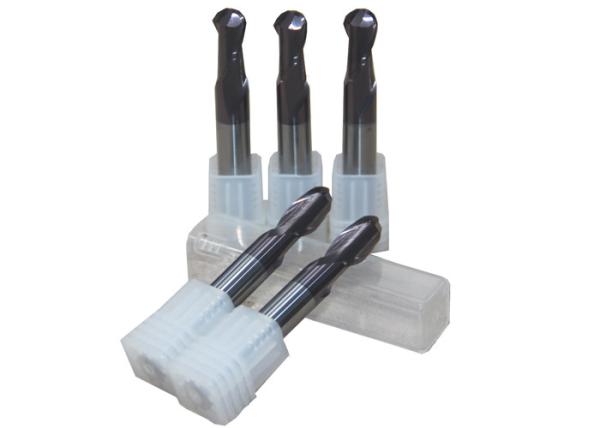

Cnc Carbide Ball Nose End Mill Cutter Four Flutes TiAlN Nano Coating
Cnc Carbide Ball Nose End Mill Cutter Four Flutes TiAlN Nano Coating
Cnc Carbide Ball Nose End Mill Cutter Four Flutes TiAlN Nano Coating
Cnc Carbide Ball Nose End Mill Cutter Four Flutes TiAlN Nano Coating
Specifications
Model Number :
E550 MAX
Place of Origin :
MADE IN CHINA
Brand Name :
KTC
Certification :
CCC
MOQ :
10 pcs
Price :
Negotiation
Packaging Details :
1PC/ PVC Packing, 10pcs PVC Packing/Pack...
Delivery Time :
1-35days
Payment Terms :
T/T, L/C,Paypal...
Supply Ability :
10000pcs/week
Product Name :
End Mills
Raw Material :
WF25 / K40
Coating :
TiAlN-nano
Color :
Violet
Hardness :
>92HRA
Cutting Diameter :
Based on the Flute Length
Flutes No. :
4 Flutes
Grain size :
0.6 μm
A.O.L :
50mm-150mm
Flexural Strength :
4100mpa
Description

Cnc Carbide Ball Nose End Mill Cutter Four Flutes TiAlN Nano Coating

KTC Tungsten Carbide General Processing End Mills

An end mill is a type of milling cutter, a cutting tool used in industrial milling applications. It is distinguished from the drill bit in its application, geometry, and manufacture. While a drill bit can only cut in the axial direction, a milling bit can generally cut in all directions, though some cannot cut axially.
End mills are used in milling applications such as profile milling, tracer milling, face milling, and plunging.

Specifications

Raw Material WF25 / K40
WC 88%
Co 12%
TRS >4100N/mm2
Hardness >92HRA
A.O.L 50mm-150mm
Grain size 0.6 μm
Upto HRC58
Flutes No 4F
Coating TiAlN-nano
Suitable for Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials

Coating:

Item TiAlN-nano
Hardness(HV): 2800
Thickness(UM): 2.5-3
Oxidation Temp(°): 800
frictional Coefficient: 0.3
Color: Violet

Standard Sizes

Size Flute Length of End Mills(mm)
Flat end Ball Nose Round nose
D1*D4*50 3 2 3
D1.5*D4*50 4 3 4
D2*D4*50 5 4 5
D2.5*D4*50 6 5 6
D3*D4*50 8 6 8
D3*D3*50 8 6 8
D3.5*D4*50 9 7 9
D4*D4*50 10 8 10
D1*D6*50 3 2 3
D1.5*D6*50 4 3 4
D2*D6*50 5 4 5
D2.5*D6*50 6 5 6
D3*D6*50 8 6 8
D3.5*D6*50 9 7 9
D4*D6*50 10 8 10
D6*D6*50 13 10 13
D6*D6*50 15 12 15
D7*D8*60 17 14 17
D8*D8*60 20 16 20
D10*75 25 20 25
D12*75 30 24 30
D14*100 45 28 35
D16*100 45 32 40
D18*100 45 36 40
D20*100 45 40 40

Flute Length of Extended End Mills(mm)
D3*D4*75 12 6 12
D4*D4*75 16 8 14
D5*D6*75 18 10 15
D6*D6*75 24 12 20
D8*75 25 16 25
D3*D4*100 12 6 15
D4*D4*100 20 8 15
D5*D6*100 20 10 20
D6*D6*100 30 12 25
D8*D8*100 35 16 30
D10*100 40 20 30
D12*100 45 24 35
D6*D6*150 45 12 40
D8*D8*150 50 16 45
D10*150 55 20 50
D12*150 55 24 55
D14*150 60 28 60
D16*150 70 32 65
D18*150 70 36 70
D20*150 70 40 70
