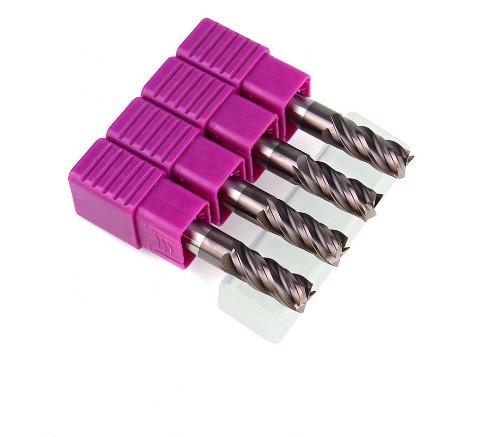

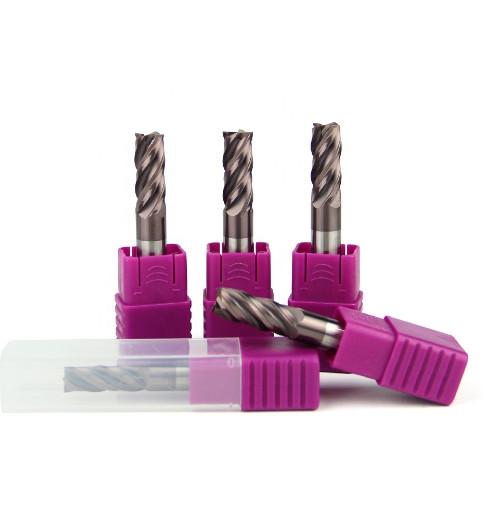

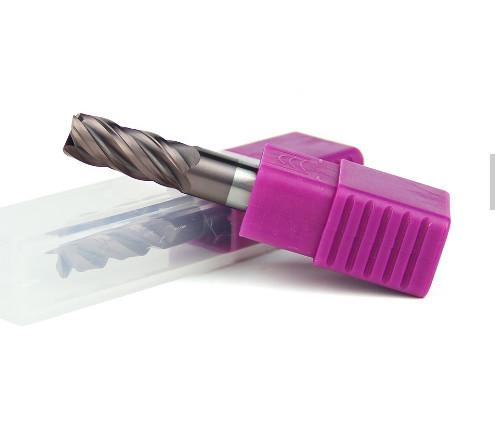

HRC60 Solid Tungsten Carbide End Mill Milling Cutter PML-4F-D1.0S, PML-4EL-D3.0-G
HRC60 Solid Tungsten Carbide End Mill Milling Cutter PML-4F-D1.0S, PML-4EL-D3.0-G
HRC60 Solid Tungsten Carbide End Mill Milling Cutter PML-4F-D1.0S, PML-4EL-D3.0-G
HRC60 Solid Tungsten Carbide End Mill Milling Cutter PML-4F-D1.0S, PML-4EL-D3.0-G
HRC60 Solid Tungsten Carbide End Mill Milling Cutter PML-4F-D1.0S, PML-4EL-D3.0-G
HRC60 Solid Tungsten Carbide End Mill Milling Cutter PML-4F-D1.0S, PML-4EL-D3.0-G
HRC60 Solid Tungsten Carbide End Mill Milling Cutter PML-4F-D1.0S, PML-4EL-D3.0-G
HRC60 Solid Tungsten Carbide End Mill Milling Cutter PML-4F-D1.0S, PML-4EL-D3.0-G
Specifications
Brand Name :
SHIELD
Model Number :
HRC60 solid tungsten carbide end mill types of milling cutter
Certification :
ISO9001:2008
Place of Origin :
Hunan China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C D/A D/P T/T Western Union
Supply Ability :
500,000 per month
Delivery Time :
5-35 workdays after received the payment
Packaging Details :
Plastic box packed for each piece, carton boxes outside for HRC 60 solid tungsten carbide end mills types of milling cutter for steel
Product name :
HRC60 solid tungsten carbide end mill types of milling cutter
Material :
WC: 0.6μm grain size 12.0% Co
Type :
Solid cemented carbide end mill
Diameter :
D1.0~D25.0mm
Overlength :
50~200mm
Flute :
Single, 1,2,4 flutes
Coating :
TiAIN, NaNo, TiAlCrN
HRC :
45/55/60/65 degrees
Suitable for :
Aluminum processing, copper, cast iron, carbon steel
Controlling mode :
CNC Tooling System, CNC System, CNC machine
Description


SHIELD HRC60 solid tungsten carbide end mill types of milling cutter for steel manufacturer


Product Name HRC60 solid tungsten carbide flat end mill 8*20*60*8D*4F
Features Variable helix angle and unequal flute spacing
Processing Type Metal
Precision within 0 ~-0.01mm
HRC 60
Suitable For Stainless Steel, Alloy steel, Die steel, Pre-hardened Steel, Inconel
Machine Type CNC Milling Machine
Flutes 4
Specification 8*20*60*8D*4F
Co 12%
TRS Min(N/MM²) 4200
HRA 92.2-93


Super raw material

HRC45 HRC55 HRC60 HRC65
YG10X YG10.2 &WF25(Taiwan) K44 & K40 (German) H10F (Sweden)

Grain Size:0.7um
Co:10 %
Flexural strength:
3320N/mm2

Grain Size:0.6um
Co:10 %
Flexural strength:
4000N/mm2

Grain Size:0.5um
Co:12 %
Flexural strength:
4300N/mm2

Grain Size:0.5um
Co:10 %
Flexural strength:
4300N/mm2


Super coating

Item AlTiN TiAIN TiSiN nACo
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Black Violet Copper

Blue

HRC60 Solid Tungsten Carbide End Mill Milling Cutter PML-4F-D1.0S, PML-4EL-D3.0-G
