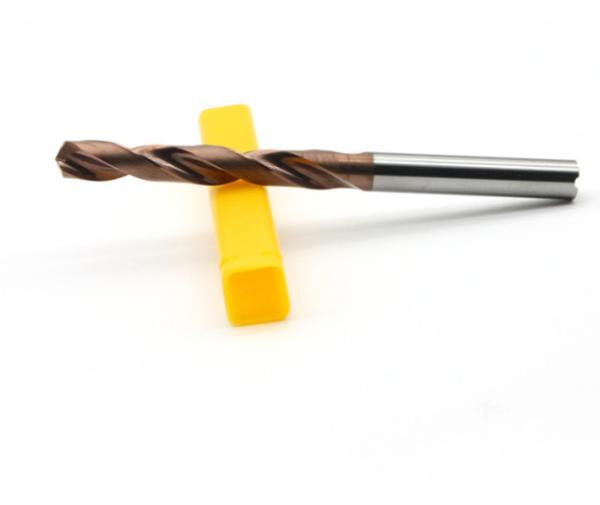

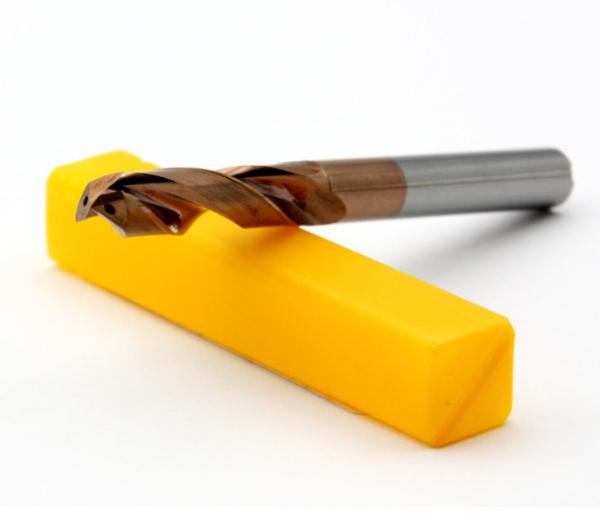

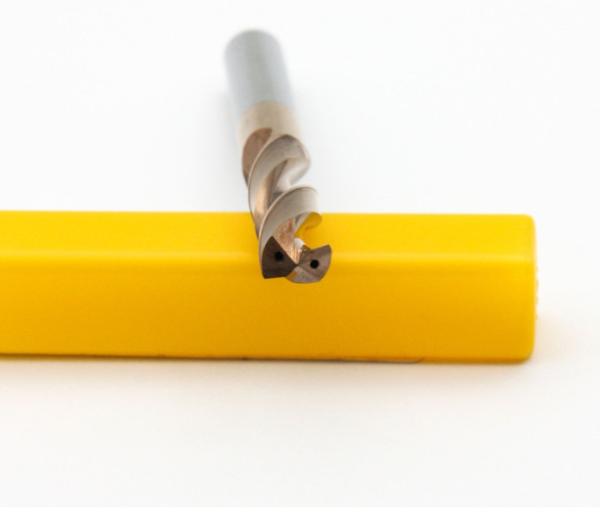

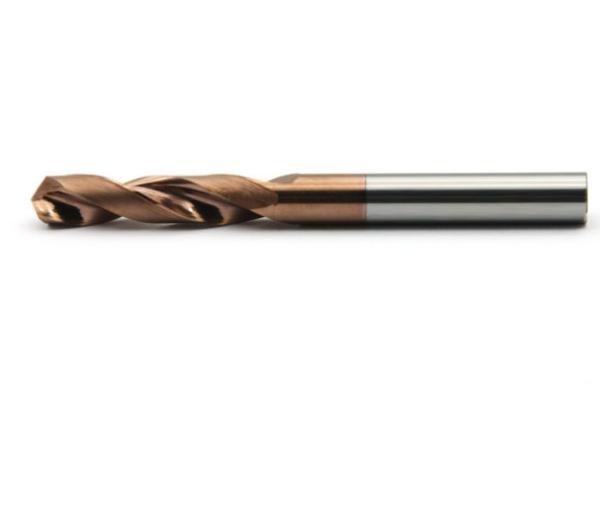

Solid Carbide Internal Coolant Drill Bit Cemented Carbide Products HRC55 Drilling Tools
Solid Carbide Internal Coolant Drill Bit Cemented Carbide Products HRC55 Drilling Tools
Solid Carbide Internal Coolant Drill Bit Cemented Carbide Products HRC55 Drilling Tools
Solid Carbide Internal Coolant Drill Bit Cemented Carbide Products HRC55 Drilling Tools
Solid Carbide Internal Coolant Drill Bit Cemented Carbide Products HRC55 Drilling Tools
Solid Carbide Internal Coolant Drill Bit Cemented Carbide Products HRC55 Drilling Tools
Solid Carbide Internal Coolant Drill Bit Cemented Carbide Products HRC55 Drilling Tools
Solid Carbide Internal Coolant Drill Bit Cemented Carbide Products HRC55 Drilling Tools
Specifications
Brand Name :
SHIELD
Model Number :
GD series general machining internal collant straight shank drill bit GD03-0200
Certification :
ISO9001:2008
Place of Origin :
Hunan China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
500,000 per month
Delivery Time :
5-35 workdays
Packaging Details :
First Protective sleeve for each one. then put into plastic box. then put ten into paper box
Type :
solid carbide internal coolant drill bits with straight shank
Size :
Customer's Request,OEM Accepted D1:2.0-2.3MM
Material :
100% Virgin Tungsten Carbide
Grade :
KDG3013
Usage :
drilling
Application :
Suitable for high efficiency drilling in a variety of materials e.g steel, stainless steel, cast iron
Description

Solid Carbide Internal Coolant Drill Bit for HRC55 drilling tools for general machining GD03-0200S, GD05-0230,

MAIN FEATURES

1. Use high-quality tungsten material, high-precision imported Germany Walter CNC machine processing, so, the drills have high centering ability, can get a stable dimensional accuracy and good surface quality; suitable for processing system excellent rigidity occasions.

2. Application range: Versatile, for high-efficiency machining in a variety of material e.g. steel, stainless steel, cast iron.

3. Linear cutting edge with high strength.

4. Simulation in combination with testing for superior overall performance.

5. Professional after treatment for coating ensures low-resistance high-efficiency machining.

6. Double edge-line design for improved machining stability.

SPECIFICATIONS

Specification(mm) Item Code
Cutting Diameter(D) Cutting Length(L1) Shank Diameter(D) Overall Length(L) Flutes Uncoating Coating
3.3-3.7 20 6 62 2F D1201-0601 D1201-0601T
3.8-4 .0 24 6 62 2F D1201-0602 D1201-0602T
4.1-4.7 24 6 66 2F D1201-0603 D1201-0603T
4.8-6.0 28 6 66 2F D1201-0604 D1201-0604T
6.1-7.0 34 8 79 2F D1201-0801 D1201-0801T
7.1-8.0 41 8 79 2F D1201-0802 D1201-0802T
8.1-10 47 10 89 2F D1201-1001 D1201-1001T
10.1-12 55 12 102 2F D1201-1201 D1201-1201T
12.1-14 60 14 107 2F D1201-1401 D1201-1401T
14.1-16 65 16 115 2F D1201-1601 D1201-1601T
16.5-18 73 18 123 2F D1201-1801 D1201-1801T
18.5-20 79 20 131 2F D1201-2001 D1201-2001T
