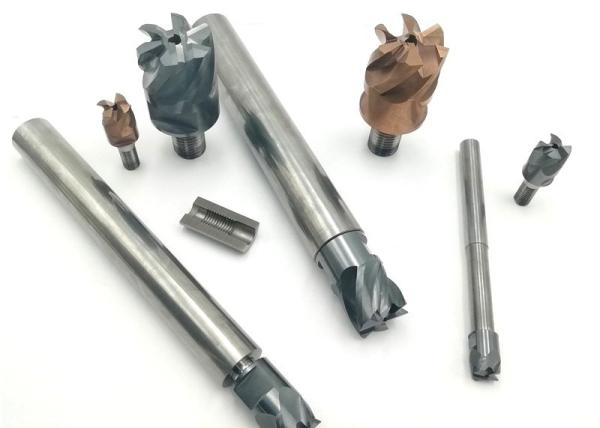

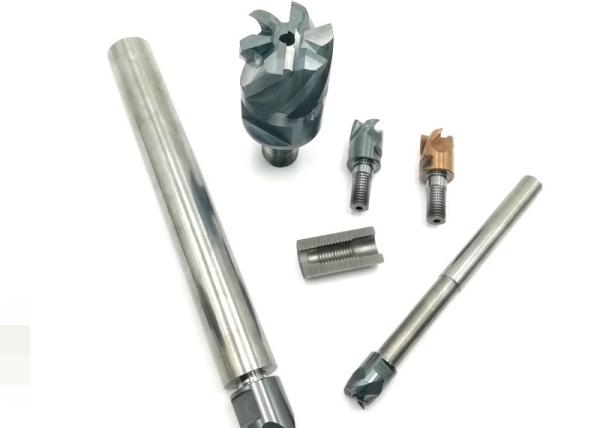

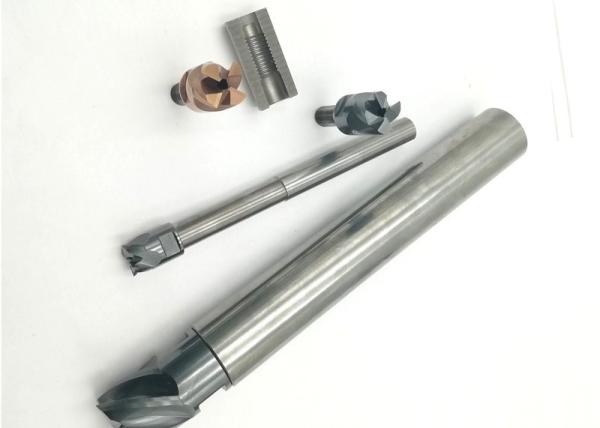

Anti Vibration High Pressure 400mm Milling Tool Holder
Anti Vibration High Pressure 400mm Milling Tool Holder
Anti Vibration High Pressure 400mm Milling Tool Holder
Anti Vibration High Pressure 400mm Milling Tool Holder
Anti Vibration High Pressure 400mm Milling Tool Holder
Anti Vibration High Pressure 400mm Milling Tool Holder
Specifications
Brand Name :
BENEMETAL
Model Number :
DIA08MM-DIA32MM , LENGTH100MM-400MM
Certification :
ISO9001:2008
Place of Origin :
ZHUZHOU
MOQ :
5pc
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
5000 KGS per month
Delivery Time :
5-8 working days or negotiable
Packaging Details :
Standard or customized package
Dia :
8-32mm
Length :
80-400mm
Usage :
CNC Machine Tool
Advantage :
Carbide Factory for more than 20 years
Chemical composition :
WC+CO
Application :
CNC and Mechanical Working Industry
Description

Description:

It is an important tool for machining in CNC machining, its purpose to prevent tools from shanking and to control, which also called CNC extension rod. With the development of CNC precision machining, CNC machining from 5000 rpm, 6000 rpm to 8000 rpm may reach more than 20,000 rpm. At this cutting speed, only the use of anti-vibration boring bar can achieve high-speed cutting requirements.

Application:

Its purpose is to prevent tool shaking and control.

This is very important for CNC and machining industry.

Feature Advantage:

1. High hardness

2. Longer life

3. Strong corrosion resistance

4. Good wear resistance

5. Low friction coefficient

BT-MFT Caebide Boring Bar:

Anti Vibration High Pressure 400mm Milling Tool Holder

Specification L L1 L2 D d1 M
BT30-MFT16-30-M8 130.4 65 30 15.6 8.5 8
BT30-MFT16-60-M8 160.4 95 60 15.6 8.5 8
BT30-MFT20-30-M10 130.4 65 30 19 10.5 10
BT30-MFT20-60-M10 160.4 95 60 19 10.5 10
BT30-MFT25-30-M12 130.4 65 30 24 12.5 12
BT30-MFT25-60-M12 160.4 95 60 24 12.5 12
BT30-MFT35-30-M16 130.4 65 30 31.8 17 16
BT30-MFT35-60-M16 160.4 95 60 31.8 17 16
BT40-MFT16-30-M8 130.4 65 30 15.6 8.5 8
BT40-MFT16-60-M8 160.4 95 60 15.6 8.5 8
BT40-MFT20-30-M10 130.4 65 30 19 10.5 10
BT40-MFT20-60-M10 160.4 95 60 19 10.5 10
BT40-MFT25-30-M12 130.4 65 30 24 12.5 12
BT40-MFT25-60-M12 160.4 95 60 24 12.5 12
BT40-MFT35-30-M16 130.4 65 30 31.8 17 16
BT40-MFT35-60-M16 160.4 95 60 31.8 17 16
BT50-MFT25-30-M12 130.4 65 30 24 12.5 12
BT50-MFT25-60-M12 160.4 95 60 24 12.5 12
BT50-MFT35-30-M16 130.4 65 30 31.8 17 16
BT50-MFT35-60-M16 160.4 95 60 31.8 17 16

Contact:

Hunan Benemetal Technology Co., Ltd

Add: No.88 Kaide Road, Hetang District, Zhuzhou City, Hunan Province.

Tel: 0086-22599690

Whatsapp: +86-15060668009 +86-18974166960

Skype: lynnaaron

QQ: 349353634 1223240850 67192405

Email: lynn@carbideend-mills.com ,wei@carbideend-mills.com

Website: www.carbideend-mills.com
