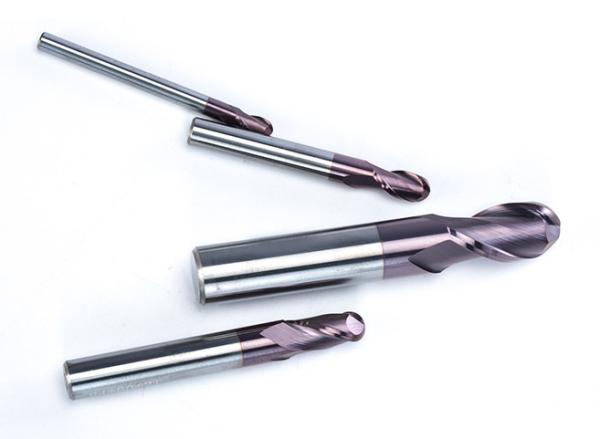

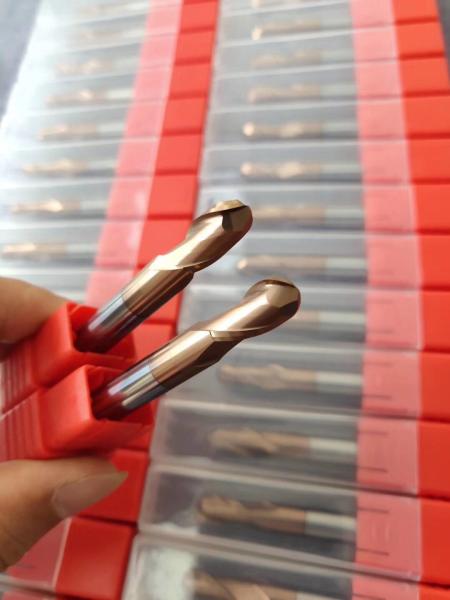

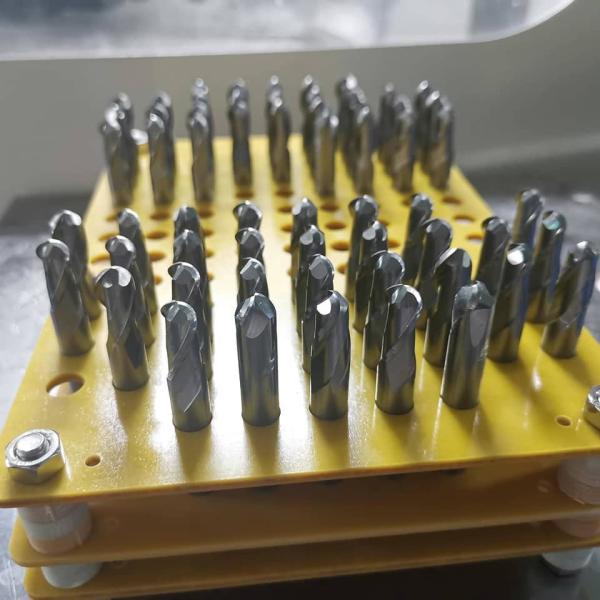

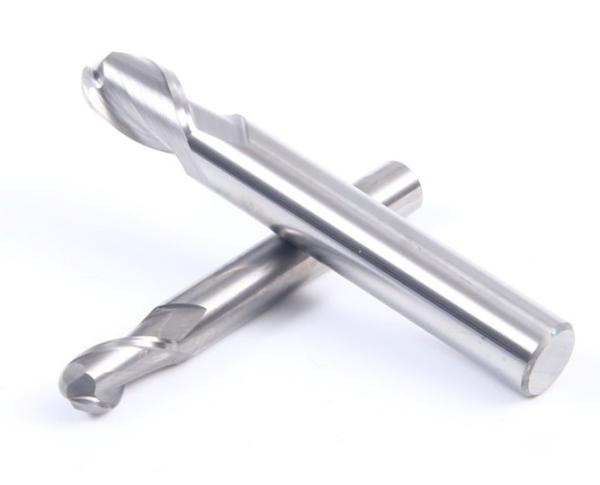

Tungsten Carbide WF25 Ball Nose Milling Cutter 2 Flutes
Tungsten Carbide WF25 Ball Nose Milling Cutter 2 Flutes
Tungsten Carbide WF25 Ball Nose Milling Cutter 2 Flutes
Tungsten Carbide WF25 Ball Nose Milling Cutter 2 Flutes
Tungsten Carbide WF25 Ball Nose Milling Cutter 2 Flutes
Tungsten Carbide WF25 Ball Nose Milling Cutter 2 Flutes
Tungsten Carbide WF25 Ball Nose Milling Cutter 2 Flutes
Tungsten Carbide WF25 Ball Nose Milling Cutter 2 Flutes
Specifications
Brand Name :
SUPAL
Place of Origin :
Changzhou,Jiangsu,China
MOQ :
5PCS
Price :
To be negotiated
Payment Terms :
T/T
Supply Ability :
10000000PCS
Delivery Time :
7-15Days
Packaging Details :
1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Model Number :
Ball Nose End Mill
Material :
Tungsten carbide
Coating :
All coating
Workpiece Material :
General steel
Service :
OEM/ODM
Application :
CNC lathe for milling
Description

Coating Introduction
ENDMILL GRADE
Coating Name
Color
Hv
μm
Friction
The Max ℃
HRC45 coating
AlTiN
black
3300
1-4
0.7
850℃
HRC55 coating
TiSiAlN
bronzed
3400
1-4
0.7
900℃
HRC60 coating
AlCrSiN
black
4000
1-7
0.35
1100℃
HRC65 coating
nACo 3 Blue
blue
4500
1-7
0.45
1200℃
Stainless Steel coating
nACo 3 Gold
golden
4500
1-7
0.55
1200℃
Carbide Material Introduction
ENDMILL GRADE
Material Grade
Grain
Introduction
Application
HRC45 carbide material
YL10.2
0.6μm
YL10.2 is tungsten carbide powder with 89.7% WC and 10% cobalt powder, and has high toughness and wear resistance.
Suitable for General Steel
HRC55 carbide material
K30
0.5μm
K30 is ultra fine grain and containes Ni and Cr element, which provides high strength and good toughness.
General Steel, Stainless Steel, cast iron
HRC60 carbide material
WF25
0.4μm
WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.
High Hard Material, steel, cast iron, etc
HRC65 carbide material
GU25UF
0.4μm
GU25UF is 0.4micron powder with 12% cobalt and has very high toughness and wear resistance.It is the most suitable for hard
cutting.
Titanium Alloy, High-temperature Alloy, Harden material, etc
Stainless Steel material
WF25
0.4μm
WF25 is 0.4micron ultrafine carbide powder and provides very high toughness and wear resistance.
stainless steel

Tungsten Carbide WF25 Ball Nose Milling Cutter 2 Flutes

Tungsten Carbide WF25 Ball Nose Milling Cutter 2 Flutes

Tungsten Carbide WF25 Ball Nose Milling Cutter 2 Flutes

Tungsten Carbide WF25 Ball Nose Milling Cutter 2 Flutes
