Efficient Coating Solid Carbide Milling Cutters OEM
Efficient Coating Solid Carbide Milling Cutters OEM
Efficient Coating Solid Carbide Milling Cutters OEM
Efficient Coating Solid Carbide Milling Cutters OEM
Efficient Coating Solid Carbide Milling Cutters OEM
Efficient Coating Solid Carbide Milling Cutters OEM
Specifications
Brand Name :
SUPAL
Place of Origin :
Changzhou,Jiangsu,China
MOQ :
5PCS
Payment Terms :
T/T
Supply Ability :
10000000PCS
Delivery Time :
7-15Days
Packaging Details :
1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Usage :
Metal Drilling
Hardness :
45HRC,55HRC,65HRC
Coating :
TiAlN AlTiN TiAlCrN TiAIN
Suitable for :
Cast Iron, Carbon Steel, Mould Steel, Tool Steel
Service :
OEM
Transport :
UPS/Fedex/DHL/TNT/EMS/Sea
Price :
To be negotiated
Model Number :
OEM
Description

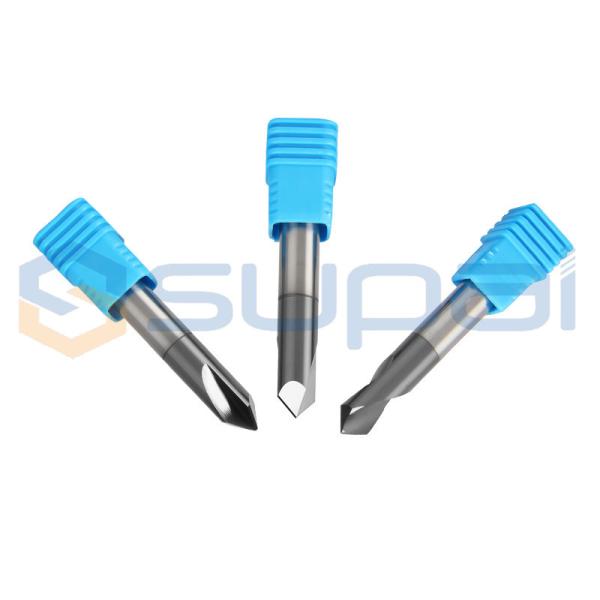

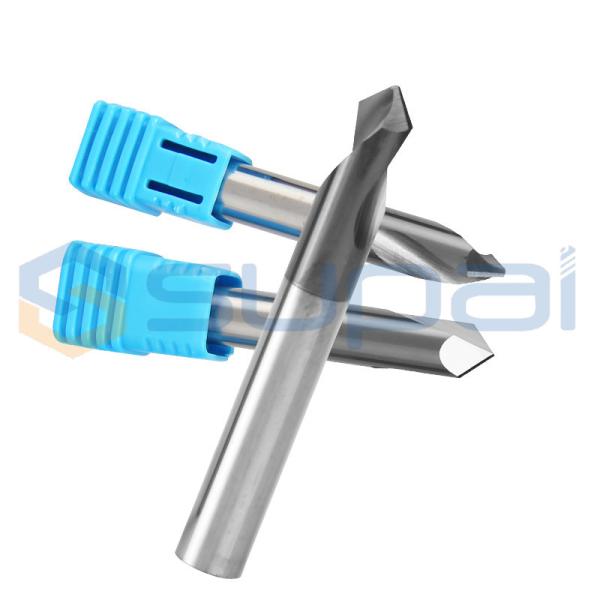

Efficiency Coating Tungsten CNC Carbide Chamfer Mill Countersink Drill Bit Woodworking
Product Description

1.Standard size 4mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm
2.High Precision,Good Surface & Performace

Product Name
Efficiency coating tungsten cnc carbide chamfer mill countersink drill bit
Material
stainless steel/steel
Precision
High Precision
Standard
ISO
OEM
Accept
Suitable for
Cast Iron, Carbon Steel, Mould Steel, Tool Steel
Controlling Mode
CNC
Used
CNC Lathe machinery

Super Raw Material
Item Grade HRC45 HRC55 HRC60 HRC65
(YG10X ) (YL10.2 & WF25) (Germany K44 &K40) ( H10F)
Details Grain size 0.7um Grain size 0.6um Grain size 0.5um Grain size 0.5um
Co10% Co10% Co12% Co10%
Flexural strength Flexural strength 4000N/mm2 Flexural strength Flexural strength 4300N/mm2
3320N/mm2 4300N/mm2
Super Coating
Coating Classifying and Advantage
Item Coating Type AlTin TiAlN TiSiN Naco
Characteristic Hardness(HV) 3300 2800 4300 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp.(°C) 900 800 1000 1200
Friction Coefficient 0.35 0.3 0.25 0.4
Color Black Dark Purple Copper Blue
Advantages High heat stability Normally cutting Suitable for heavy cutting, and high hardness cutting For high precision cutting
Suitable for high speed, dry cutting Suitable for cutting mould steel, stainless Suitable for high hardness cutting, mould steel processing
Most suitable for carbide cutting tools, turning insert

Efficient Coating Solid Carbide Milling Cutters OEM

Specification Flute Dia(φ) Flute Length (C) Shank Dia(D) Overall Length(L)
Φ1x3Cx4Dx50L 1 3 4 50
Φ1.5x4Cx4Dx50L 1.5 4 4 50
Φ2x6Cx4Dx50L 2 6 4 50
Φ2.5x8Cx4Dx50L 2.5 8 4 50
Φ3x8Cx4Dx50L 3 8 4 50
Φ3.5x10Cx4Dx50L 3.5 10 4 50
Φ4x10Cx4Dx50L 4 10 4 50
Φ5x13Cx6Dx50L 5 13 6 50
Φ6x15Cx6Dx50L 6 15 6 50
Φ8x20Cx8Dx60L 8 20 8 60
Φ4x20Cx4Dx75L 4 20 4 75
Φ5x20Cx6Dx75L 5 20 6 75
Φ6x20Cx6Dx75L 6 20 6 75
Φ8x25Cx8Dx75L 8 25 8 75
Φ10x25Cx10Dx75L 10 25 10 75
Φ12x30Cx12Dx75L 12 30 12 75

Efficient Coating Solid Carbide Milling Cutters OEM

Efficient Coating Solid Carbide Milling Cutters OEM
