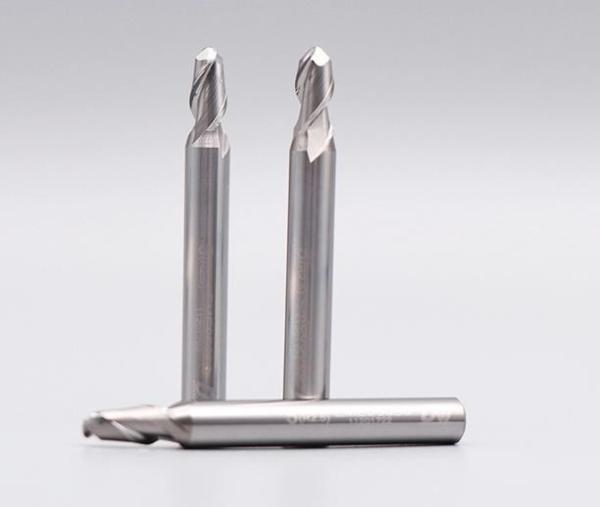

Customized Aluminum End Mill 2/3 Flute High Precision High Wear Resistance
Customized Aluminum End Mill 2/3 Flute High Precision High Wear Resistance
Customized Aluminum End Mill 2/3 Flute High Precision High Wear Resistance
Customized Aluminum End Mill 2/3 Flute High Precision High Wear Resistance
Specifications
Brand Name :
SUPAL
Place of Origin :
Changzhou,Jiangsu,China
MOQ :
5PCS
Payment Terms :
T/T
Supply Ability :
10000000PCS
Delivery Time :
7-15Days
Packaging Details :
1.One piece in a platic pipe, 10 pieces per group. 2.Use the air bubble paper to encase the plastic pipe. 3.Put the goods encased with air bubble paper in the carton. 4.Other packing will be accept according to your needs.
Type :
Aluminum Ball nose end mill
Coating :
Null
Material :
Carbide
Flute :
2/3
Precision :
High precision
Suitable for :
Carbon Steel/Mould steel /Stainless steel
Model Number :
OEM
Price :
To be negotiated
Description

Manufacture supply milling Cutter CNC Carbide End Mill 6mm Aluminum Ball Nose Endmill for Machining

Super Micro Grain Size Solid Carbide Endmills:

1. 100% virgin carbide material;

2. High performance PVD coating;

3. Precise dimension, high accuracy;

4. 100% inspection;

5. Special design for perfect cutting performance and effciency;

6. Anti-broken design gives high wear-resistance without crack;

7. Super long tool life;

8. Customized tool design, coating, labeling, packing are available.

Product Name
milling Cutter CNC Carbide End Mill 6mm Aluminum Ball Nose Endmill
Material
stainless steel/steel/aluminum
Color
uncoated
Standard
ISO
HRC
HRC45
OEM
Supply
Machining
Carbon Steel/Mould steel /Stainless steel

Super Raw Material

Item Grade
HRC45
(YG10X )
HRC55
(YL10.2 & WF25)
HRC60
(Germany K44 &K40)
HRC65
( H10F)
Details
Grain size 0.7um
Co10%
Flexural strength
3320N/mm2
Grain size 0.6um
Co10%
Flexural strength 4000N/mm2
Grain size 0.5um
Co12%
Flexural strength
4300N/mm2
Grain size 0.5um
Co10%
Flexural strength 4300N/mm2

Super Coating

Coating Classifying and Advantage
Item
Coating Type
AlTin
TiAlN
TiSiN
Naco
Characteristic
Hardness(HV)
3300
2800
4300
42(GPA)
Thickness(UM)
2.5-3
2.5-3
3
3
Oxidation Temp.(°C)
900
800
1000
1200
Friction Coefficient
0.35
0.3
0.25
0.4
Color
Black
Dark Purple
Copper
Blue
Advantages
High heat stability
Normally cutting
Suitable for heavy cutting, and high hardness cutting
For high precision cutting
Suitable for high speed, dry cutting
Suitable for cutting mould steel, stainless
steel
Suitable for high hardness cutting, mould steel processing
Most suitable for carbide cutting tools, turning insert

Specification
Flute Dia(φ)
Flute Length (C)
Shank Dia(D)
Overall Length(L)
Φ1x3Cx4x50L
1.0
3
4
50
Φ1.5x4Cx4x50L
1.5
4
4
50
Φ2x6Cx4x50L
2.0
6
4
50
Φ2.5x8Cx4x50L
2.5
8
4
50
Φ3x8Cx4x50L
3.0
8
4
50
Φ3.5x10Cx4x50L
3.5
10
4
50
Φ4x10Cx4x50L
4.0
10
4
50
Φ5x13Cx6x50L
5.0
13
6
50
Φ6x15Cx6x50L
6.0
15
6
50
Φ8x20Cx8x60L
8.0
20
8
60
Φ4x20Cx4x75L
4.0
20
4
75
Φ5x20Cx6x75L
5.0
20
6
75
Φ6x20Cx6x75L
6.0
20
6
75
Φ8x25Cx8x75L
8.0
25
8
75
Φ10x25Cx10x75L
10.0
25
10
75
Φ12x30Cx12x75L
12.0
30
12
75
Φ4x25Cx4x100L
4.0
25
4
100
Φ5x25Cx6x100L
5.0
25
6
100
Φ6x30Cx6x100L
6.0
30
6
100
Φ8x35Cx8x100L
8.0
35
8
100
Φ10x40Cx10x100L
10.0
40
10
100
Φ12x45Cx12x100L
12.0
45
12
100
Φ14x40Cx14x100L
14.0
40
14
100
Φ16x40Cx16x100L
16.0
40
16
100
Φ18x40Cx18x100L
18.0
40
18
100
Φ20x45Cx20x100L
20.0
45
20
100
