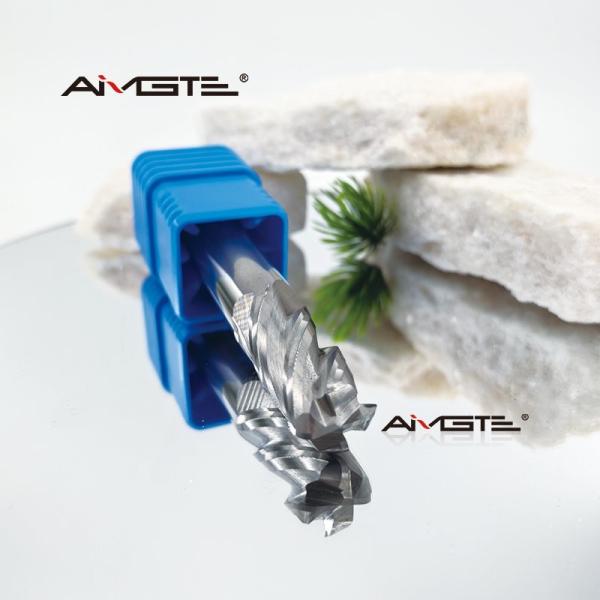

16mm Carbide Bull Nose End Mill 4-Flute - R0.5-R2.0 Corner Radius End Mills

Introduction:

This 16mm 4-flute carbide bull nose end mill features a precision-ground corner radius (R0.5-R2.0) for superior performance in contour milling, 3D profiling, and slotting applications. Designed for CNC machining centers, it combines the strength of micro-grain tungsten carbide with optimized flute geometry to deliver smooth finishes and extended tool life in steel, aluminum, and composite materials.

Features:

✔ High-Performance Carbide Substrate

• Grade K30/K40 micro-grain carbide for wear resistance in abrasive materials

• Sub-micron grain structure ensures edge retention at high RPM

✔ 4-Flute Spiral Design

• 30°-45° helix angle (selectable) for efficient chip evacuation

• Balanced flute geometry reduces vibration in deep-pocket machining

✔ Bull Nose Radius Edge

• R0.5-R2.0 corner radius options (customizable)

• Blends sharp corner precision with the durability of rounded edges

• Ideal for mold cavities and organic 3D shapes

✔ Advanced Coating Options

• Uncoated: Best for aluminum/copper (prevents material adhesion)

• AlTiN Coated: For hardened steels (HRC 50+) and high-temperature alloys

✔ Rigid Shank & Tolerance

• h6 tolerance shank (DIN 6535) for minimal runout

• Weldon flat or cylindrical shank options

Advantages Over Competitors

30% Higher Feed Rates vs. standard end mills (optimized chip load)

Mirror Finishes (Ra ≤0.4µm achievable in aluminum)

Single-Tool Solution for roughing and semi-finishing

Compatible with vertical/horizontal machining centers

Typical Applications

Mold & Die Making

• Core/cavity machining (P20, H13 steels)

• Graphite electrode milling

Aerospace

• Turbine blade root profiles (Inconel)

• Lightweight structural components

Automotive

• Cylinder head ports

• Composite trim tools

General Engineering

• Architectural metalwork

• Precision jigs/fixtures

Detailed Pictures:

Our workshop:

New Customer Special Offers:

To help you experience our premium products, we’re excited to offer the following exclusive promotions for first-time buyers:

1.Free Test Samples

Get free samples (total value ≤ $20 USD) when you cover the international shipping cost.

Perfect for evaluating our product quality and performance risk-free.

2.$50 USD Discount on First Order

New customers can enjoy a $50 discount on the first order of $500 or more.

A great way to start our partnership with extra value!

Our advantages:

1.Advanced grinding machines: All of our grinding machines are WALTER and SAACKE brands.

2.Advanced inspection machines: We have ZOLLER, OMEGA, PG1000, etc. For inspecting each carbide tools.

3.Fast feedback: we offer 24 hours online service

4.Strict quality control system:
We strictly adhere to a three-stage inspection process for each tool:
Raw material inspection
Semi-finished product inspection after production
Final inspection after coating (pre-shipment check)
