6 Flute Solid Carbide Flat Bottom Finishing End Mill for Steel Stainless Mold Making CNC Milling 1/4" to 3/4"

Introduction:

Our premium 6-flute solid carbide flat bottom end mill is engineered for high-precision finishing operations in steel, stainless steel, and mold/die applications. Featuring an advanced micro-grain carbide substrate and precision-ground cutting edges, this industrial-grade tool delivers exceptional surface finishes (Ra < 0.2μm achievable) while maintaining tight tolerances in demanding CNC machining environments.

Features:

• 6-flute design optimized for fine finishing passes

• True flat bottom geometry (±0.005mm tolerance)

• Ultra-fine grain tungsten carbide (Grade K30)

• 45° high helix angle for smooth chip evacuation

• Optional AlTiN or TiSiN coatings available

• Precision ground cutting edges with minimal runout (<0.003mm)

• Available in 1/4" to 3/4" diameters (6-19mm)

Advantages Over Competitors

✓ Produces mirror-like surface finishes
✓ 30% longer tool life compared to 4-flute end mills
✓ Reduced vibration through balanced flute design
✓ Higher feed rates enabled by multi-flute configuration
✓ Excellent wear resistance in hardened steels (up to HRC 55)

Typical Applications

• • Precision finishing of mold/die surfaces (P20, H13)

  • Final passes on stainless steel components (304, 316)

  • High-tolerance machining of alloy steels (4140, 4340)

  • Aerospace structural part finishing

  • Medical device component machining

  • General CNC milling requiring superior surface quality

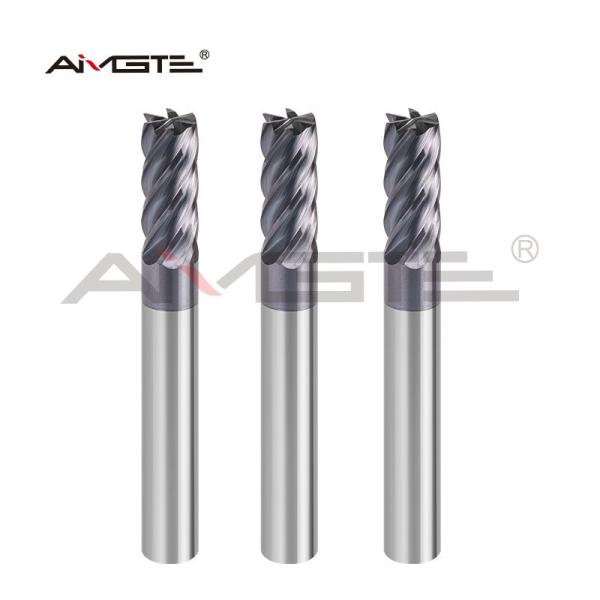

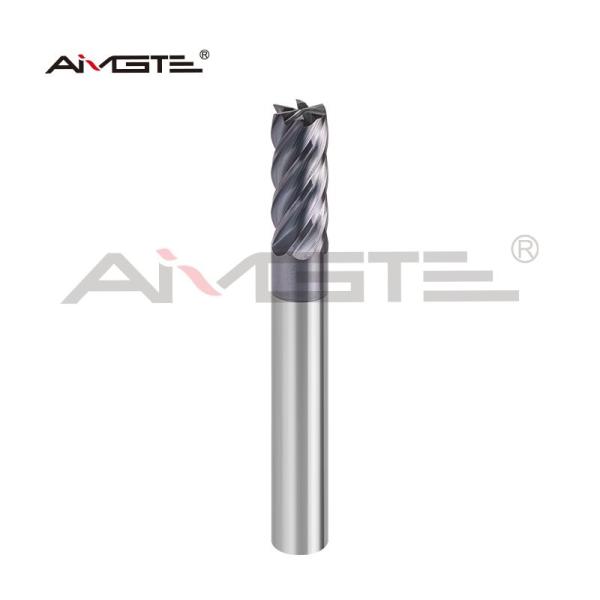

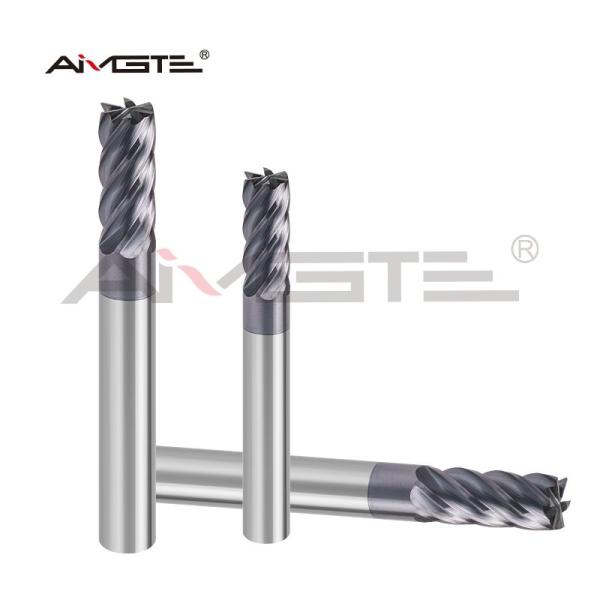

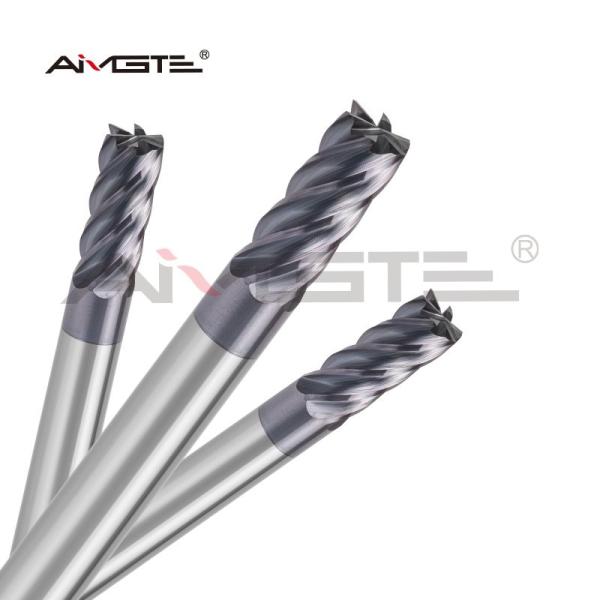

Detailed Picture

Our workshop:

Why Choose This End Mill?

1. German-engineered carbide for maximum edge retention

2. Special edge preparation for burr-free finishes

3. Custom configurations available (lengths, corner radius)

4. 100% inspected prior to shipment

5. Technical support for optimal machining parameters

Promotion policy:

To help you experience our premium products, we’re excited to offer the following exclusive promotions for first-time buyers:

1.Free Test Samples

Get free samples (total value ≤ $20 USD) when you cover the international shipping cost.

Perfect for evaluating our product quality and performance risk-free.

2.$50 USD Discount on First Order

New customers can enjoy a $50 discount on the first order of $500 or more.

A great way to start our partnership with extra value!
