Oil Gas Industry Threaded Tungsten Carbide Nozzle For Drilling Tools And Equipments
Oil Gas Industry Threaded Tungsten Carbide Nozzle For Drilling Tools And Equipments
Oil Gas Industry Threaded Tungsten Carbide Nozzle For Drilling Tools And Equipments
Oil Gas Industry Threaded Tungsten Carbide Nozzle For Drilling Tools And Equipments
Specifications
Brand Name :
Zonco
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
4-8 weeks depending on quantity
Packaging Details :
Standard package or to customer's demand
Application :
Oil Service Industry
Certificate :
ISO9001:2015
Advantage :
High Wear Resistance, Impact Resistance
Type :
Accept Non-Standard Orders
Name :
High Hardness and Wear Resistance Tungsten Carbide Thread Nozzle
Surface :
Polished
Description

Oil & Gas Industry Tungsten Carbide Threaded Nozzle Non Standard Custom available for drilling tools and equipments

Features of Tungsten carbide nozzle:

Tungsten carbide nozzle is made from hot pressing with straight bore and venture bore type, which have high hardness, good wear resistance, high anti-corrosion ability. Usually they offers a long life with high performance. They are widely uased in abrasive water jet, dry/wet blasting,suction blast,scrubber,descaling,slurry jet,centrifuge and so on.

Material characteristics:

Tungsten carbide, not to be confounded with tungsten alloy, which is metal, is the ceramic of choice when it comes to wear and abrasion resistance. Cutting tools for steel and tool steel are made from tungsten carbide. It is also used extensively in the mining industry as a button insert for crushing rocks.

The high thermal performance of the tungsten carbide keeps the nozzle tip hot, thus allowing faster printing speed without sacrificing the quality.

Tungsten carbide has exceptional wear resistance due to its high hardness. Both the nozzle hole size and height will always stay the same, no matter how long or how hard you use it.

Common alloy grades, physical and mechanical properties, and recommended applications.

Grade Physical and mechanical properties
density(g/cm3) Flexural strength(N/mm2) hardness(HRA)
ZG01 15.3-15.5 1200 95.5
ZG06 14.8-15.1 2000 90.0
ZG6X 14.8-15.1 1860 91.8
ZG6A 14.8-15.1 2000 93.2
ZG08 14.6-14.9 2200 89.0
ZG11 14.3-14.7 2600 88.5
ZG12X 14.2-14.5 2850 89.5
ZG15 13.8-14.2 3000 86.5
ZG10.2 14.3-14.6 3500 91.5
ZN06 14.5-14.9 2000 90.0
ZN09 14.3-14.6 2300 89.0
ZN11 14.0-14.3 2600 88.0

Application fields:

ZONCO provides cost-effective wear-resistant, erosion-resistant, high-temperature and high-pressure parts for oil and gas, chemical, pump and valve, coal chemical, automotive, solar and other industries.

pictures:

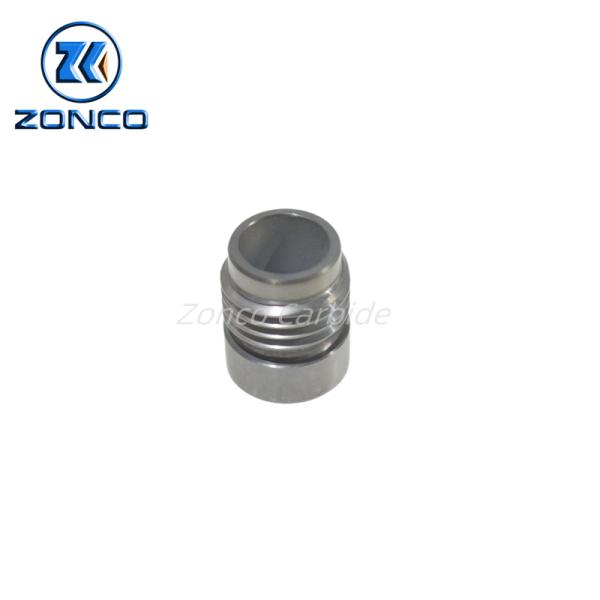

Oil Gas Industry Threaded Tungsten Carbide Nozzle For Drilling Tools And Equipments

Oil Gas Industry Threaded Tungsten Carbide Nozzle For Drilling Tools And Equipments

Advantages:

① Advanced process design

② Specialized in production

③ Unique material properties

④ Personalized customization

⑤ Whole process quality control system

⑥ Strong supply ability guaranteed
