380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
Specifications
Brand Name :
JAEN
Model Number :
JAEN-T310
Certification :
CE ROHS
Place of Origin :
Zhengzhou, China
MOQ :
1 pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 pcs per month
Delivery Time :
10-15 working days
Packaging Details :
Durable PVC bag and cartons for accessories
Product Name :
Caravan Trailer
Condition :
New
Usage :
Outdoor,camper travel,Travel trailer
Function :
Multifunctional,camper travel
Size :
Customized
Color :
Customer's request
Voltage :
110V/220V/380V
Warranty :
12 Months
Description

OEM Camper Caravan Trailer 5030mm Highway Version Travel Trailer With Extra Large Space

Quick Detail:

· Electric brake system

· Independent suspension

· 700Mpa high-strength steel frame

Description:

  • Appearance design: eye-catching appearance, indulge in beauty.
  • The maximum total mass is 1490kg, and the weight of the front vehicle only needs to be greater than 1.5 tons to be towed.
  • Adopting high-strength steel frame, independent suspension, and electric brake system.
  • More suitable for diversified road types.
  • Good shock absorption effect during drag driving.The sense of turbulence transmitted to the front car is significantly reduced.

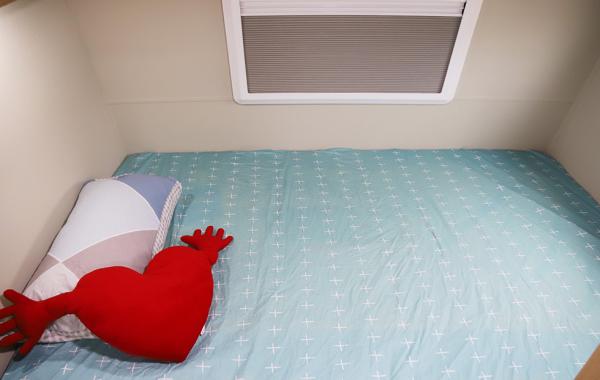

  • Equipped with a large bed with a size of 2100 * 1400mm at the front.
  • The elevator seat in the reception area can be transformed into a bed of 1800 * 820mm.
  • Fully capable of accommodating three people.
  • The cabin size is 2100 * 720 * 460mm.
  • Make full use of the body space, and any more Household goods can be fully placed.
  • Optional 570W solar panel+24V DC variable frequency air conditioning, greatly improving the vehicle's endurance.
  • On clear weather, it is ensured to continuously turn on the air conditioning during the day without connecting to the mains power.
  • The kitchen area is equipped with a 50L motorhome refrigerator, a Induction cooking, and an 80L clean water tank, so that you can have more confidence to move forward and enjoy the infinite scenery.

Specifications:

Basic Specification
Length(mm) 5030 Inner Width* Inner Height(mm) 2100*1850
Width(mm) 2250/2300(awning) Maximum Speed(km/h) 100
Height(mm) 2540/2600
Standard configuration
Chassis High strength frame, overall electrophoretic anti-corrosion treatment ●
Electric brake+accidental brake+handbrake ●
Dual damping coil spring independent suspension ●
13 core trailer plug ●
4 parking legs+1 front support wheel ●
External Sandwich aluminum skeleton box board ●
External sunshade ●
Manual folding first level telescopic step ●
Front transfer armrest ●
Side hatch ●
Push out window/sliding window ●
External water intake ●
80L clean water tank ●
80L gray water tank ●
Manual drain valve for grey water tank+drain valve for non black water tank ●
Inside Double bed ●
Sponge eco-friendly mattress ●
Card holder+lifting table variable bed ●
Storage space (hanging cabinet+cabinet+bed bottom) ●

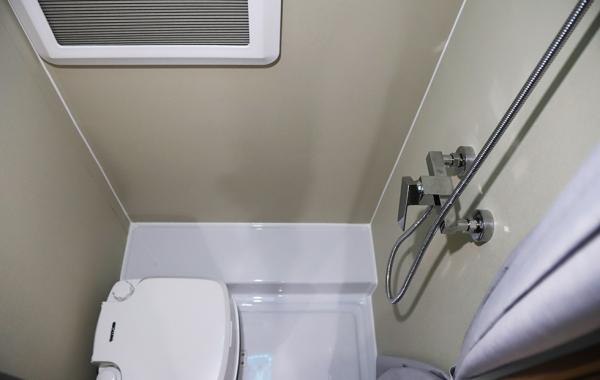

Integrated shower bathroom+shower+towel bar ●
Bathroom shower curtain ●
Mobile portable toilet ●
Vegetable washing pool ●
1 pc 1kg fire extinguisher ●
10 meter external water pipe ●
Air conditioning system Toilet ventilation fan ●
Living room ventilation system (ventilation fan) ●

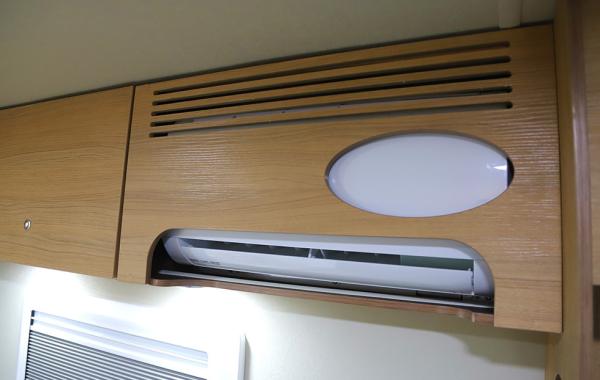

24V variable frequency DC air conditioning ●
Electrical system Gas water heater+liquefied gas alarm ●
Mains interface ●
External lighting ●
LED turn/brake/license plate/position lights/reverse/fog lights ●
Charging and inverter integrated machine 2000W
Battery 2pcs 100Ah
950W Induction cooking (AC220V, mobile) ●
LED interior lighting ●
220V power socket, USB socket ●
10 meter external power cord ●
Optional configuration
Interior style Macadamia ternifolia interior style ●
Refrigerator 50L RV refrigerator ●
88L RV refrigerator ○
Bathroom external window Bathroom external window ●
Monitoring system Dual use four way monitoring for driving and parking ○
Bedding privacy curtain Bedding privacy curtain ○
Solar panels Flexible solar panels 570W
A-frame decoration A-frame ABS trim (front) ○
Other Microwave oven ○
Water purification device ○
Electric heating and antifreeze device for clean water tank ○
Electric heating and antifreeze device for sewage tank ○
Fuel Fan heater ○
External pull-out gas stove ○
Remarks ●' indicates standard configuration, '○' indicates optional, and '-' indicates no such configuration.

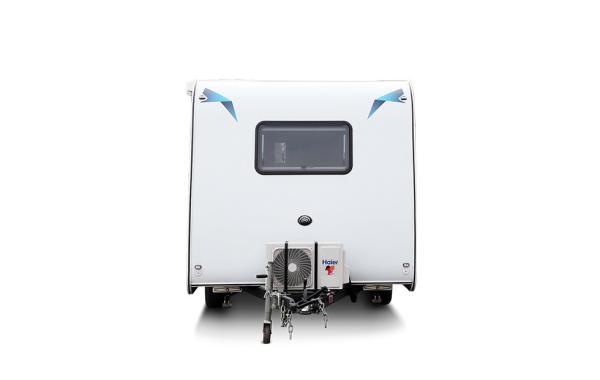

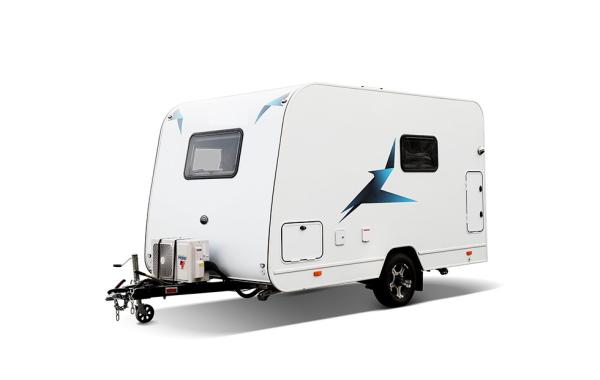

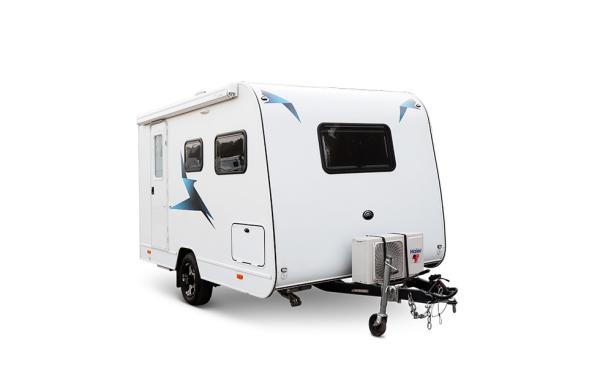

Pictures for reference:

380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer

380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer

380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer

380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer

380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer

380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer

380V OEM Large Travel Trailer 5030mm Highway Version Travel Trailer
