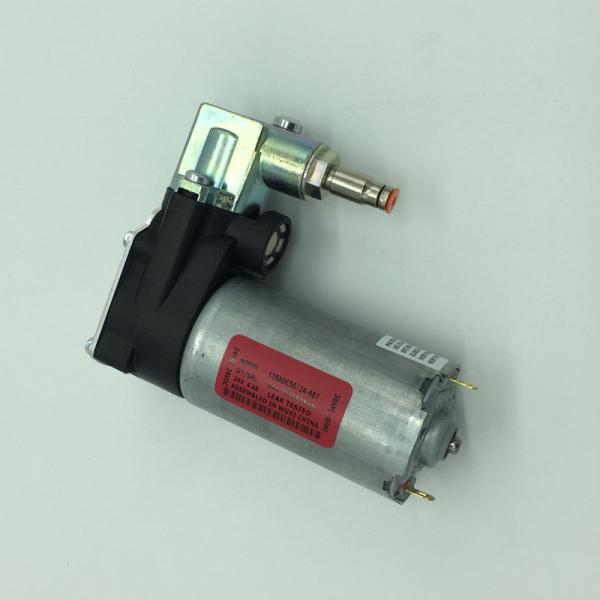

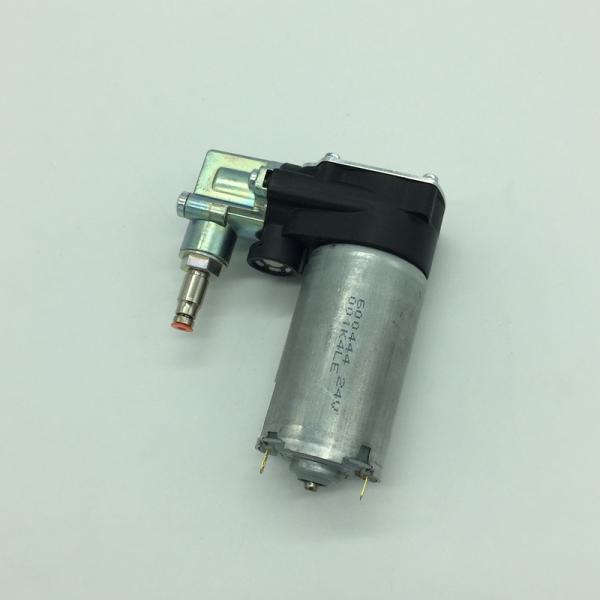

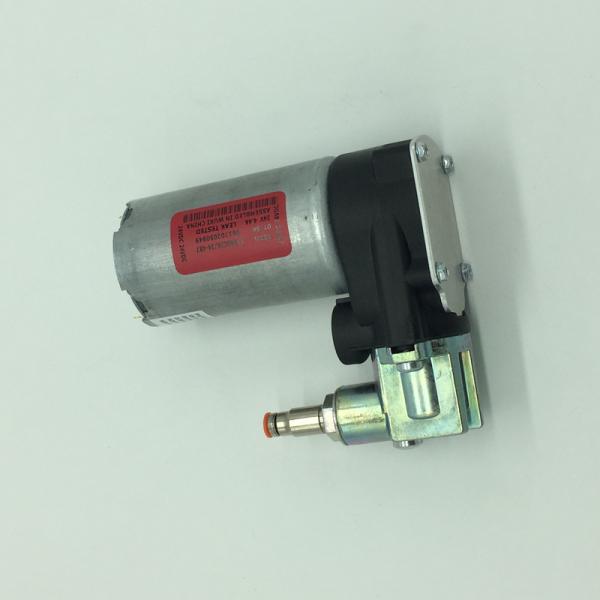

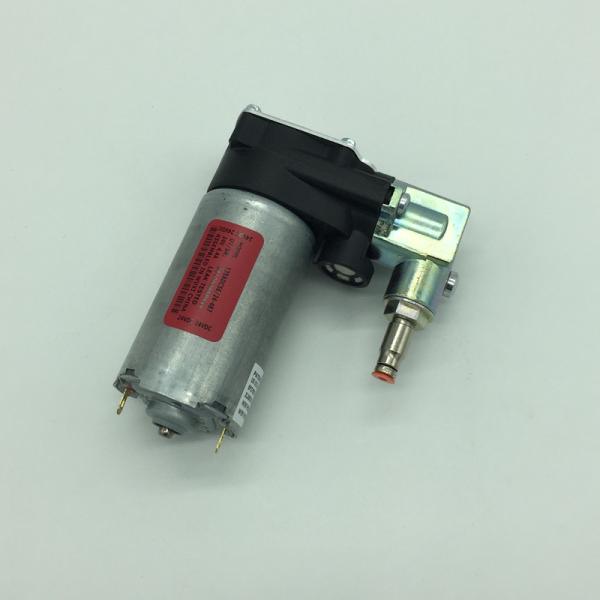

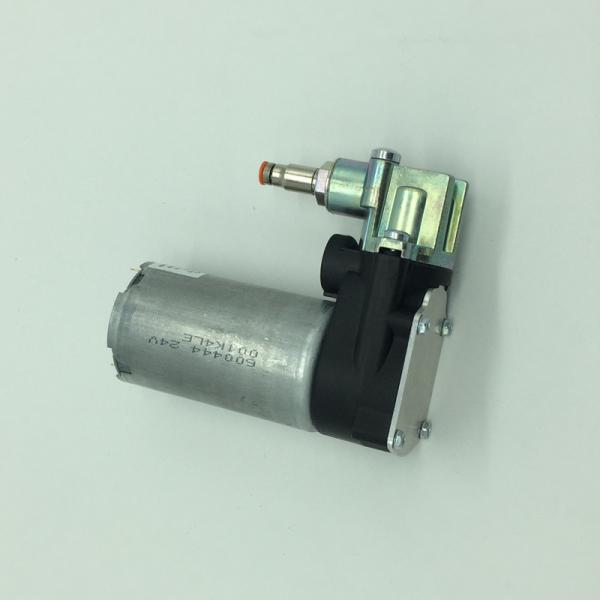

Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Specifications
Brand Name :
none
Model Number :
135ADC56/12
Certification :
none
Place of Origin :
China
MOQ :
1
Price :
USD70-90set
Payment Terms :
T/T, Western Union,
Supply Ability :
1000pcs/week
Delivery Time :
5-8work days
Packaging Details :
carton
HEAD CONFIGURATION :
Pressure Only
STROKE :
.56 inches
PRESSURE :
Flow @ 12V DC
Description

135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat

Xian Huihong Vehicle Parts Company Limited is specializing in the production of vehicle accessories ,like seat recliners, rotating mechanism, seat slider and etc ,which was founded in 2011 and made great achievements on it.
We have researched and designed products independently for many years. So far, our company has cooperated with many companies of motor homes at home and abroad for long time, receiving good comments from the world customers. Owing to high quality and A good service , We are ready for any time to respond the customers' needs and keep loyal to our partners.
Now the products are mainly exported to North America, South America, Europe, Australian, New Zealand, South Africa etc. over 10countries.
Our team keep on improving and will never stop.Warmly We are looking forward to cooperating with customers both at home and abroad based on mutual benefits. establish a long term and prosperous relationship with you.
Warmly welcome the customers to contact us for detailed informationair spring for the truck seat air suspension rubber bag for truck seat base parts

MODEL NUMBER 135ADC56/12 135ADC56/24
HEAD CONFIGURATION Pressure Only Pressure Only
STROKE .56 inches 0.56 inches
PRESSURE Flow @ 12V DC Flow@24VDC
cfm @ psi lpm @ bar
psi bar cfm lpm cfm lpm
0 0 0.54 15.3 0.54 15.3
10 0.5 0.48 14.2 0.48 14.2
20 1 0.42 12.7 0.42 12.7
30 1.5 0.38 11.6 0.38 11.6
40 2 0.33 10.6 0.33 10.6
50 3 0.3 9.1 0.3 9.1
60 5 0.27 6.8 0.27 6.8
70 7 0.24 4.8 0.24 4.8
80 0.22 0.22
90 0.19 0.19
100 0.17 0.17
MAX. CONTINUOUS PRESSURE - - - -
MAX. INTERMITTENT PRESSURE 87 psi 6.0 bar 87 psi 6 bar
MAX. DUTY CYCLE (MINUTES ON/OFF AT 23°C) 1 min. on / 20 min. off 1min.on/20min.off
MAX. AMBIENT AIR TEMP. +149°F +65˚C +149°F +65˚C
MIN. AMBIENT START TEMP. -22°F -30˚C -22°F -30˚C
MAX. RESTART PRESSURE 100psi 8.3bar 120 psi 8.3 ar
MOTOR VOLTAGE 12V DC 24V DC
MOTOR TYPE Permanent Magnet Permanent Magnet
CURRENT AT RATED LOAD (AMPS) 7.9 3.8
POWER AT RATED LOAD (WATTS) 95 92
IN-RUSH CURRENT (LOCKED ROTOR, AMPS) 29 17
CAPACITOR VALUE - -
MIN. FULL LOAD SPEED (RPM) 3915 4480
THERMAL PROTECTOR - -
NET WEIGHT 1.16 lb .53 kg 1.16 lb 0.53 g

Mini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seatMini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seatMini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seatMini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seatMini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seatMini 135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
