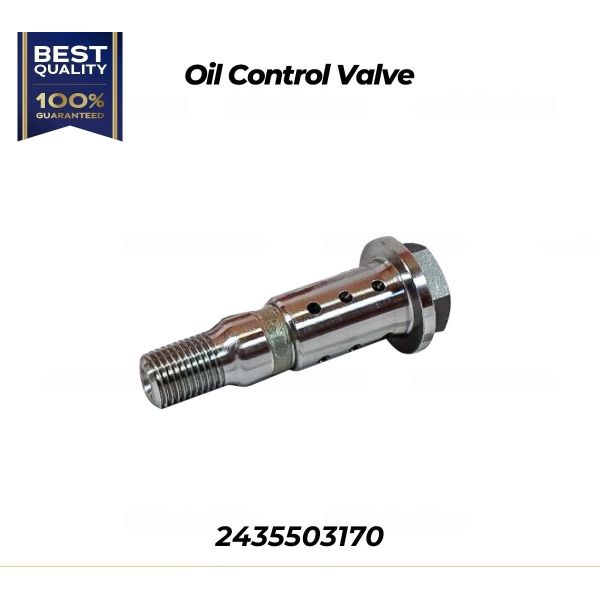

Oil Control Valve VVT For Hyundai Elantra Kia #2435503170
Oil Control Valve VVT For Hyundai Elantra Kia #2435503170
Oil Control Valve VVT For Hyundai Elantra Kia #2435503170
Oil Control Valve VVT For Hyundai Elantra Kia #2435503170
Specifications
Brand Name :
Sigsell
Place of Origin :
China
MOQ :
200 pcs
Payment Terms :
T/T, L/C
Delivery Time :
5-8 work days
Packaging Details :
carton packing
Product Name :
Camshaft Adjuster Control Valve
OE :
2435503170
End Connection :
Flanged
Valve Type :
Control Valve
Flow Capacity :
Cv 50
Positioner Type :
Digital
Valve Size :
5 inch
Body Material :
stainess steel
Warranty :
1 Year
Product name :
VVT Valve
Vehicle model :
Hyundai Kia
Description
Oil Control Valve VVT For Hyundai Elantra Kia #2435503170
Product Description
The main function of the VVT valve (Variable Timing Valve System) is to adjust the intake and exhaust volumes, as well as the opening and closing times and angles of the valves, based on the operating conditions of the engine, so as to achieve the optimal intake of air and enhance combustion efficiency.
The VVT valve regulates the intake timing by controlling the oil pressure, thereby adjusting the overlap time and timing of the engine's intake and exhaust systems. This technology can reduce fuel consumption and enhance engine efficiency. The working principle of the VVT valve is based on the duty cycle signal provided by the engine ECU to control the left and right movement of the spool valve, thereby controlling the direction of the oil passage to the camshaft. If the direction of the lubricating oil flowing out is the same as the rotation direction of the camshaft timing gear, the valve opening time will be advanced. Conversely, it will be delayed.
Specification
Product Name Car OCV Valve
OEM Number 2435503170
Car Model Hyundai Kia
Brand Sigsell /customized
Packing Neutral or as Customers Requirements
Sample Yes, but shipping cost need be repaid
Delivery 1-5 days for stock items, 10-15 days for the items need produced
More Information
OCV valve working principle: The engine system is to control the change of OCV valve oil passage to realize the control of CVVT in advance or specific lag to achieve the control of timing change and intake volume, so as to achieve the best working condition of the engine.
The engine at low speed, large torque, requires a relatively strong mixture. At high engine speed, the output power requires a thinner mixture. Therefore, the change of CVVT control valve is to change the intake volume by changing the opening time of the valve, so as to adapt to different engine working conditions.
FAQ
Are you a manufacturer?
Yes, Beijing hongtong is a professional manufacturer established in 2015.
Can you do design for us?
Yes, We do OEM and ODM service. We have good experience to understand what buyers like and arrange development.
Can you handle small orders?
Of course, in order to support clients' business, we will prepare some stock for many hot sale model in advance, so that we can sell small quantity products to you each time. We can also handle small custom orders, but there's extra cost printing. It depends on details.
How to place an order?
Select item, tell us quantity--confirm details -we quote price --give us shipping address--make proforma invoice for you--make payment.
