Seven Brushes Auto Car Wash Machine High Pressure Car Wash Machine PLC Control System
Seven Brushes Auto Car Wash Machine High Pressure Car Wash Machine PLC Control System
Seven Brushes Auto Car Wash Machine High Pressure Car Wash Machine PLC Control System
Seven Brushes Auto Car Wash Machine High Pressure Car Wash Machine PLC Control System
Seven Brushes Auto Car Wash Machine High Pressure Car Wash Machine PLC Control System
Seven Brushes Auto Car Wash Machine High Pressure Car Wash Machine PLC Control System
Seven Brushes Auto Car Wash Machine High Pressure Car Wash Machine PLC Control System
Seven Brushes Auto Car Wash Machine High Pressure Car Wash Machine PLC Control System
Specifications
Brand Name :
Wintai
Model Number :
WT-670
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
discussible
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100
Delivery Time :
25
Packaging Details :
Standard export packaging
Overall dimensions :
8000x3800x3440mm
Mains voltage :
3-phase/AC380V
Total power :
34KW
Water supply :
DN25mm/Waterflow rate≥200L/min
Air pressure :
0.75-0.9Mpa/Airflow rate≥0.1m³/min
Water/electricity consumptio :
150L/Car, 0.6kw/Car
Shampoo consumption :
7ml/Car
Water wax consumption :
12ml/Car
Assembling range :
9960x3800mm
Moving range :
9960x3800mm
Available size for car :
5200x2150x2200mm
Car wash capacity :
45-55cars/hour
Description
Seven Brushes Auto Car Wash Machine High Pressure Car Wash Machine PLC Control System
Product Overview
Seven Brushes Auto Car Wash Machine High Pressure Car Wash Machine PLC Control System
Key Features
  • High pressure water pre-washing system
  • Shampoo (Foams) sprinkling and wax washing systems
  • Seven brushes with foam material and lifelong warranty
  • Three blowers for complete and precise car body drying
  • PLC control system with user-friendly operation panel
  • Intelligent avoidance system for all car types
  • Main technology and machine design from Japan
  • Electroplated conveyor with tire corrector device system
  • Hot-dip galvanized steel frame for anti-rust protection
  • Imported control systems, motors, and electrical apparatus
  • One-year warranty with lifelong maintenance service
  • On-site technician installation and maintenance training
Technical Specifications
Overall dimensions 8000x3800x3440mm Mains voltage 3-phase/AC380V
Assembling range 9960x3800mm Water supply DN25mm/Waterflow rate≥200L/min
Moving range 9960x3800mm Air pressure 0.75-0.9Mpa/Airflow rate≥0.1m³/min
Available size for car 5200x2150x2200mm Air pressure 0.75-0.9Mpa/Airflow rate≥0.1m³/min
Available car to wash car/jeep/coach within 10 seats Water/electricity consumption 150L/Car, 6kw/Car
Washing time 1'30"/Car Shampoo consumption 7ml/Car
Car wash capacity 45-55 cars/hour Water wax consumption 12ml/Car

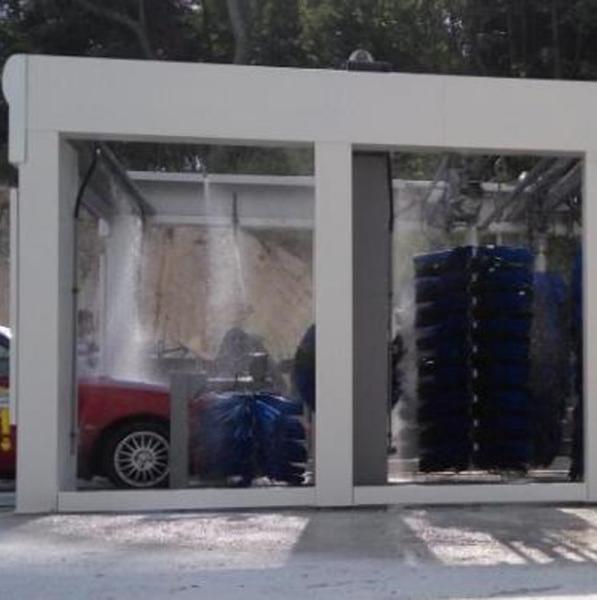

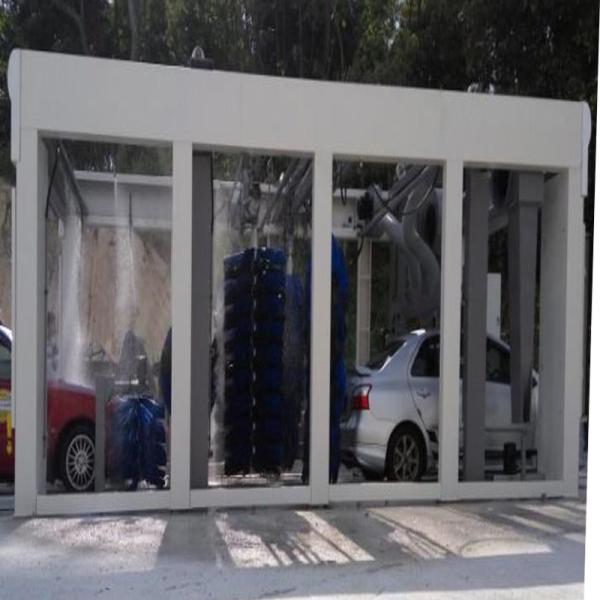

Project Installation
Seven Brushes Auto Car Wash Machine High Pressure Car Wash Machine PLC Control System Seven Brushes Auto Car Wash Machine High Pressure Car Wash Machine PLC Control System
