Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Specifications
Brand Name :
WINTAI
Model Number :
9 BRUSHES
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
us$20000/set-us$48000/set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 sets/month
Delivery Time :
25
Packaging Details :
Standard export packaging
Description
Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Key Features
  • Patented technology: Bended brush can wash side window and side skirt properly
  • Front and back side can be washed completely
  • Hub brush can stretch out and draw back precisely
  • English version of control box
Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes Large Intelligent Tunnel Type Automatic Car Washing Machine with 9 Brushes
Tunnel Type Advantages

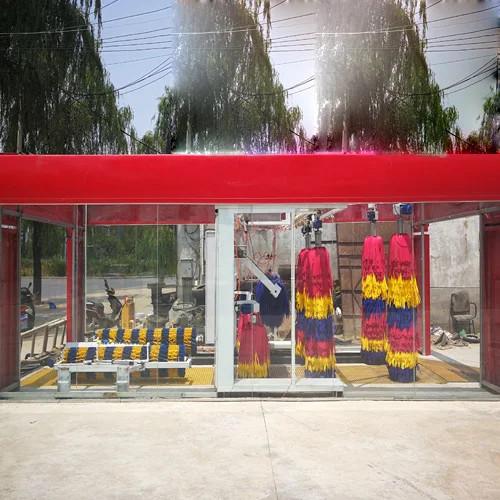

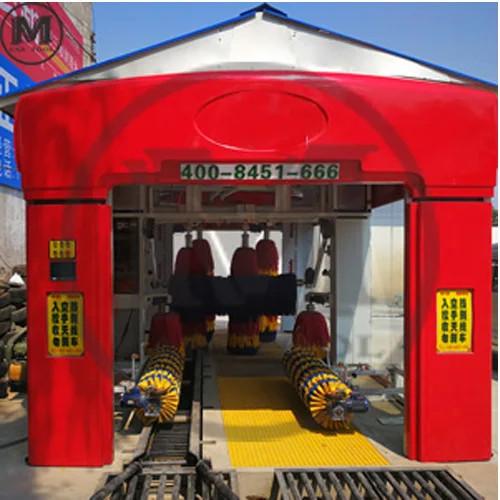

Unlike reciprocating type, tunnel type features beautiful glass exterior, making the entire washing process visible. The conveyor system transports the car through each washing stage and delivers it to the other side when complete.

  • Modern appearance enhances garage impression
  • Flushing, washing and drying in one operation, saving manpower
  • Suitable for large outdoor spaces
Technical Specifications Comparison
Type 7+4 Brushes Without Dryer 7+4 Brushes With Dryer 9+4 Brushes Without Dryer 9+4 Brushes With Dryer 10+6 Brushes With Dryer and Wiper 12+6 Brushes With Dryer and Wiper
Machine Size L x W x H(mm) 4000 x 3740 x 2800 6000 x 3660 x 2800 4000 x 3660 x 2800 6000 x 3660 x 2800 8000 x 3660 x 2800 8000 x 3660 x 2800
Car Size L x W x H(mm) 2000 x 2000 2000 x 2000 2000 x 2000 2000 x 2000 2000 x 2000 2000 x 2000
Channel Length(mm) 5200 6800 5200 6800 8400 8400
Capacity L x W x H(mm) 17000 x 3740 x 3000 18500 x 3740 x 3000 17000 x 3740 x 3000 18500 x 3700 x 3000 20000 x 3700 x 3000 20000 x 3700 x 3000
Voltage(V) 380 380 380 380 380 380
Power(KW) 9 21 10 22 27 28
Consumed Water Capacity 60L/Car (with water recycle system); 150L/Car (without water recycle system) 60L/Car (with water recycle system); 150L/Car (without water recycle system) 60L/Car (with water recycle system); 150L/Car (without water recycle system) 60L/Car (with water recycle system); 150L/Car (without water recycle system) 60L/Car (with water recycle system); 150L/Car (without water recycle system) 60L/Car (with water recycle system); 150L/Car (without water recycle system)
Washing Speed 40 cars/hour 40 cars/hour 40 cars/hour 40 cars/hour 40 cars/hour 40 cars/hour
Lever type Top Brush 1 1 1 1 1 1
Super Follow-up Wheel Brush 2 2 2 2 2 2
Hub Brush N N 2 2 N 2
Patented Bent Brush 4 x 4 4 x 4 4 x 4 4 x 4 4 x 4 4 x 4
Drying Side Brush N N N N 2 x 2 2 x 2
Drying Top Brush N N N N 1 1
Pre-wash Y Y Y Y Y Y
Foaming Y Y Y Y Y Y
Waxing Y Y Y Y Y Y
Bottom Spray Y Y Y Y Y Y
Drying N Y N Y Y Y
Spray-Paint Base Y Y Y Y Y Y
Antirust Parts Y Y Y Y Y Y
Glass Decoration Board Y Y Y Y Y Y
Conveyer Device Y Y Y Y Y Y
Touch Screen Y Y Y Y Y Y
Plastic Steel Outside Y Y Y Y Y Y
9+4 Brushes With Dryer - Detailed Specifications
Machine Parameters
  • Machine size: 6.20m L x 3.74m W x 2.8m H
  • Machine working distance: 7.50m
  • Land occupied length: 8.0m
  • Machine weight: 5.5 tons
Brush Configuration
  • Top Brush: 1 piece
  • Hub (wheel rim) Brush: 2 pieces
  • Super Follow-up Short Brush: 2 pieces
  • Patented bended side brush: 4 pieces
System Functions
  • Flushing way: High pressure water jet system
  • Foam cleaning: Automatic foam spraying system
  • Wax cleaning: Automatic wax spraying system
  • Chassis cleaning: Automatic high pressure water flushing system
  • Drying: 4 blowers
  • Car moving: Roller conveyor system
  • Control unit: PLC computer control system
  • Fault self-checking: Yes
  • Car cleaning mode: Several options available
  • Automatic recording: Yes
  • Automatic car washing display: Yes
Vehicle Compatibility
  • Suitable for cars, SUV, minibus
  • Max length: No limitation
  • Max width: 2m
  • Max height: 2m
Water & Electricity Requirements
  • 380V~415V / 3 phase
  • Power: 25KW
  • Power consumption: 0.3 kwh/car
  • Water consumption: 60L/car with water recycle system, 150L/car without water recycle system
