Specifications
Place of Origin :
Guangdong, China, Guangdong
Brand Name :
BIVEO
Model Number :
J-20
Packaging Details :
standard export package
Supply Ability :
100 Set/Sets per Month
Price :
$4,100.00/sets >=1 sets
Certification :
CE
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
15
Type :
Other
Color :
Yellow
Material :
Metal
Power Supply :
110v/220v
Max. Wheel Weight :
80kg
Warranty :
1Years
Screen :
32" & 19"
Suitable rims :
12"-23"
Keywords :
3D wheel aligner
Max. Rim Width :
w
Dual screen :
yes,
Max. Rim Diameter :
d
Port :
Guangzhou
Description
Metal 110V Tire Alignment Machine - High Accuracy with Free Alldata Updates

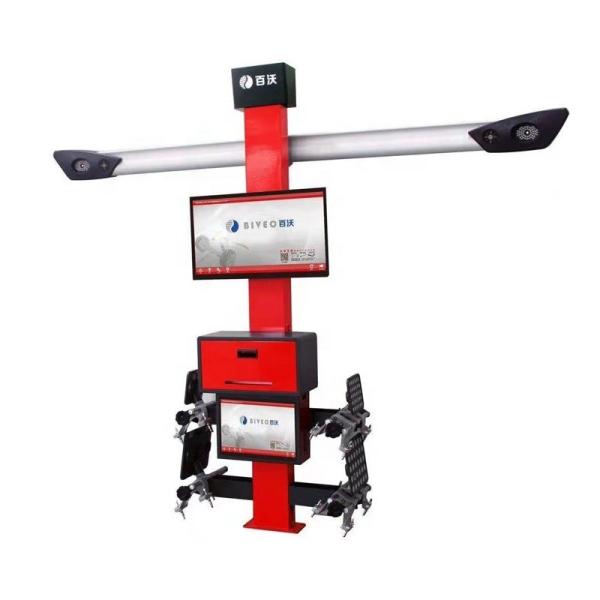

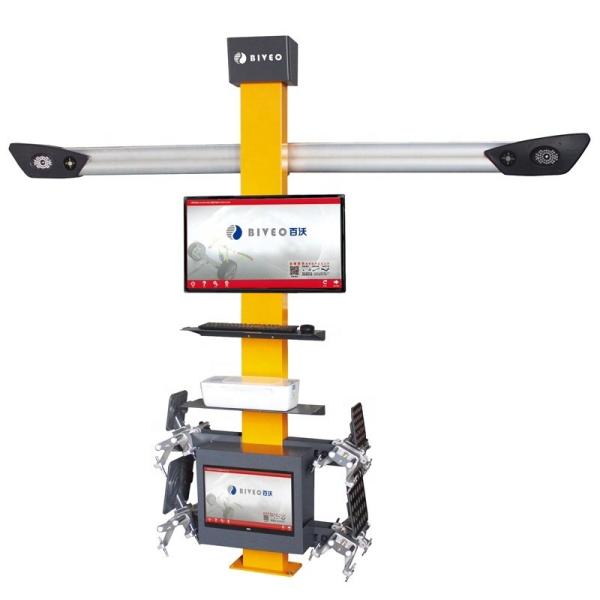

BIVEO four-wheel alignment system 3D car wheel aligner featuring high accuracy and complimentary Alldata updates.

Metal 110v Tire Alignment Machine High Accuracy And Free Alldata Update
Key Advantages
  • Manufactured by the same company behind Hoffman and Sunshine brands
  • Built-in overvoltage protection for enhanced safety
  • Central integrated unit with superior anti-interference capability
  • Special spring-free steering wheel fixer design for increased stability
  • USB 4.0 interface ensures rapid data transfer
  • Dupont power coating with up to 8 years lifespan
  • Hedy computer system integration
  • Self-development software with Auto.data database, including two free updates per year
  • Dual screen configuration: 32" main display and 19" secondary screen
  • 4-feet clamps for secure positioning
  • Components recommended function to solve complex problems and maximize profitability
Standard Configuration

Compact cabinet, big screens, Hedy computer, brand printer, target plate, pylon bracket, brake fixer, steering wheel fixer, wedge block, turntable, transition block of turntable, and 4.0 software.

Software Functions

Basic Functions: Camber, caster, Kingpin Inclination, toe angle, set back, thrust angle, and more.

Extended Functions: Axis deviation measurement, wheel deviation measurement, animation, single-wheel measurement, vehicle lift measurement function, straight steering wheel function, and alignment platform levelness detection function.

Technical Specifications
Measurement Project Accuracy Measurement Range
Display Accuracy 1´/1mm -
Camber ±2´ ±10°
Caster ±6´ ±20°
Kingpin Inclination ±6´ ±20°
Toe-in & Toe-out ±2´ ±20°
Set Back ±2´ ±5°
Thrust Angle ±2´ ±5°
Wheel Deviation ±2mm -
Axis Deviation ±2mm -
