8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume
8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume
8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume
8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume
8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume
8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume
8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume
8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume
Specifications
Place of Origin :
Guangdong, China
Brand Name :
WINTAI
Model Number :
WT-8F
Packaging Details :
standard export package
Supply Ability :
2000 Set/Sets per Month
Price :
$575.00/sets 1-199 sets
Model :
124 Spider (348_)
Year :
2016-
Type :
injector test and clean
Voltage :
V
Car Fitment :
Abarth
Power :
W
Applicable Models :
universal
Combination :
SDK
Warranty :
1 Years
size :
480mm(width)*500mm(depth)*460mm(height)
Weight :
42kgs
Test Liquid Tank Volume :
4L
Testing Tube Volume :
120 ml
Ultrasonic Frequency :
25 kHz
Ultrasonic Power :
100W
Maximum Testing Number of Cylinder :
8
Rotation Speed :
0~9950 r/min
Pulse Duration :
1~20 m
Injection Number of Times :
0~10000
Port :
Guangzhou/Shenzhen
Certification :
CE
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
15
Description

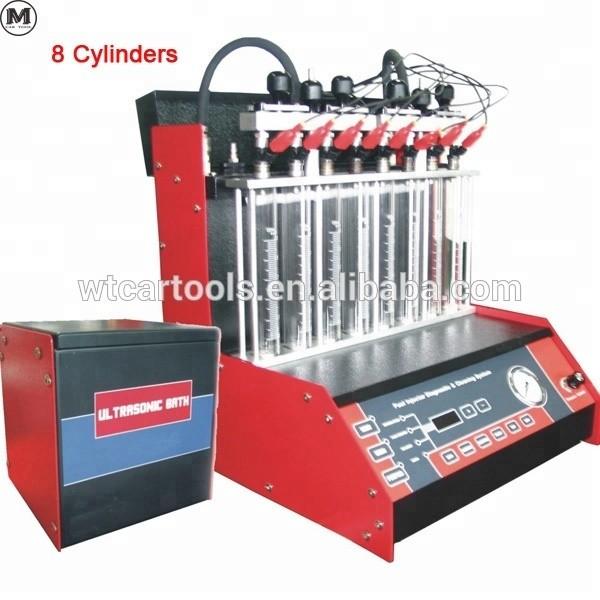

8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume
Product Overview

8 Cylinders Fuel Injector cleaner and tester machine designed for comprehensive diagnostic and cleaning operations with advanced programmable controls.

Technical Specifications
  • Appearance size: 480mm(width) × 500mm(depth) × 460mm(height)
  • Weight: 42 kg
  • Temperature Scope of Operation: -10℃ ~ +40℃
  • Work Voltage: 220 Volts AC 50 Hz
  • Test Liquid Tank Volume: 4L
  • Testing Tube Volume: 120 ml
  • Ultrasonic Frequency: 25 kHz
  • Ultrasonic Power: 100W
  • Maximum Testing Number of Cylinder: 8
  • Rotation Speed: 0~9950 r/min step 50 r/min
  • Pulse Duration: 1~20 ms step 0.1 ms
  • Injection Number of Times: 0~10000 step 50
  • Injection Time: 0~600sec step 1 sec
  • Oil Pressure: 0~640kpa(6.5kg/cm²)±9.8kpa(0.1kg/cm²) (adjustable)
Key Functions
  • Perform diagnostic of Flow/Equalization, leak tightness, Injection Visualization, cleaning and Reverse washing
  • Includes cables and adaptors for connection of multi-point injectors and CIS injectors
  • Micro processed equipment, totally programmable
  • Includes high pressure pump for test liquid with filter
  • Includes manometer of 0 - 6.5 Bar for test pressure reading
  • Electrical valve for test liquid emptying from glass tube
  • Engine chamber cleaning without disassembly (Available as optional)
  • 100 Watts / 25KHz ultrasonic diagnostic and cleaning of injectors
  • Capacity of stainless steel tank for 1 liter (8 liters available as optional)
Product Images
8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume 8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume 8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume 8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume 8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume 8 Cylinders Injector Tester And Cleaner Machine 4L Test Liquid Tank Volume
Detailed Specifications
Type injector test and clean
Voltage 220V
Power 100W
Applicable Models universal
Combination SDK
Place of Origin China, Guangdong
Brand Name WINTAI
Model Number WT-8F
Warranty 1 Years
Size 480mm(width)*500mm(depth)*460mm(height)
Weight 42kgs
Test Liquid Tank Volume 4L
Testing Tube Volume 120 ml
Ultrasonic Frequency 25 kHz
Ultrasonic Power 100W
Maximum Testing Number of Cylinder 8
Rotation Speed 0~9950 r/min
Pulse Duration 1~20 ms
Injection Number of Times 0~10000
