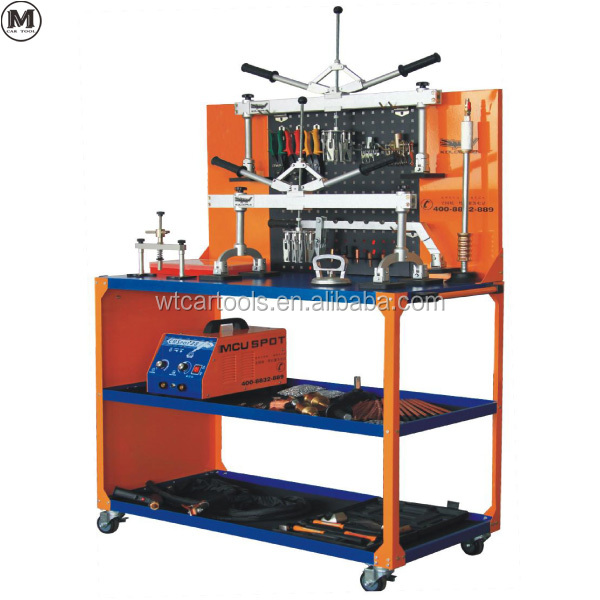

520mm Worktable Car Body Repair System 380V2PH For Collision Repair Needs
520mm Worktable Car Body Repair System 380V2PH For Collision Repair Needs
520mm Worktable Car Body Repair System 380V2PH For Collision Repair Needs
520mm Worktable Car Body Repair System 380V2PH For Collision Repair Needs
Specifications
Weight :
110, 110kgs
Bench Height :
1070mm
Max. Lifting Capacity :
nm
Worktable Length :
720mm
Worktable Width :
520mm
Warranty :
1 Years, 1year
Input Voltage :
380V2PH/220V1PH
Input Current :
15A
Input Power :
14KVA
Instantaneous maximum working current :
3800A
Max Spot Welding Thickness(single side) :
0.8+1.0
Cable material :
100% copper
Machine Size :
720*520*1070mm
Suitable for repair :
threshold, the pedal, roof, side wall
Port :
Guangzhou/Shenzhen
Place of Origin :
Guangdong, China
Brand Name :
WINTAI
Model Number :
CRSPOT-28K
Packaging Details :
standard export package
Supply Ability :
1000 Set/Sets per Month
Price :
$850.00/sets >=1 sets
Certification :
CE
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
15
Description
520mm Worktable Car Body Repair System 380V2PH For Collision Repair Needs
Product Overview

Auto body panel beating fast repair system for quick collision repair, specifically designed for challenging vehicle areas that traditional machines struggle to access.

Key Features
  • Ideal for repairing thresholds, pedals, roofs, side walls and other hard-to-reach areas without removing internal components
  • Automatic voltage conversion between 220V and 380V with maximum welding current up to 4000A
  • Silicon controlled rectifier technology with high precision timing system for stepless current adjustment
  • High-quality silicon steel and copper core cable main transformer for extended repair sessions

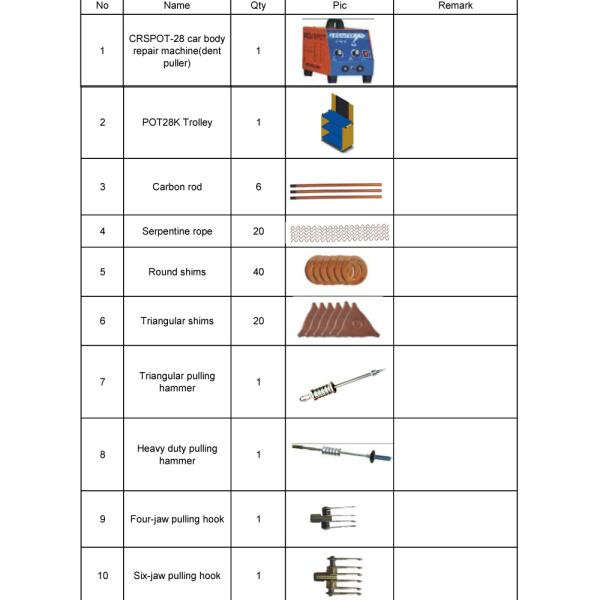

  • Standard configuration includes two power supply sockets and two pneumatic tool sockets
520mm Worktable Car Body Repair System 380V2PH For Collision Repair Needs 520mm Worktable Car Body Repair System 380V2PH For Collision Repair Needs 520mm Worktable Car Body Repair System 380V2PH For Collision Repair Needs 520mm Worktable Car Body Repair System 380V2PH For Collision Repair Needs
Technical Specifications
Specification Value
Weight 110 kgs
Bench Height 1070 mm
Worktable Length 720 mm
Worktable Width 520 mm
Place of Origin Guangdong, China
Brand Name WINTAI
Model Number CRSPOT-28K
Warranty 1 Year
Input Voltage 380V 2PH / 220V 1PH
Input Current 15 A
Input Power 14 KVA
Instantaneous Maximum Working Current 3800 A
Max Spot Welding Thickness (single side) 0.8 + 1.0 mm
Cable Material 100% Copper
Machine Size 720 × 520 × 1070 mm
Suitable for Repair Thresholds, pedals, roofs, side walls
