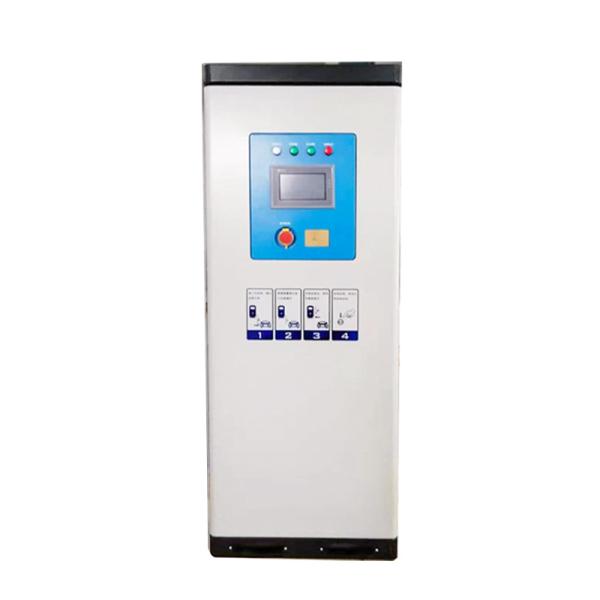

120KW Commercial EV DC Charger OCPP 1.6 Ethernet/Wifi/4G
120KW Commercial EV DC Charger OCPP 1.6 Ethernet/Wifi/4G
120KW Commercial EV DC Charger OCPP 1.6 Ethernet/Wifi/4G
120KW Commercial EV DC Charger OCPP 1.6 Ethernet/Wifi/4G
Specifications
Brand Name :
Xidao
Model Number :
XD-DC1000-120KW
Certification :
CE
Place of Origin :
sichuan
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, T/T
Supply Ability :
5000 per month
Delivery Time :
15-30 work days
Packaging Details :
Wooden case packaging
Product name :
120KW DC Commercial EV Charger
AC input voltage :
380V±15%
Output Voltage and Current :
200～1000V;0～200A
Output Power :
Double gun 120KW
Communication interface :
Ethernet/Wifi/4G
Protection Level :
IP54 IK10
Certificate :
CE
Description

120KW DC Commercial EV Charger OCPP 1​.6 Ethernet Wifi 4G

DC fast charging piles are suitable for installation in urban fast charging stations , transportation hub charging stations, highway charging stations , etc. it has the charactenistics of efficient charging. safety and time saving.

Features

1.connection protection, shutdown protection and human-machine interface operation authority protection.
2. Reduce energy loss, in line with energy saving and emis- sion reduction requirements, saving electricity costs for customers
3. A variety cf control modes to facilitate maintenance and related experiments, a variety of cherging modes to meet the different needs of customers
4.Low input harmonics - reduce pollution to the grid, higher grid adaptability Wide input voltage, wide output voltage range - suitable
for most different input and output voltage situations.
5. Wide operating temperature range-/de operating tempe- rature range to meet most harsh working environments Hol-swappable-suitable for easy use and reduced mainte- nance costs
6. Real-time display of communication, charging operation and battery status through HMI
7. Flexible billing function Multiple billing methods and time-of-day billing to meet customers' diversfied charging needs

Product Parameters

Project Parameter index Remarks
Model

XD-DC1000-120kW-EU
Dimensions 1866.5x715x559mm height*width*depth
AC input voltage 380V±15% Three-phase five-wire system
AC input frequency 45Hz～65Hz
rated power 120kW
The output voltage DC200～1000V(300-1000V constant power)
Output current 0～200A
power factor ≥0.99 Output condition above 50% P0
efficiency ≥96% peak efficiency
Measurement method DC metering Accuracy class 0.5
cooling method forced air cooling
Protection class IP54
Operating temperature -20℃～50℃ Derating work above 50℃, stop working at 70℃
Relative humidity ≤95 % no condensation
Communication Interface 4G, RS485, CAN, Ethernet (optional)
Installation method floor-mounted fixed
Start method Scan code to start

Details Images

120KW Commercial EV DC Charger OCPP 1.6 Ethernet/Wifi/4G

120KW Commercial EV DC Charger OCPP 1.6 Ethernet/Wifi/4G

120KW Commercial EV DC Charger OCPP 1.6 Ethernet/Wifi/4G

In the future, we will continue to focus on the application of new energy technology, operate with integrity and work hard to create a green world.

120KW Commercial EV DC Charger OCPP 1.6 Ethernet/Wifi/4G
