The TN05 adopts an integrated design with a ​​built-in precision shunt​​, offering exceptional space efficiency as its core advantage. Optimized for embedding into various battery pack interiors, it eliminates the need for external shunt placement, making it an ideal solution for achieving compact and lightweight battery package designs.

With a broad voltage measurement range of ​​8V to 80V​​ and continuous current monitoring capability of ​​75A​​, the TN05 accurately caters to small and medium-sized energy storage devices. By tracking voltage and current in real time and integrating capacity calculations, it provides critical battery data independently of the BMS, effectively helping prevent overcharge and over-discharge to ensure battery safety and longevity.

The ​​ultra-low power design​​ of the TN05 is critical for its application in battery packs. Consuming only ​​15mA​​ at maximum brightness and as low as ​​0.7mA​​ in standby mode, its operational power draw is negligible. This minimal consumption significantly extends battery shelf life during storage and enhances endurance during usage intervals.

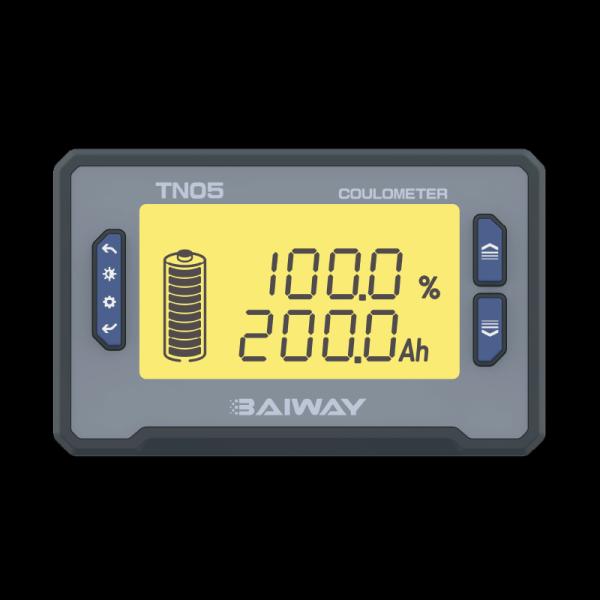

The screen can ​​simultaneously display two key parameters​​ (e.g., real-time voltage and current) alongside an easily readable ​​battery percentage indicator bar​​. This intuitive interface enables users to quickly and accurately assess remaining capacity and battery health, greatly improving the end-user experience.

• Built-in 50A shunt
• Segment code display
• Low-power standby mode
• Compact size with integrated shunt
• Adjustable backlight brightness

Battery monitors can be used in any scenario involving battery packs. They continuously track the status of the battery pack and display key parameters such as remaining charge, current voltage, current, power, and other relevant data. This allows users to monitor battery health in real time, helping to protect the battery and extend its lifespan.

It is compatible with mainstream battery types on the market, such as lead-acid batteries, lithium-ion batteries, lithium iron phosphate batteries, sodium batteries, etc.

We provide a one-year warranty period. After one year, if the product is damaged due to its own quality issues, we will continue to offer repair or replacement services based on the specific circumstances. For cases where returns or exchanges are not possible due to reasons such as shipping costs, replacements will be sent with the next order.

Please reach out to us via the contact information on our "Contact Us" page.
