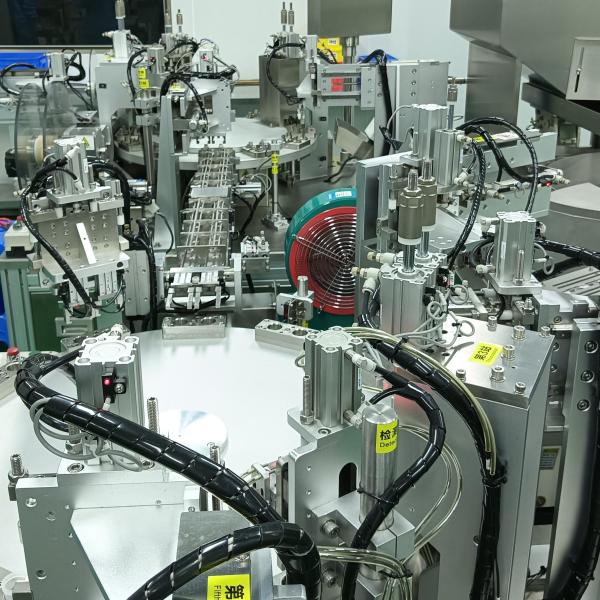

Automated iodophor cap assembly machine, capacity configuration can be configured according to customer requirements
Automated iodophor cap assembly machine, capacity configuration can be configured according to customer requirements
Automated iodophor cap assembly machine, capacity configuration can be configured according to customer requirements
Automated iodophor cap assembly machine, capacity configuration can be configured according to customer requirements
Specifications
Brand Name :
Sencan
Model Number :
SC-PT-515
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3 sets per month
Delivery Time :
3-4 months
Packaging Details :
wooden case
Application :
Medical product cap assembly
Qualified rate :
99%
Name :
Iodophor cap assembly machine
Control System :
PLC
Material :
Stainless steel + aluminium alloy
Capacity :
1200-10000 per/hour
Description

Main categories

1.Medical Device Assembly Machine

2.Drug Packaging Assembly Machine

3.Food Beverage Consumables Assembly Machine

4.Daily Use, Electronic&Metals Assembly Machine

5.General Machine

6.Cap Assembly Machine

7.Whole Solution Production Line

Features

1. Used for automatic assembly of iodophor cap for peritoneal dialysis external extension tube end, infection cap for infusion connector and catheter.

2. Customized rotary or loop line turntable type machine according to customers' actual capacity.

3. Each assembly process is equipped with detection to ensure high quality qualified products.

4. Accuracy of iodine/disinfectant liquid adding can be controlled within 0.005ml.

5. High sponge loading precision, 1/3 of the upper surface can be flat.

6. Automatically welding aluminum foil or assemble caps for sealing option (according to customer requirements). Alu foil in rolls can be cut automatically inline, or ready cut foil being welded directly.

7. Machine made of stainless steel and aluminum alloy, in accordance with GMP requirements.

8. Main power from servo motor + reducer, induce intermittent motion which make fixtures in static status during assembly, provide high rate of qualified product.

9. PLC control system, touch screen HMI operation.

Can be connected with pouch packaging machine to form automatic production line.

Properties

Applicable products

 Iodine mini cap, iodophor cap, disinfection cap
Production speed 1200-10000pph (according to customer’s requirement)
Rate of qualified product Above 98%(dependent on semi-product quality)
Rate of operation rate Above 95%
Power source AC380V, 50Hz, 4kw; air pressure: 7kg/m3
Dimension Actual size varied with different production speed
Weight About 1850kg
Operator 1set/person
