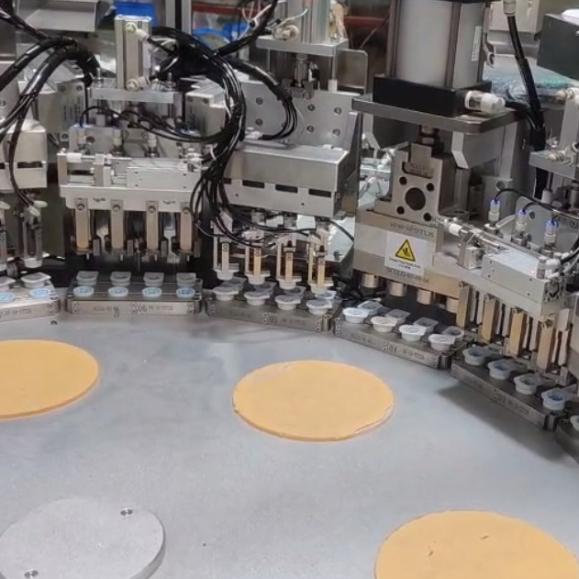

Heli Cap 3 Parts Product Assembly Machine With Touch Screen
Heli Cap 3 Parts Product Assembly Machine With Touch Screen
Specifications
Brand Name :
SENCAN
Model Number :
SC-TP-638
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate the price according to actual situation
Payment Terms :
T/T,L/C
Supply Ability :
3 sets
Delivery Time :
90 days
Packaging Details :
Wooden case
Applicable Products :
Heli cap for milk
Warranty :
1 year
Material :
Stainless Steel
Operation Mode :
Automatic
Active Force :
Servo moter+ reducer
Operating Interface :
Touch Screen
Main Power :
Servo motor
Warranty Period :
1 year
Product Capacity :
4000-12000 caps per hour
Speed Adjustment :
Frequency conversion
Suitable Cap Types :
Plastic caps, metal caps, screw caps
Operator :
Single or double
Packing :
Wooden case
Safety Device :
Emergency stop button
Power Source :
AC380V,50Hz,4kw/hr
Description

Features

1. Turntable or loop production line on customer's actual capacity.
2. Main power comes from servo motor + reducer, which makes intermittent motion providing static fixtures for accurate assembly during processing, achieving high rate of qualified product.
3. Equipped with automatic detection function, following each assembly process, to achieve 100% qualified products.
4. All materials are made of stainless steel and aluminum alloy, in compliance with GMP requirements.
5. Equipped with automatic orientation function, avoid jam between screw and teeth, reduce defection during insertion, ensure correctness of assembly.
6. Torque test can be added inline.
7. Automatic pressing or tightening can be realized according to the product structure.
8. PLC control system, touch screen human-machine interface operation.
9. Simple maintenance and convenient operation. Low requirement for Operator's technical ability. Spare parts replacement time short.

Properties

Applicable products: Helicap, 3 parts caps closures requiring orientation and screwing assembly

Production speed: 3000-12000pcs/hr (according to customer’s requirement)

Rate of qualified product: Above 99%(depends on raw material quality)

Rate of operation rate: Above 95%

Power source: AC380V, 50Hz, 4kw/hr

Dimension: Actual size varied with different production speed

Weight: About 2850kg

Operator: 1set/person

Properties

Applicable products

Helicap, 3 parts caps requiring orientation and screwing assembly

Production speed

3000-12000pcs/hr (according to customer’s requirement)

Rate of qualified product

Above 99%(depends on raw material quality)

Rate of operation rate

Above 95%

Power source

AC380V,50Hz,4kw/hr

Dimension

Actual size varied with different production speed

Weight

About 2850kg

Operator

1set/person
