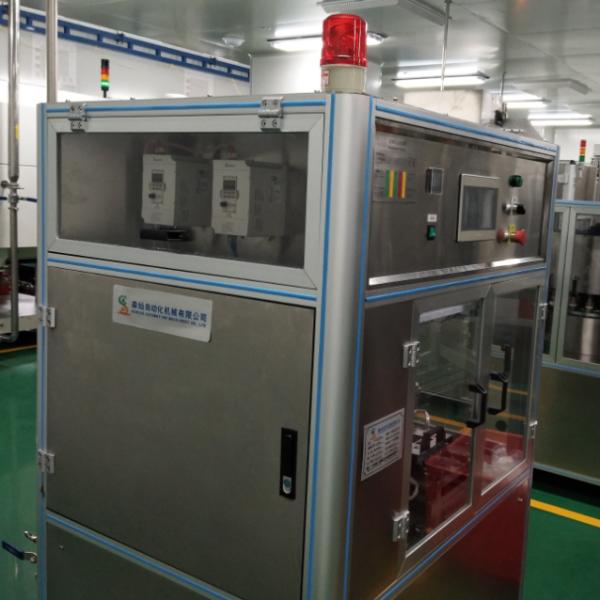

Vision Inspection Machine 280-300pcs/min LCD Touchscreen
Vision Inspection Machine 280-300pcs/min LCD Touchscreen
Specifications
Brand Name :
SENCAN
Model Number :
SC-TP-758
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate the price according to actual situation
Payment Terms :
T/T,L/C
Supply Ability :
3-20 sets
Delivery Time :
90 days
Packaging Details :
Wooden case
Packing :
Wooden case
Material :
Stainless steel
Inspection Type :
Visual inspection
Operation :
HMI
Air Pressure :
0.6-0.8MPa
Lighting Source :
LED
Warranty :
1 year
Compressed Air :
5kg/m3
Air Pressure Gauge :
SMC
Maximum Inspection Speed :
280-300 pieces/minute
Frequency :
50Hz/60Hz
Inspection Method :
Video Imaging
Capacity :
4500-20000
Display :
LCD Touchscreen
Description

Features

1. For products requiring appearance check, physical inspection, replace traditional artificial eyesight inspection.

2. False detection rate not exceed 0.3%.

3. Inspection scope: insufficient injection molding (lack of material), injection deformation, injection molding bubbles, foreign bodies on surface exceed 0.3mm, missing parts, incorrect assembly, inaccurate location of parts, assembly deformation.

4. Automatic feeding, high-speed 360 degrees’ inspections without blind angle, automatic elimination of dirty products.

5. Conveyor belt exit can be equipped with electrostatic removal device.

6. Parts and control mode meet GMP requirements for pharmaceutical packaging material production.

7. PLC automatic control system. Touch screen HMI operation.

Properties

Applicable products

All products requiring appearance inspection

Production speed

15000-20000pcs/hr (according to customer’s requirement)

Rate of qualified product

Above 98%(depends on semi-product quality)

Rate of operation rate

Above 95%

Power source

AC380V, 50Hz, 2kw, compressed air:7kg/m3

Dimension

Actual size varied with different production speed

Weight

1000kg

Operator

3set/person
