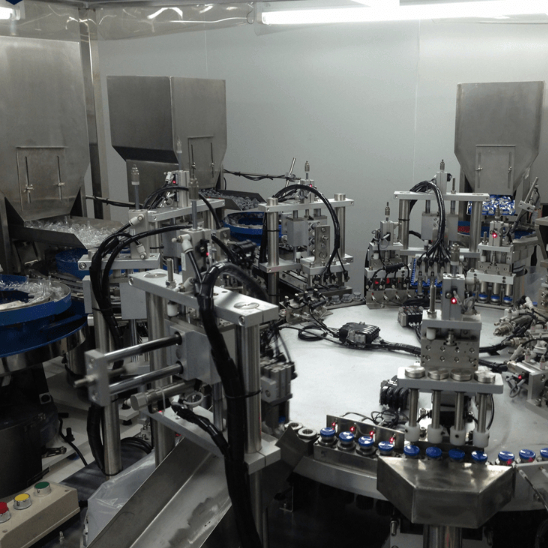

Fully Automatic IV Bag Spike Ports Assembly Machine with 99% Qualified Rate and 8000-15000pcs/hr Speed
Fully Automatic IV Bag Spike Ports Assembly Machine with 99% Qualified Rate and 8000-15000pcs/hr Speed
Fully Automatic IV Bag Spike Ports Assembly Machine with 99% Qualified Rate and 8000-15000pcs/hr Speed
Fully Automatic IV Bag Spike Ports Assembly Machine with 99% Qualified Rate and 8000-15000pcs/hr Speed
Specifications
Brand Name :
SENCAN
Model Number :
SC-TP-825
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1set
Price :
Negotiate price according to actual situation
Payment Terms :
T/T,L/C
Supply Ability :
2-20 sets
Delivery Time :
90 days
Packaging Details :
Wooden case
Frequency :
50Hz
Manipulator :
Self-made
Assembly Type :
Fully Automatic
Voltage :
220V
Features :
High Efficiency, Easy to Operate
Speed :
High speed
Cap Type :
All medical need assembly products
Assembly Method :
Rotary Indexing
Active Force :
Servo motor or cylinder
Packing :
Wooden case
Operation Method :
Touch screen control
Capacity :
100 units per minute
Automation Grade :
Automatic
Operator :
1 set/person
Description

Features

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.

2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.

3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.

4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.

5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.

6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.

7. PLC control system, touch screen HMI operation.

Properties

Applicable products

Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag

Production speed

8000-15000pcs/hr (according to customer’s requirement)

Rate of qualified product

Above 99%

Rate of operation rate

Above 95%

Power source

AC380V,50Hz,4kw/hr

Dimension

L3500×W3400×H1800(mm) Actual size varied with different production speed

Weight

About 3000kg

Operator

1set/person
