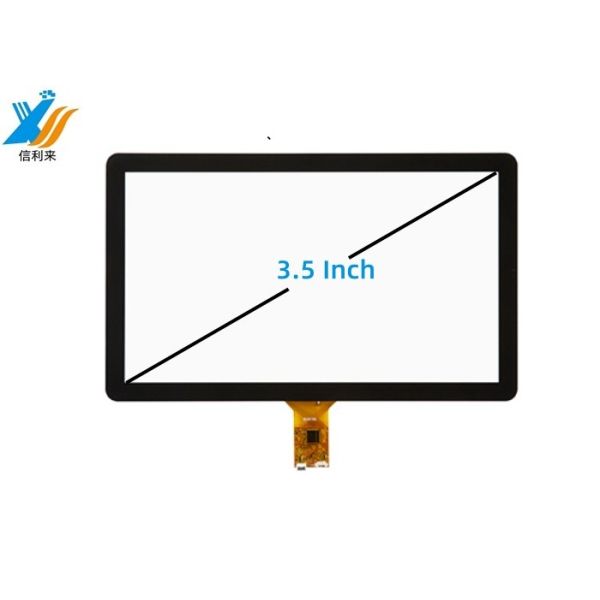

3.5 Inch GFF PCAP Touch Panel with USB/I²C Interface and 6H Glass
3.5 Inch GFF PCAP Touch Panel with USB/I²C Interface and 6H Glass
3.5 Inch GFF PCAP Touch Panel with USB/I²C Interface and 6H Glass
3.5 Inch GFF PCAP Touch Panel with USB/I²C Interface and 6H Glass
3.5 Inch GFF PCAP Touch Panel with USB/I²C Interface and 6H Glass
3.5 Inch GFF PCAP Touch Panel with USB/I²C Interface and 6H Glass
Specifications
Brand Name :
XLLTOUCH
Model Number :
3.5 Inch
Place of Origin :
China
MOQ :
50 Pieces
Delivery Time :
15 Working Days
Click Times Test :
10 Million Times
Payment Terms :
T/T
Packaging Details :
Protective foam tray and export carton
Size :
3.5 Inch
Connection type :
COB, COF
Light transmission :
>85%
Operating System :
Windows, Android, Linux, iOS and macOS
R-angle :
Customizable
Storage Temperature :
-30°C to +80°C
IC :
EETI, ILITEK, LG, Goodix, FT, WDT, SIS, NVIDIA, GT, Silead, SIS And So On
Surface Hardness :
6H
Operating Temperature :
-20°C to +70°C
Interface type :
USB, I²C, RS232, FFC and Dupont Cable
Reflect Time :
<3 ms
Product Name :
Touch Screen Panel
Multi-touch :
Up to 10-Point Touch
Products Status :
New
Organization :
Cover Glass + LOCA + ITO Film (GFF)
Description

3.5 Inch GFF PCAP Touch Panel — Product Overview: This compact projected capacitive touch panel uses a GFF structure for embedded industrial, medical and handheld equipment. Key Features: up to 10-point touch; USB and I²C interfaces; RS232, FFC and cable customization; 6H surface hardness; light transmittance above 85%; response time below 3 ms; COB and COF connection options. Operating temperature is -20°C to +70°C and storage temperature is -30°C to +80°C. Customization: XLLTOUCH supports custom cover glass, FPC, controller board, logo, interface, waterproof touch, glove touch and AG/AR/AF surface treatment. Engineering Support: Send us your LCD model, drawing and interface requirements for evaluation.
