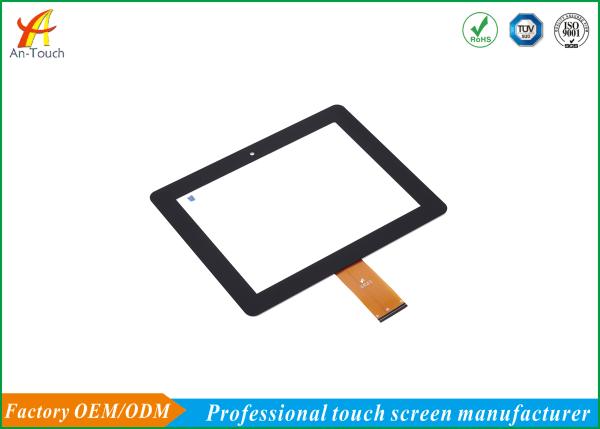

High Sensitivity POS Touch Panel For Shopping Mall Information Kiosk
High Sensitivity POS Touch Panel For Shopping Mall Information Kiosk
Specifications
Brand Name :
an-touch
Model Number :
AC-C1217-10.4
Certification :
ROHS SGS ISO9001
Place of Origin :
China
MOQ :
negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union, D/P, Paypal
Supply Ability :
50000/PCS/Month
Delivery Time :
5-8 Work Day
Packaging Details :
Standard packing with carton
Name :
POS Touch Panel
Screen Diagonal :
10.4 inch
Application :
Shopping Mall Information Kiosk
Surface Hardness :
>6H
Outline size :
248.6*192.0mm
View Area :
211.0*158.4mm
IC Controller/IC :
ILITEK 2511
Feature :
High Sensitivity
Description

High Sensitivity POS Touch Panel For Shopping Mall Information Kiosk

POS Touch Panel Application:

1. Shopping Mall Information Kiosk
2. Open touch TV/PC
3. Touch POS
4. LCD/LED touch monitor
5. Touch all-in-one pc
6. Touch Kiosk and other devices

POS Touch Panel Development process:

  1. Receive customer's technical files, including PCAP drawing, LCD specification.
  2. Recommend standard products or customize products based on customer's requirements.
  3. Offer engineering drawing for confirmation and fill in project kick-off form.
  4. Make samples according to the confirmed drawing.
  5. Debug the samples based on the information on kick-off form, keep the FW.
  6. Send the samples to customers for confirmation. Offer all the technical supports with which customer will let the touch panels work well.
  7. Pilot production.
  8. Mass production.

POS Touch Panel Parameters

Item Specification
Part Number AC-C1217-10.4
Structures Cover Glass+ITO Glass
Surface Hardness >6H
Outline size 248.6*192.0mm
View Area 211.0*158.4mm
IC Controller/IC ILITEK 2511
Operating temperature -20℃~70℃
Storage temperature -30℃~80℃
Total Thickness 2.0±0.15mm
Transmittance 86% Min
Interface Mode USB/IIC/RS232

High Sensitivity POS Touch Panel For Shopping Mall Information Kiosk

About US

Shenzhen An-Touch Technology Co., Ltd. Is a professional manufacturer of touch screen and a high-tech enterprise.Our products are widely used in industrial equipment,POS machine,self-service terminals,ATM,smart hone,medical equipment and so on.

An-touch is engaged in the research,development,production,sale and service of capacitive touch screen,has automatic production lines and the sealed dust-free workshops .The products are inspected in strict accordance with the quality management system. Quality management becomes an essential part of operation. The objective of An-Touch is to become the most reliable supplier of touch screen, special products, high value-added products and touch solutions in the world
