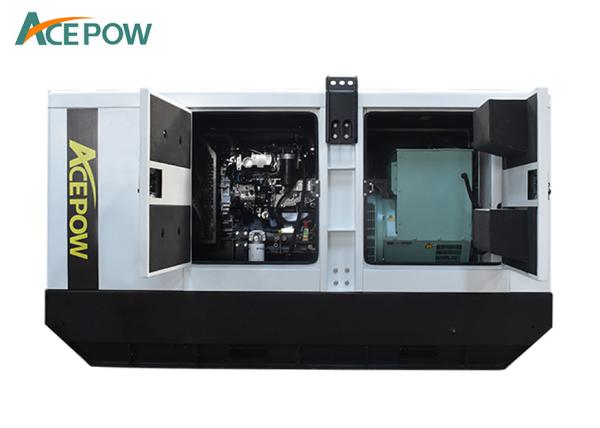

Four Stroke 100KVA 80KW Water Cooled Silent Diesel Generator
Four Stroke 100KVA 80KW Water Cooled Silent Diesel Generator
Four Stroke 100KVA 80KW Water Cooled Silent Diesel Generator
Four Stroke 100KVA 80KW Water Cooled Silent Diesel Generator
Specifications
Brand Name :
ACEPOW
Model Number :
APF-100
Certification :
CE,ISO, SASO
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10000SETS/YEAR
Delivery Time :
25 DAYS
Packaging Details :
NUDE PACKING,PLYWOOD CASE
Engine 1 :
Standard Air Filter
Engine 2 :
Electronic Governor
Engine 3 :
Radiator Core Guard
Warranty :
12 Months/1000 Hours
Engine brand :
Fawde
Type :
silent diesel generator
Rated power :
80KW/100KVA
Color :
Customized
Generator type :
Silence Generator Set,Silent(super Silent)or Open Gene
Fuel tank :
Base fuel tank
Description

Noiseless Super Silent Diesel Generator 100kva 80kw Fawde Engine Water Cooled Silent Generator Set

Features :

1) Brand-new engine,w/start motor.
2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR.
3) Auto control panel with LCD display.
4) Skid-mounted bottom 8 hours fuel tank.
5) Extemal recessed emergency stop button for extra safety.
6) Optional: Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system.

Engine
* Four stroke, water cooled
* 12V and 24V stater and charge alternator
* Cooling radiator and fan
* Flexible fuel connection hoses and manual oil sump drain valve
* Exhaust silencer
Alternator
* Brushless, single bearing, flexible disc
* Protection class: IP23
* Self-exciting and Self-regulation
Canopy
* All metal canopy parts painted by electrostatic polyester power paint
* Convenient to lift and move
* Easy to maintenance and operate

MODEL APF-100
PRIME POWER (KVA/KW) 100/80
STANDBY POWER(KVA/KW) 110/88
Rated voltage(V) 400/230
Rated speed(rpm) 1500
Rated frequency(Hz) 50
Power factor 0.8
Ambient temperature(C) 40
Altitude(m) 1000
Connection type 3 phase 4 wires
ENGINE MANUFACTURER FAWDE
Model 4DX23-65D
Rated Power(kW) 53
No. of cylinders & configuration In-Line 4 cylinders
Method of operation 4-stroke
Speed regulation Mechanical governor
Starting system DC 24V Electronic start
Cooling method Closed-circuit cooling system
Total displacement(L) 3.86
Compression ratio 17.0:1
BoreXStroke(mm) 102*118
100% Load fuel consumption(L/h) 11
ALTERNATOR MANUFACTURER STAMFORD
Number of Phase 3
Connection Type 3Phase and 4Wires
Number of Bearing 1
Power Factor 0.8
Protection Grade IP23
Terminal 12
Winding/ Pitch 100% Coppe 2/3 Pitch
Cooling Fan Cast alloy aluminum
Exciter Type Brushless, Self-Exciting
Insulation Class, Temperature Rise H/H
Telephone Influence Factor( TIF) TIF <50 / THF<2%
Total Harmonic TGH/THC <1.5% at no load / <5% at load
Voltage Regulation, Steady State
Sustained Short-Circuit Current 300%(3 in): 10s
CONTROL SYSTEM UK DEEP SEA SERIES
