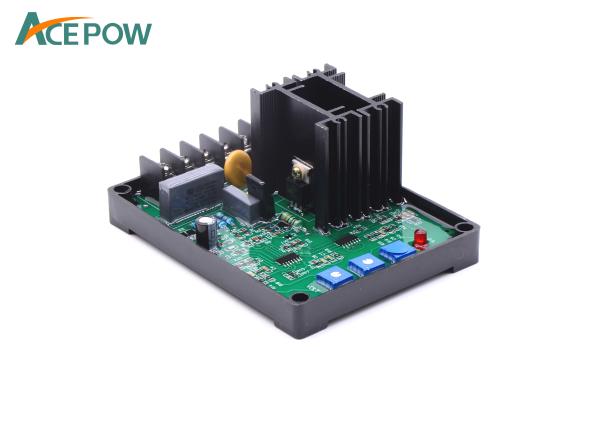

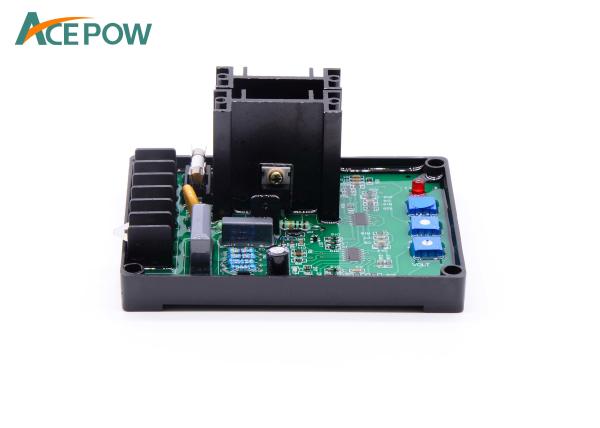

Brushless 12A 10S Generator AVR , AVR Automatic Generator
Brushless 12A 10S Generator AVR , AVR Automatic Generator
Brushless 12A 10S Generator AVR , AVR Automatic Generator
Brushless 12A 10S Generator AVR , AVR Automatic Generator
Specifications
Brand Name :
ACEPOW
Model Number :
GAVR-12A
Certification :
CE,ISO, SASO
Place of Origin :
Fujian, China
MOQ :
1 PCS
Price :
Negotiate
Payment Terms :
L/C, D/P, T/T
Supply Ability :
10000SETS/YEAR
Delivery Time :
25 DAYS
Packaging Details :
CARTON BOX
Materials :
Plastic
type :
Generator AVR
After-sales service provided :
Video technical support,Online support,Free spare parts
Avr type :
Brushless Type Generator Avr
Voltage :
82~200VA
Feature :
High Efficiency
Model number :
GAVR-12A
Description

GAVR 12A Generator AVR 12A Automatic Voltage Regulator Brushless Alternator Parts

AVR GAVR 12A is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator.

- AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.

Features
• < + 1% Regulation
• 110/220/400 VAC Programmable Input
• Rugged Compact Design
• With Under Frequency Protection
• Soft Start Voltage Ramping
• EMI Suppression
• Built-in Hihg Capacity 8Amp Fuse

"Universal 8 Amp 1/2 Wave Self Excited
Dip-Switch Programmalbe Automatic
Voltage Regulator"

SensingInput Voltage 180-260VAC, lphase2wire
Power Input Voltage 180-260VAC, lphase2wiie
Output Voltage Max.90VDC@240VACinput
Current Continuous 4A
Intermittent 7A for 10SEE.
Resistance Min.12QMax.100Q
Volts Regulation <±1%(with 4%engine governing)
VoltageBuild-up Residualvolts at AVR teminal>5VAC
External Volts Adjustment ± 7%with IK Q Iwatt trimmer
Sotf Start Ramp Time 2sec.
Unit Power Dissipation Max.8Watt
EMI Suppression Internal Electromagnetic Interference Filtering
Thermal.Drift 0.03%per°C chage in AVR ambient
Under Frequency Protection 60Hz system presets knee point at 55Hz
(Factory Settings) 50Hz system presets knee point at 45Hz
