Bag Pet Food Palletizer System Packaging Production Line Equipment

LWT provides you with carton automatic packaging production line equipment, including carton steering mechanism, weighing and testing mechanism, labeling, palletizing machine, etc.) and provides you with a one-stop solution for reducing costs and increasing efficiency, which is suitable for food, daily chemicals, medicine and other industries.

Automatic packaging production line process:

Carton steering conveying-weighing and testing-printing and labeling-robot palletizing

Introduction to core equipment:

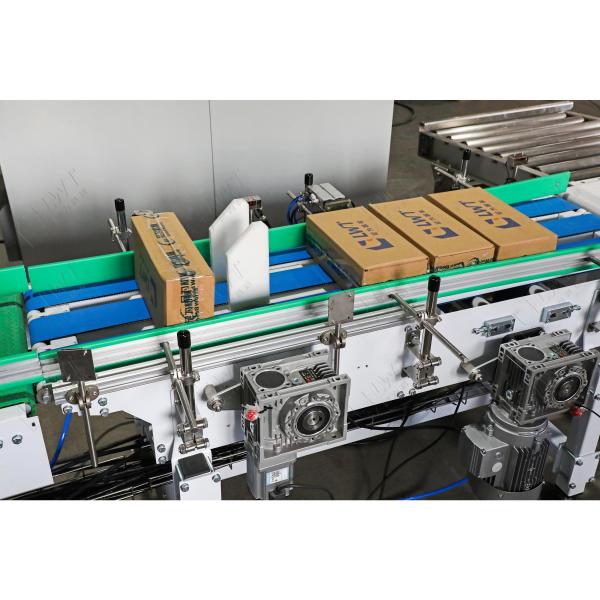

① Carton steering conveying system

Function: Roller conveyor belt carton flips 90°, automatically aligns, and automatically connects upstream and downstream equipment.

Technical highlights: infrared induction positioning, accuracy ±0.5mm; variable frequency speed regulation, suitable for 600-1200 boxes/hour production capacity.

② Weighing and testing machine

Core parameters: weighing range 50g-25kg, accuracy ±0.1%.

Function: Automatically remove unqualified products and support overweight/underweight/empty box detection.

③ Printing and labeling machine

Application scenario: Support multi-specification label printing, including variable data (batch/expiration date/barcode).

Material compatibility: kraft paper, PP synthetic paper, waterproof labels, etc.

Differentiation function: visual verification system, automatic detection of label misalignment/blur; docking ERP system, real-time update of printing instructions.

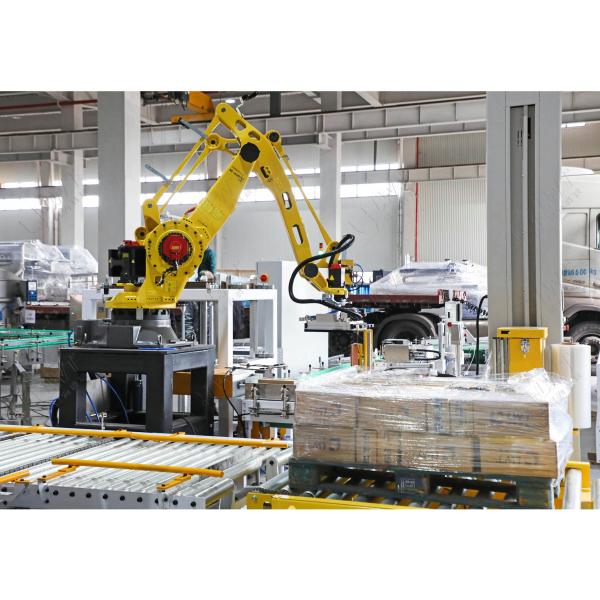

④ Robotic palletizing system

The robotic palletizer has an adaptive stacking mode and can easily cope with various material characteristics and palletizing requirements.

Technical parameters

Load capacity: 3kg-1300kg, widely applicable to a variety of materials, including boxed, bagged, barreled, etc.

Palletizing height: 2 meters (including pallet), which can be flexibly adjusted according to actual needs.

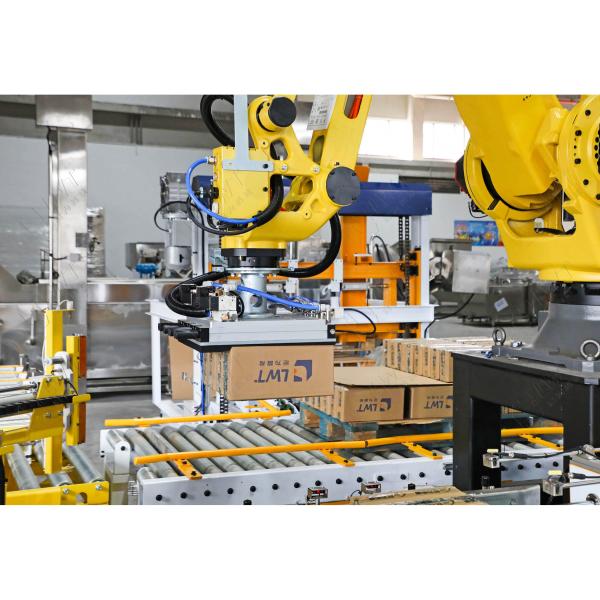

Fixture design: customized according to material characteristics, 2 or 4 boxes can be stacked on the pallet at a time to improve palletizing efficiency.

Cardboard function: The fixture has a built-in cardboard suction function to ensure that cardboard can be accurately stacked between every two layers of cartons and enhance stacking stability.

Control system: The whole line control system integrates intelligent management to achieve full automation of palletizing operations.
