Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Specifications
Place of Origin :
Shanghai
Brand Name :
LWT
Packaging Details :
Standard export package with PVC film protect first and then load in wooden case or plywoodcase.
The upward mark will be posted on the wooden case.Or can be as you request.
Supply Ability :
10 Set/Sets per Month
Price :
$20,000.00/sets >=1 sets
Certification :
CE、ISO9001、SGS
Type :
Multi-Function Packaging Machine, Multi-Function Packaging Machine
Production Capacity :
5bag/min, 20bag/min, 7bag/min, 6bag/min, 40bag/min, 9bag/min, 25bag/min, 8bag/min, 15bag/min, 10bag/min, 50bag/min, 30bag/min
Applicable Industries :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Weight (KG) :
500
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lank
Condition :
New
Function :
FILLING, Wrapping, Capping, Sealing
Application :
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Textiles, Cigarettes, Tobacco
Packaging Type :
Stand-up Pouch, Bags, Film, Pouch
Packaging Material :
Plastic, Paper, Metal
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
380V 50Hz,3PH (Customized)
Dimension(L*W*H) :
2800*1500*1900mm/can be customized
Warranty :
3 years
Key Selling Points :
High-accuracy
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
3 years
Core Components :
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Engine, Gearbox
Product name :
Automatic Production Line
Main Function :
Weighing Forming Filling Sealing
Packing speed :
30-80bags/min
Material :
Stainless Steel 304/316
Bag type :
3 Sides Seal/Back Seal
After-sales Service Provided :
Online Support
Usage :
Bag Making Filling Sealing
Keyword :
Packaging Machinery Equipment
Port :
Shanghai
Description

Product Show:

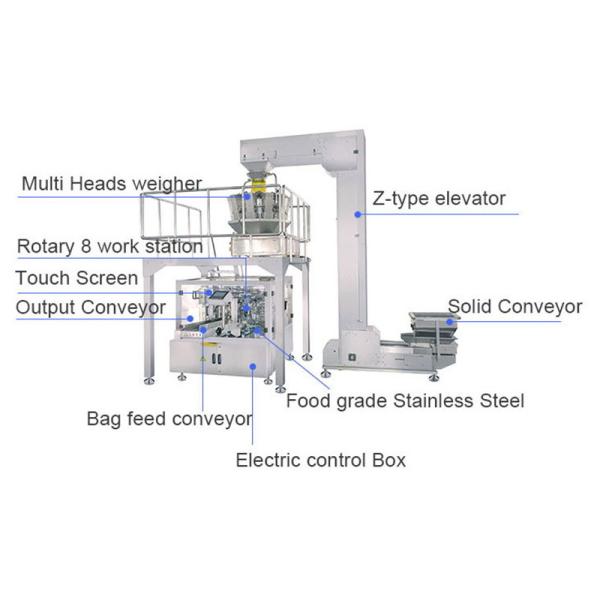

Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic

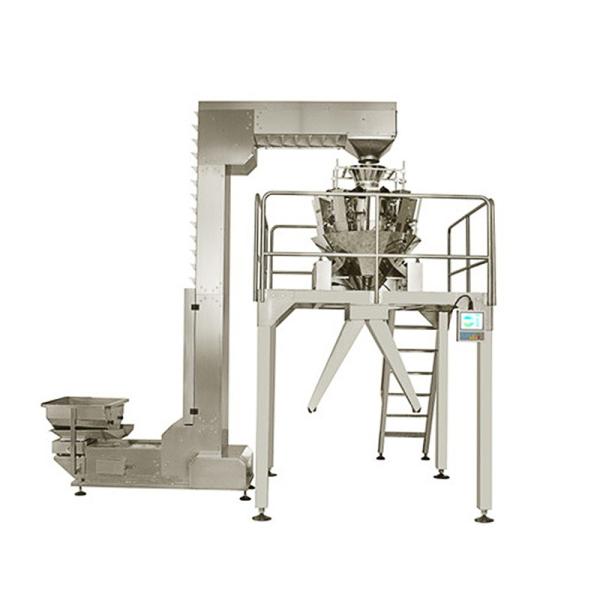

Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic

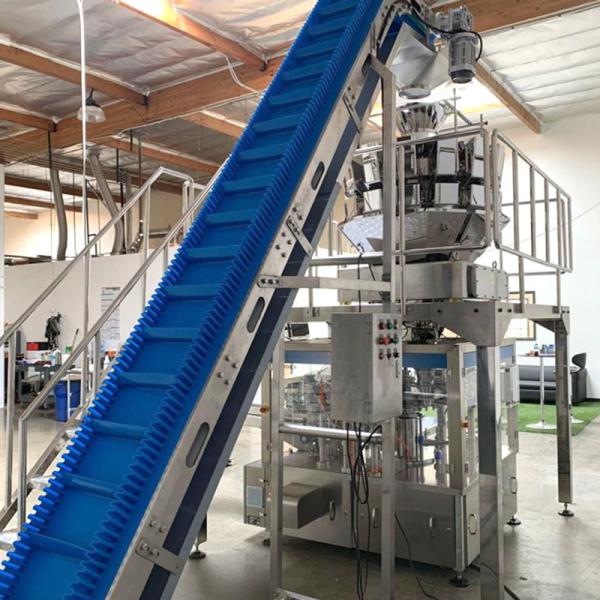

Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic

Workflow

1. Upper bag. 2 Bag opening. 3 Blanking. 4 Add liquid. 5 Reserved. 6 Reserved. 7 Ferry bag. 8 Reserve one (vacuum); 1. Bag connection. 2 Close the cover. 3 Primary vacuum. 4 Secondary vacuum. 5 tertiary vacuum. 6 Four times of vacuum. 7 sealing, 8 Seal cooling. 9 Bleed. 10 Open the lid and take out the bag

Specification

Main technical parameter
Food forming,filling material, vacuum sealing, printing date, cutting automatically.
Pouch Type
Stand-up bag, Gusseted bag, Handle bag, Spout bag, Paper bag, Zipper bag (for option)
Working Station
Six working station
Pouch
100-450mm
Capacity
Up to 50 bags/ min (product property and filling range count)
Filling Range
0-3000g
Voltage
C380V/50Hz, three phases (or customize according to specific demands)
Power
3.5KW
Air Sourse
0.4 CBM/ min (offered by the user)

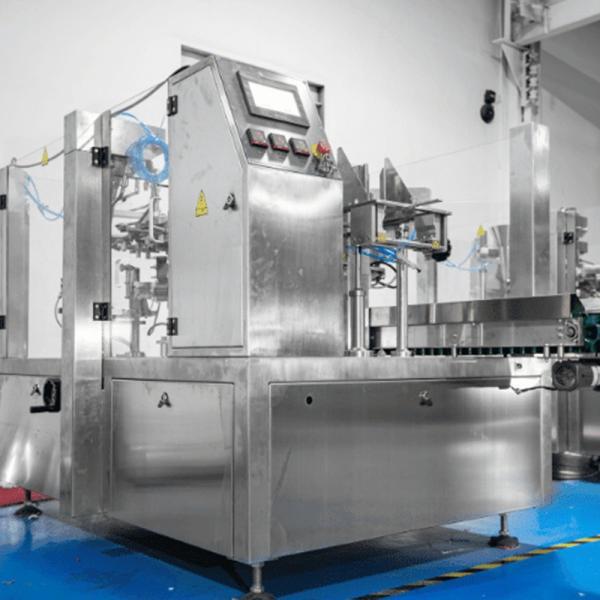

Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
Automatic packing machine
14 heads Multi-heads filling
Type
LWT-720
Model
LWT-14
Bag length
100-420mm(L)
Max weight capacity(once)
10-2000g
Bag width
80-350mm(W)
Weighing Accuracy(g)
±0.5-1.5g
Max width of roll film
720mm
Max. Weighing Speed
120Bags/Min (depends on weight)
Packing speed
5-50bags/min
Hopper Volume
2500 mL
Air consumption
0.65mpa
Control Panel
7" LCD Touch Screen
Gas consumption
0.4m³/min
Options
Dimple Plate/Timing Hopper/Printer/Rotary Top Cone
Power voltage
220V/50HZ
Driving System
Step Motor
Power
4KW
Power Requirements
220V / 1500W / 50/60HZ / 10A
Dimension
(L)1500mm×(W)1170mm×(H)1650mm
Packing Dimension(mm)
1720(L) ×1100(W) ×1230(H)
Weight of machine
750Kg
Gross WGT
490KG

Main performance and characteristics

1. The automatic vacuum packaging machine is composed of two separate rotary bodies (filling system and vacuum system respectively);

2. Convenient operation: it adopts PLC touch screen control and man-machine interface operation system, which is intuitive and convenient to operate;
3. Convenient adjustment: fully automatic Just input the required parameters from the man-machine interface, and all parts of the packaging machine can be adjusted to the part of the required command;
4. High degree of automation: meet the requirements of full-automatic vacuum, realize unmanned in the process of weighing and packaging, and give an automatic alarm of war barrier;
5. The perfect prevention system can intelligently detect whether the bag is opened and whether the bag is complete. If it is not suitable to add materials, it will not be heat sealed Do not waste bags and materials and save costs;
6. The equipment meets the hygienic standard of food processing machinery, and the contact part between the equipment and materials is processed with 304 stainless steel or other materials that meet the requirements of food hygiene.
7. Use prefabricated packaging bags with high sealing quality and improve the grade of finished products;
8. Scope of applicable packaging materials: a variety of measuring scales can be selected to package small fish, pickles, nuts, fried goods, spicy puffing, liquid and other materials.
Product Application
Applications & Bag types: It is new-updated compact version pouch pick fill seal packing machine for various pre-made bags such as pillow bags, gusset bags,zipper bags etc.

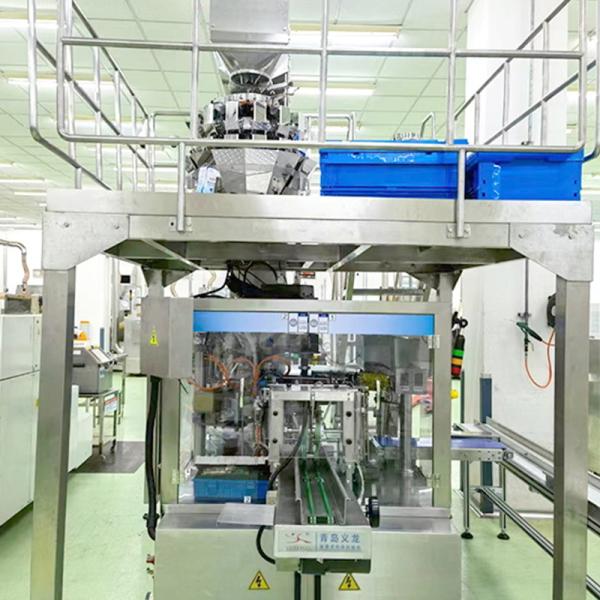

Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
As a cost saving solution, it is ideal for a lot of applications such as coffee, frozen foods, cookies,
cereals, nuts,flowers,candies, liquid etc. It can also be interfaced with other equipment for use with turnkey lines.

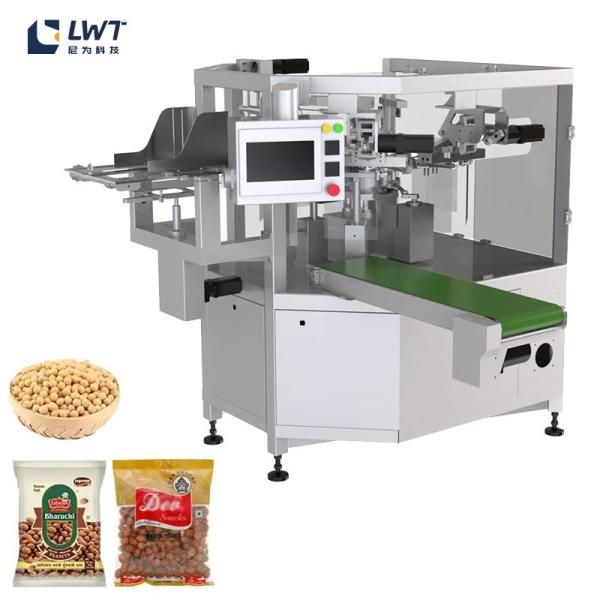

Vertical Bagged Dog Food Pellets Multifunctional Packaging Machine Fully Automatic
