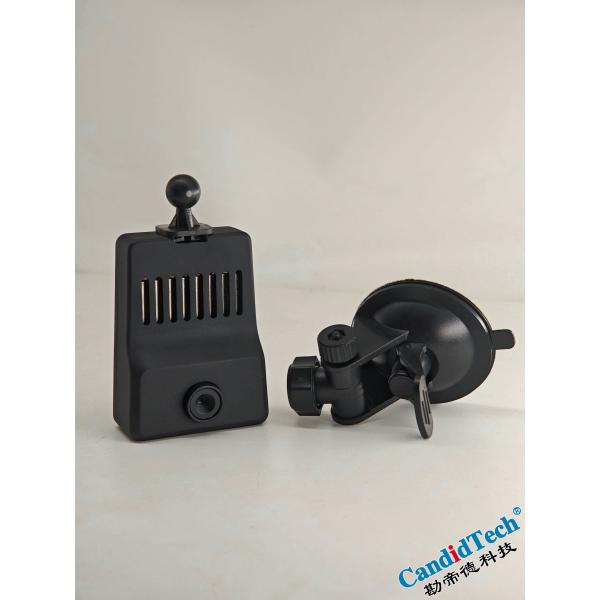

2MP LVDS Automotive ADAS Front Collision Warning System with 1080P Resolution for Enhanced Safety
2MP LVDS Automotive ADAS Front Collision Warning System with 1080P Resolution for Enhanced Safety
2MP LVDS Automotive ADAS Front Collision Warning System with 1080P Resolution for Enhanced Safety
2MP LVDS Automotive ADAS Front Collision Warning System with 1080P Resolution for Enhanced Safety
2MP LVDS Automotive ADAS Front Collision Warning System with 1080P Resolution for Enhanced Safety
2MP LVDS Automotive ADAS Front Collision Warning System with 1080P Resolution for Enhanced Safety
Specifications
Cold start time :
≤6s
Output voltage :
12V
Resolution :
1080P
Lens :
4G
Static current :
<0.4MA
Brand Name :
Customized
MOQ :
300
Price :
Negotiatable
Payment Terms :
L/C,T/T
Supply Ability :
100000PCS/Month
Video input :
LVDS
Description
2MP LVDS Automotive ADAS with Front Collision Warning (FCW)
2MP LVDS Wide Range of Applications Automotive ADAS Front Collision Warning (FCW)
Proven Results: After implementation by a logistics company, fatigue driving accidents decreased by 53% month-on-month through precise targeting of real transportation scenarios.
Traffic Jam Scenario: When vehicle speed is less than 20km/h and the front vehicle moves more than 3 meters, immediate start reminder is triggered to reduce rear-end collisions and honking disputes.
High-Speed Scenario: FCW collision warning automatically activates when speed exceeds 30km/h, providing a 3-second buffer time that gives drivers a golden reaction window. Combined with lane departure alarm, it effectively curbs the risk of fatigue-related lane crossing for freight drivers.
2MP LVDS Automotive ADAS Front Collision Warning System with 1080P Resolution for Enhanced Safety
Product Features
1. Lane Departure Warning
2MP LVDS Automotive ADAS Front Collision Warning System with 1080P Resolution for Enhanced Safety
2. Front Collision Warning
2MP LVDS Automotive ADAS Front Collision Warning System with 1080P Resolution for Enhanced Safety
Simplified Management
  • Zero Learning Cost: Built-in self-calibration algorithm automatically identifies road parameters after installation
  • Flexible Control: Open safety threshold customization (e.g., school buses can be tightened to 2.5 meters safety distance)
  • Multi-Terminal Collaboration: SDK outputs alarm data to fleet management platform, with violations automatically archived
2MP LVDS Automotive ADAS Front Collision Warning System with 1080P Resolution for Enhanced Safety
ADAS Specifications
Hardware Parameters
Parameter Specification
Camera Sensor Sony IMX 307
HFOV 45°
VFOV 35°
Frame Rate 30fps
Lens 4G
Resolution 1080P
Operating Voltage 9V-16V
Operating Current <1A
Static Current <0.4mA
Video Input LVDS
Video Output NA
Output Voltage 12V
Cold Start Time ≤6s
Operating Temperature -40℃ to 85℃
Storage Temperature -40℃ to 95℃
Software Specifications
Function Point Function Function Description
AI Function Reminder for vehicle ahead too close Speed > 30Km/h, 1.6 seconds in advance
Reminder for vehicle ahead starting Speed < 20Km/h, vehicle ahead > 3 meters away Alarm
Reminder for collision avoidance (FCW) High speed: 3 sec in advance
Low speed: 1.5 sec in advance
Driving on the lane Lane detection Detects whether vehicle deviates from lane line
Calibration Self-calibration Fast calibration, supports repeated calibration
Factory calibration Meets original factory requirements
The hardware layer directly addresses fleet pain points: static current <0.4mA eliminates battery loss, and 12V universal voltage is suitable for diesel/electric vehicles. Currently deployed in over 2,000 online ride-hailing vehicles and school buses nationwide, reducing safety cost per kilometer to 0.2 yuan!
For more information about innovative features and functions of Candid's Automotive Infrared ADAS, please visit www.candidelectronics.com.
Our current product lines cover vehicle cameras for different applications including: rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products, CMS (Camera Monitor System), OMS (Occupant Monitor System), DMS (Driver Monitor System), and similar products. Please email: litmea.mo@candidelectronics.com for more details.
