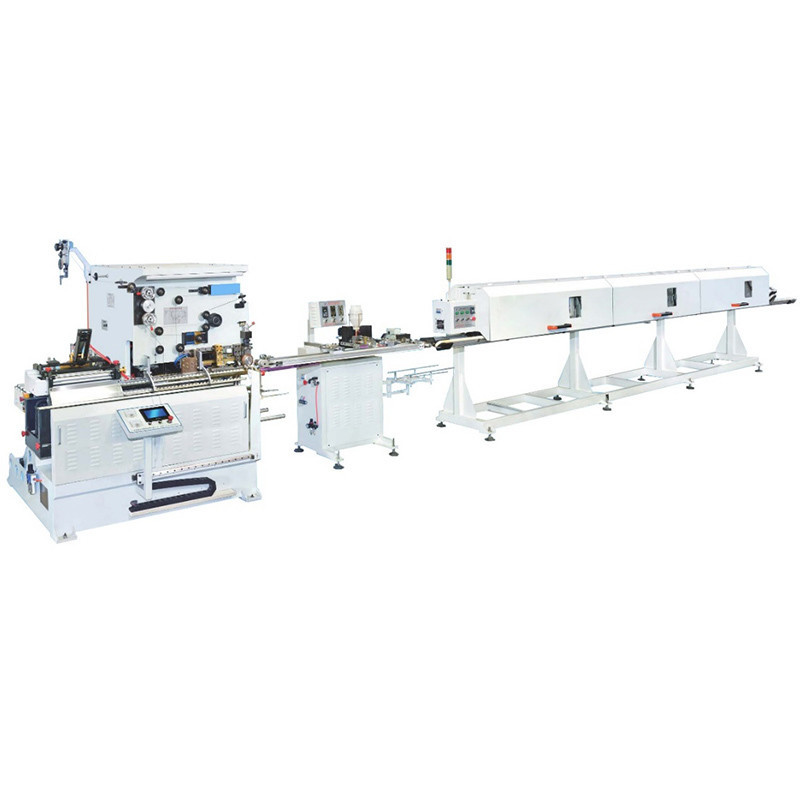

Fully Automatic General Can Making Line
Fully Automatic General Can Making Line
Specifications
Packaging Details :
Wooden Case
Brand Name :
Sunnranpack
Wire Speed :
6-18m/Min
Certification :
CE
Can Diameter :
200-260/260-290
Price :
Negotiable
Power Capacity :
26Kw
Delivery Time :
90working days
Place of Origin :
China
Can Height :
180-450
MOQ :
1set
Can Material :
Tinplate,Ni-plate,SS
Description
Features:
  • The tinplate paint can making craft is a specialized process that involves several steps to produce high-quality paint cans suitable for packaging various types of paints and coatings.
  • The first step in the process is the preparation of the tinplate sheets. These sheets are cut into appropriate sizes and shapes for the cans and are then coated with a layer of tin to prevent corrosion and enhance the can’s resistance to external factors.
  • Next, the tinplate sheets are formed into cylindrical shapes using specialized machinery. The edges of the sheets are carefully aligned and joined together to create a seamless body for the can.
  • Once the can body is formed, it undergoes a series of coating processes. This involves applying a layer of primer to the interior and exterior surfaces of the can body to enhance its resistance to corrosion and improve adhesion of the paint or coating. The can body is then baked at high temperatures to cure the primer and ensure its durability.
  • After the primer is cured, the can body undergoes a second coating process. This involves applying a layer of paint or coating to the exterior surface of the can body. The paint or coating is typically applied using specialized machinery, such as a spray booth, to ensure even coverage and a smooth finish.
  • Once the paint or coating is applied, the can body undergoes a final curing process. This involves baking the can body at high temperatures to cure the paint or coating and ensure its durability.
  • After the curing process, the can body is ready for assembly. The can ends or lids are attached to the can body using specialized machinery, and the can undergoes a thorough inspection to ensure quality and integrity.
  • Finally, the cans are packaged and prepared for distribution. They are typically stacked, wrapped, and palletized for easy transportation and storage.
  • Overall, the tinplate paint can making craft is a precise and meticulous process that ensures the production of high-quality paint cans suitable for packaging various types of paints and coatings.
Parameters:
Wire Speed Can Diameter Can Height Can Material Power Capacity
6-18m/Min 200-260/260-290 180-450 Tinplate,Ni-plate,SS 26Kw
Internal & External Coating Machine
Coating Speed Can Diameter Coating Width Power Consumption Power Source
10-35m/min 52-300 10-14 0.6Kwh 220V
Induction Wven
Conveying speed Heater Qty. Power Cooling Water
9-20m/min 3 x 2m/Heater 380V, 50Hz >30L/min>400Kpa/cm2<20℃
