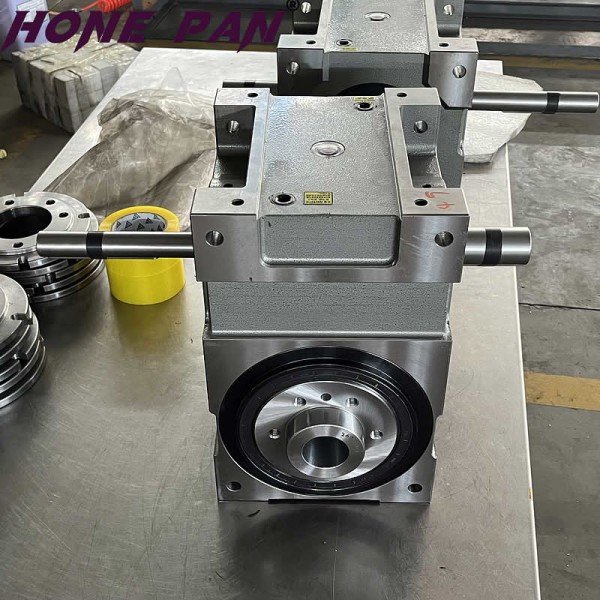

DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
Specifications
Payment Terms :
T/T
Packaging Details :
PLYWOOD BOX
Price :
USD 200–4,500 per set
Positioning accuracy :
±30 arcsec (±15 arcsec)
MOQ :
＞1000＄
Delivery Time :
standard product: 5-30 work days; Customized products: depends on the specific requirements.
Model Number :
DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\H
Brand Name :
HonePan
Supply Ability :
5000 SET/MONTH
Place of Origin :
China
Certification :
ISO9001
Description
Programmable Rotary Indexer with DFH Series Fixed Index Cam Indexer and Hollow Flange Type Design for Standard Indexing Drives
Product Overview

DFH Series Fixed Index Cam Indexer / Standard Indexing Drives

The DFH Series builds upon the proven DF Series design with the added benefit of a hollow center configuration. This innovative feature allows cables, pipes, or rods to pass directly through the unit, making it particularly suitable for disc-type machining tools that require integrated wiring or fluid line routing.

Key Features
  • Hollow center design for cable, pipe, and rod routing
  • Based on reliable DF Series indexing technology
  • Ideal for disc-type machining applications
  • Supports integrated wiring and fluid line systems
  • Robust construction for industrial environments
Available Models by Size Classification

The DFH Series is categorized based on the distance between input and output shafts, cabinet dimensions, and load capacity requirements.

  • 45DFH
  • 60DFH
  • 70DFH
  • 80DFH
  • 100DFH
  • 110DFH
  • 125DFH
  • 140DFH
  • 150DFH
  • 180DFH
  • 200DFH
  • 250DFH
45DFH Specifications
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 128
Allowable Axial Load of Output Shaft C2 kgf 138
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 83
Maximum Bending Moment of Input Shaft C4 kgf 108
Maximum Torque of Input Shaft C5 kgf-m 3.8
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m² 3.2*10⁻⁴
Positioning Indexing Accuracy sec. ±30
Weight kg 9
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
60DFH Specifications
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 138
Allowable Axial Load of Output Shaft C2 kgf 140
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 97
Maximum Bending Moment of Input Shaft C4 kgf 148
Maximum Torque of Input Shaft C5 kgf-m 5.8
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m² 1.9*10⁻³
Positioning Indexing Accuracy sec. ±30
Weight kg 15
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
70DFH Specifications
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 218
Allowable Axial Load of Output Shaft C2 kgf 298
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 146
Maximum Bending Moment of Input Shaft C4 kgf 105
Maximum Torque of Input Shaft C5 kgf-m 9
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m² 6*10⁻³
Positioning Indexing Accuracy sec. ±30
Weight kg 20
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
80DFH Specifications
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 327
Allowable Axial Load of Output Shaft C2 kgf 417
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 345
Maximum Bending Moment of Input Shaft C4 kgf 255
Maximum Torque of Input Shaft C5 kgf-m 24
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m² 9*10⁻³
Positioning Indexing Accuracy sec. ±30
Weight kg 35
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
100DFH Specifications
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 500
Allowable Axial Load of Output Shaft C2 kgf 650
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 400
Maximum Bending Moment of Input Shaft C4 kgf 395
Maximum Torque of Input Shaft C5 kgf-m 34
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m² 4*10⁻³
Positioning Indexing Accuracy sec. ±30
Weight kg 55
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
110DFH Specifications
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 555
Allowable Axial Load of Output Shaft C2 kgf 695
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 475
Maximum Bending Moment of Input Shaft C4 kgf 410
Maximum Torque of Input Shaft C5 kgf-m 39
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m² 2.8*10⁻²
Positioning Indexing Accuracy sec. ±30
Weight kg 68
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
125DFH Specifications
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 630
Allowable Axial Load of Output Shaft C2 kgf 850
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 520
Maximum Bending Moment of Input Shaft C4 kgf 560
Maximum Torque of Input Shaft C5 kgf-m 65
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m² 0.28
Positioning Indexing Accuracy sec. ±30
Weight kg 78
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
140DFH Specifications
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 755
Allowable Axial Load of Output Shaft C2 kgf 995
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 545
Maximum Bending Moment of Input Shaft C4 kgf 705
Maximum Torque of Input Shaft C5 kgf-m 98
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m² 0.11
Positioning Indexing Accuracy sec. ±30
Weight kg 92
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
150DFH Specifications
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 760
Allowable Axial Load of Output Shaft C2 kgf 1000
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 550
Maximum Bending Moment of Input Shaft C4 kgf 710
Maximum Torque of Input Shaft C5 kgf-m 100
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m² 0.11
Positioning Indexing Accuracy sec. ±30
Weight kg 94
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
180DFH Specifications
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1195
Allowable Axial Load of Output Shaft C2 kgf 1495
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1095
Maximum Bending Moment of Input Shaft C4 kgf 1955
Maximum Torque of Input Shaft C5 kgf-m 336
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m² 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 225
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
200DFH Specifications
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 1210
Allowable Axial Load of Output Shaft C2 kgf 1510
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1105
Maximum Bending Moment of Input Shaft C4 kgf 1965
Maximum Torque of Input Shaft C5 kgf-m 341
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m² 0.39
Positioning Indexing Accuracy sec. ±30
Weight kg 240
DFH series (Hollow Flange Type Cam Indexer with ±30 arcsec Positioning Accuracy and 60000 Hours Service Life for Industrial Applications)
250DFH Specifications
Item Symbol Unit Value
Allowable Radial Load of Output Shaft C1 kgf 3195
Allowable Axial Load of Output Shaft C2 kgf 4145
Allowable Torque of Output Shaft Ts kgf-m Refer to Torque Table
Allowable Radial Load of Input Shaft C3 kgf 1545
Maximum Bending Moment of Input Shaft C4 kgf 3795
Maximum Torque of Input Shaft C5 kgf-m 775
Moment of Inertia of Input Shaft (Note 1) C6 kgf-m² 1.98
Positioning Indexing Accuracy sec. ±30
Weight kg 695
