Specifications
Supply Ability :
5000 SET/MONTH
POSITIONAL ACCURACY :
±30 arcse (±15 arcse)
Hardness :
50HRC~72HRC ，Customizable
COLOUR :
DEFAULT GRAY (CUSTOMIZABLE)
Dimensions :
Customizable
Delivery Time :
4 DAYS-20 DAYS
Price :
200 $/SET~4500 $/SET
Longest lifespan :
60000 hours
Place of Origin :
CHINA
Brand Name :
HONEPAN
Certification :
ISO9001
REPOSITIONING ACCURACY :
±4 arcse(±2 arcse)
Warranty :
1year
Packaging Details :
PLYWOOD BOX
Cam material :
Default 42CrMoAl，Customizable
Model Number :
DS\DF\DA\DT\DFH\DFS\BT\DB\P\HBY\HBYS
MOQ :
≥1000 $
Payment Terms :
T/T
Description
4-Axis Cam Rotary Table

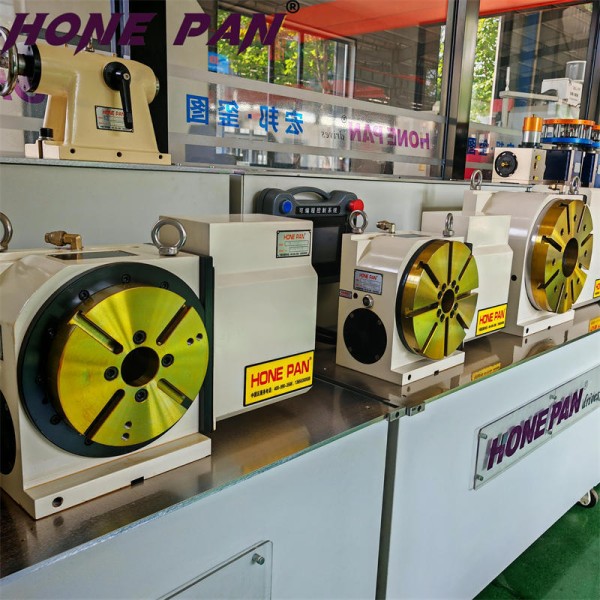

4-Axis Cam Driven Rotary Table Systems
The HONEPAN TB Series Roller Gear Cam Rotary Table represents a breakthrough in high-precision positioning technology. Featuring a patented roller gear cam mechanism, this industrial automation solution delivers exceptional rigidity, superior load capacity, and outstanding thermal stability—making it the ideal choice for demanding applications including 5-axis machining, robotic welding, and precision assembly operations.
TB Series: Roller Gear Cam Rotary Table
Key Applications
  • 5-Axis Machining Centers
  • Robotic Welding Systems
  • Precision Assembly Automation
  • Industrial Manufacturing Processes
Performance Advantages
  • Patented roller gear cam mechanism for superior precision
  • Exceptional rigidity and structural stability
  • High load capacity for demanding industrial applications
  • Excellent thermal stability in continuous operation
  • Revolutionary positioning accuracy for automation systems

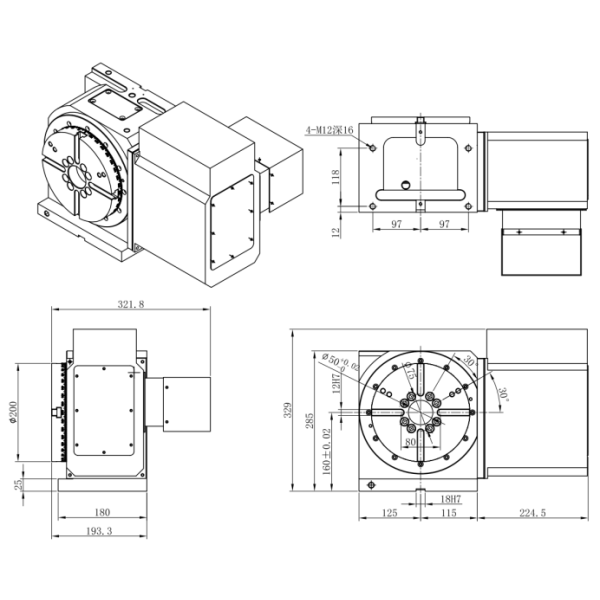

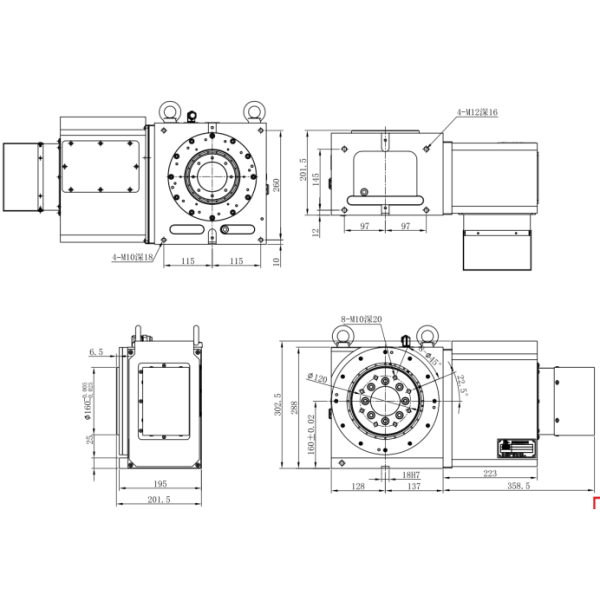

TB200
Item Specification
Worktable Diameter φ200 (unit: mm)
Worktable Center Hole Diameter φ50 (unit: mm)
Spindle Through-Hole Diameter φ55 (unit: mm)
Dial T-Slot Width 12 (unit: mm)
Positioning Key Width 18 (unit: mm)
Brake Operating Pressure (kgf/cm2) Hydraulic Pressure: 30~35 kgf/cm2
Applicable Ambient Temperature 10~50 (unit: °C)
Minimum Indexing Angle 0.001°
Gear Ratio 1:60
Indexing Accuracy 20 arcseconds
Repeatability Accuracy 4 arcseconds
Vertical Load / With Tailstock 100KG / 200KG
Horizontal Allowable Load 200KG
Total Weight 82.4KG
Maximum Rotational Speed 50 r.p.m.
Allowable Cutting Torque (kgf-m) 44
Optional Servo Motors FANUC (α iF4/β iS8); MITSUBISHI (HG-104/154); SIEMENS (1FK7060)
Operating Mode Vertical & Horizontal Dual-Use

4 Axis Cam CNC Rotary Indexer Table With High Precision Positioning And Patented Roller Gear Cam Mechanism

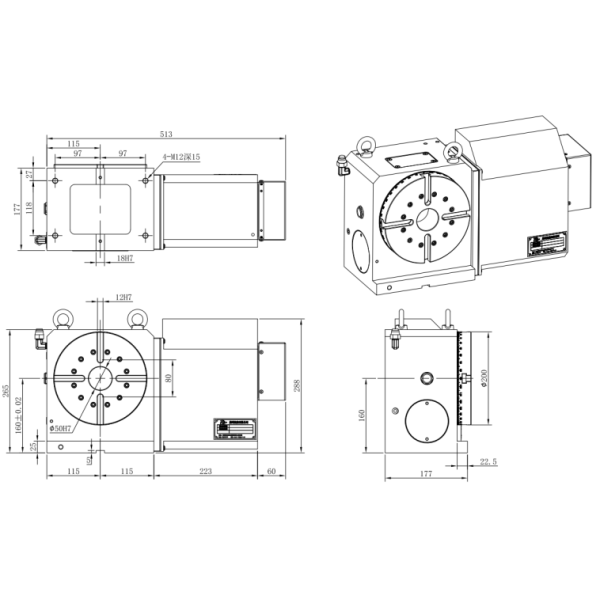

TB200A
Item Specification
Worktable Diameter φ200 (unit: mm)
Worktable Center Hole Diameter φ50 (unit: mm)
Spindle Through-Hole Diameter φ55 (unit: mm)
Dial T-Slot Width 12 (unit: mm)
Positioning Key Width 18 (unit: mm)
Brake Operating Pressure (Pneumatic Pressure) 6 kg
Minimum Indexing Angle 0.001°
Gear Ratio 1:72
Indexing Accuracy 20 arcseconds
Repeatability Accuracy 4 arcseconds
Vertical Load 70KG
Horizontal Allowable Load 150KG
Total Weight 70KG
Allowable Cutting Torque (kgf-m) 40
Optional Servo Motors FANUC (α iF4/β8); MITSUBISHI (HF-104); SIEMENS (1FK7060)
Operating Mode Vertical & Horizontal Dual-Use

4 Axis Cam CNC Rotary Indexer Table With High Precision Positioning And Patented Roller Gear Cam Mechanism

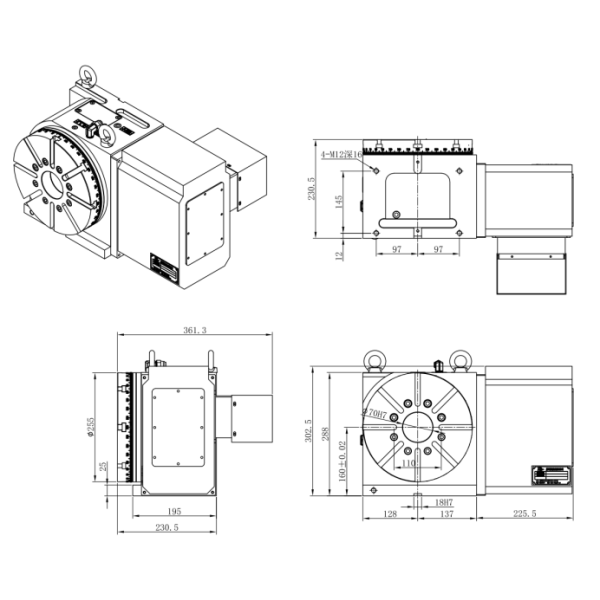

TB255
Item Specification
Worktable Diameter φ255 (unit: mm)
Worktable Center Hole Diameter φ70H7(unit: mm)
Spindle Through-Hole Diameter φ70(unit: mm)
Dial T-Slot Width 12 (unit: mm)
Positioning Key Width 18 (unit: mm)
Brake Operating Pressure (kgf/cm2) Hydraulic Pressure: 30~35 kgf/cm2
Applicable Ambient Temperature 10~50 (unit: °C)
Minimum Indexing Angle 0.001°
Gear Ratio 1:60
Indexing Accuracy 20 arcseconds
Repeatability Accuracy 4 arcseconds
Vertical Load / With Tailstock 150KG / 300KG
Horizontal Allowable Load 300KG
Total Weight 87KG
Maximum Rotational Speed 50 r.p.m.
Allowable Cutting Torque (kgf-m) 55
Optional Servo Motors FANUC (α iF4/β iS8); MITSUBISHI (HG-104/154); SIEMENS (1FK7060)
Operating Mode Vertical & Horizontal Dual-Use

4 Axis Cam CNC Rotary Indexer Table With High Precision Positioning And Patented Roller Gear Cam Mechanism

TB255H
Item Specification
Worktable Diameter φ255 (unit: mm)
Worktable Center Hole Diameter φ70H7(unit: mm)
Spindle Through-Hole Diameter φ70(unit: mm)
Dial T-Slot Width 12 (unit: mm)
Positioning Key Width 18 (unit: mm)
Brake Operating Pressure (kgf/cm2) Hydraulic Pressure: 30~35 kgf/cm2
Applicable Ambient Temperature 10~50 (unit: °C)
Minimum Indexing Angle 0.001°
Gear Ratio 1:60
Indexing Accuracy 20 arcseconds
Repeatability Accuracy 4 arcseconds
Vertical Load / With Tailstock 180KG / 350KG
Horizontal Allowable Load 350KG
Total Weight 104KG
Maximum Rotational Speed 50 r.p.m.
Allowable Cutting Torque (kgf-m) 55
Optional Servo Motors FANUC (α iF4/β iS8); MITSUBISHI (HG-104/154); SIEMENS (1FK7060)
Operating Mode Vertical & Horizontal Dual-Use

4 Axis Cam CNC Rotary Indexer Table With High Precision Positioning And Patented Roller Gear Cam Mechanism

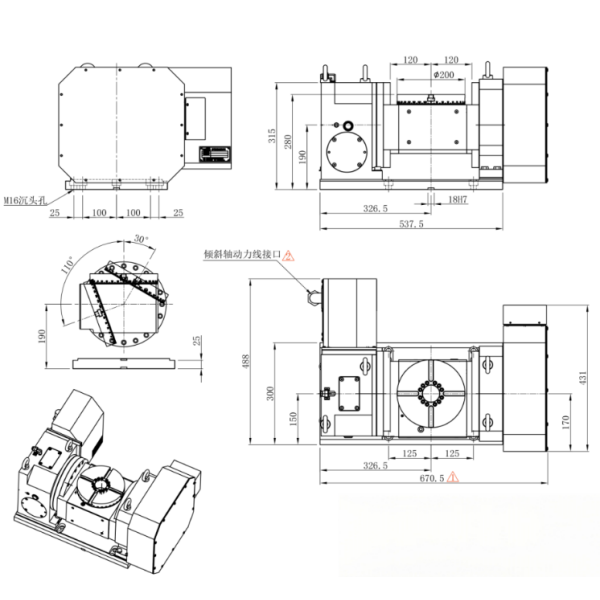

TB-C200
Item Specification
Worktable Diameter φ200 mm
Worktable Height (Horizontal) 280 mm
Worktable Rotation Center Height 190 mm
Worktable Tiltable Angle -30° to 110°
Worktable T-slot Width 12H7
Positioning Key Width 18H7
Brake Pressure (kgf/cm2) - Tilt Axis: Hydraulic Pressure 3±0.5 MPa
- Rotation Axis: Pneumatic Pressure 0.6 MPa
Applicable Ambient Temperature 10° to 50°
Minimum Indexing Angle 0.001
Reduction Ratio - Tilt Axis: 1:60
- Rotation Axis: 1:48
Indexing Accuracy (arcseconds) - Tilt Axis: 40
- Rotation Axis: 20
Repeatability Accuracy (arcseconds) - Tilt Axis: 8
- Rotation Axis: 8
Allowable Load (kg) - Horizontal: 80
- Tilted: 50
Servo Motor (Optional) - Tilt Axis: FANUC (β iS8), MITSUBISHI (HG-104)
- Rotation Axis: FANUC (β iS8), MITSUBISHI (HG-104)
Allowable Cutting Torque (N·m) - Horizontal: 600
- Tilted: 400
Total Weight (kg) 220

4 Axis Cam CNC Rotary Indexer Table With High Precision Positioning And Patented Roller Gear Cam Mechanism

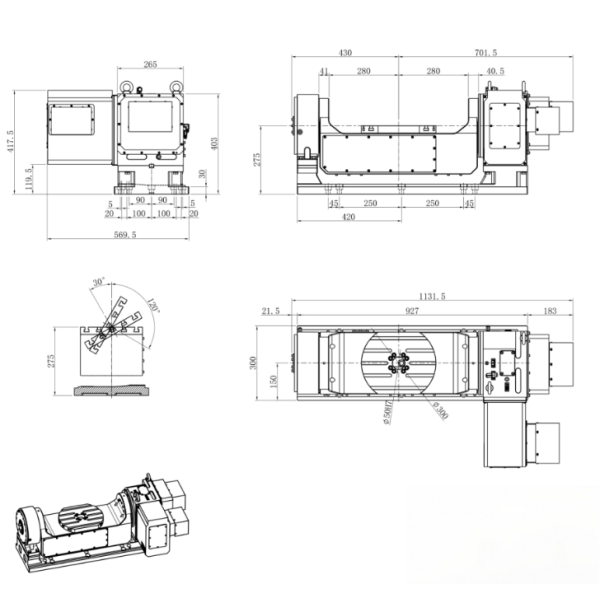

TB-YL250
Item Specification
Worktable Diameter φ300×200 mm
Worktable Height (Horizontal) 275 mm
Worktable Rotation Center Height 275 mm
Worktable Tiltable Angle -30° to 110°
Worktable T-slot Width 12H7
Positioning Key Width 18H7
Brake Pressure (kg/cm2) Hydraulic Pressure 30 to 50
Applicable Ambient Temperature 10° to 50°
Minimum Indexing Angle 0.001
Reduction Ratio - Tilt Axis: 1:60
- Rotation Axis: 1:60
Indexing Accuracy (arcseconds) - Tilt Axis: ±15
- Rotation Axis: ±20
Repeatability Accuracy (arcseconds) - Tilt Axis: 8
- Rotation Axis: 8
Allowable Load (kg) - Horizontal: 100
- Tilted: 70
Servo Motor (Optional) - Tilt Axis: FANUC (β iS12 B), MITSUBISHI (HG-154 B)
- Rotation Axis: FANUC (β iS4), MITSUBISHI (HG-105)
Allowable Cutting Torque (N·m) - Horizontal: 350
- Tilted: 300
Total Weight (kg) 380

4 Axis Cam CNC Rotary Indexer Table With High Precision Positioning And Patented Roller Gear Cam Mechanism

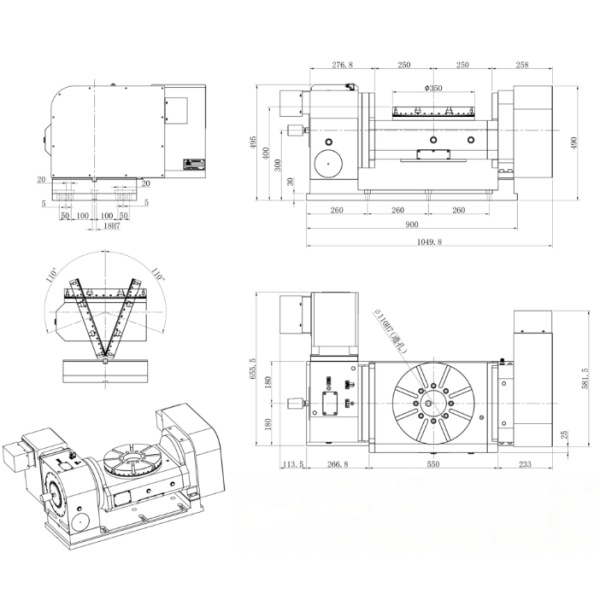

TB-C350
Item Specification
Worktable Diameter φ350 mm
Worktable Height (Horizontal) 400 mm
Worktable Rotation Center Height 300 mm
Worktable Tiltable Angle -110° to 110°
Worktable T-slot Width 12H7
Positioning Key Width 18H7
Brake Pressure (kg/cm2) Hydraulic Pressure 30 to 50
Applicable Ambient Temperature 10° to 50°
Minimum Indexing Angle 0.001
Reduction Ratio - Tilt Axis: 1:72
- Rotation Axis: 1:72
Indexing Accuracy (arcseconds) - Tilt Axis: ±15
- Rotation Axis: ±20
Repeatability Accuracy (arcseconds) - Tilt Axis: 8
- Rotation Axis: 8
Allowable Load (kg) - Horizontal: 200
- Tilted:160
Servo Motor (Optional) - Tilt Axis: FANUC (β iS22), MITSUBISHI (HG-204)
- Rotation Axis: FANUC (β iS12), MITSUBISHI (HG-154)
Allowable Cutting Torque (kgf·m) - Horizontal: 180
- Tilted: 160
Total Weight (kg) 585

4 Axis Cam CNC Rotary Indexer Table With High Precision Positioning And Patented Roller Gear Cam Mechanism
