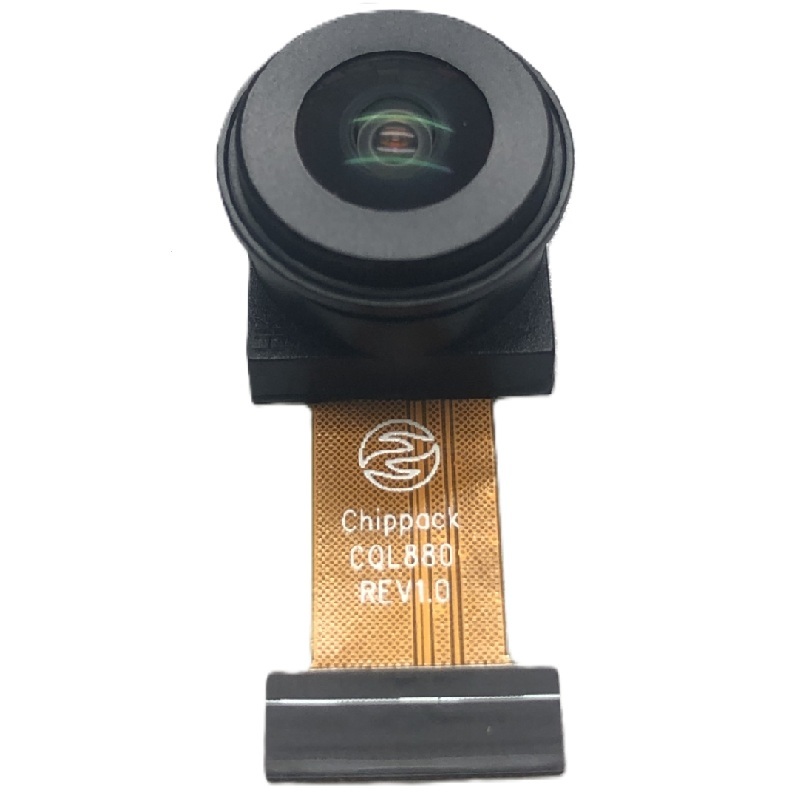

OV OV5640 RGB Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

The OVT OV5640 is a 1/4-inch 5-megapixel CMOS image sensor from OmniVision. Its core advantages include high cost-effectiveness, integrated design, flexible interfaces, and low power consumption. It is suitable for mobile devices, embedded development, and security applications, representing a mature, low-cost imaging solution at the 5MP level. Its core features are as follows:

2. Technical Features:

Core Imaging and Pixel Design

• Pixels and Resolution: 5 million effective pixels (2592×1944), 1.4μm×1.4μm pixel size, 1/4-inch optical specifications, balancing resolution and light sensitivity.

• Back-illuminated Technology: Utilizes OmniBSI back-illuminated architecture to improve light collection capabilities, reduce crosstalk and noise, and enhance low-light imaging performance.

• Color and Image Quality: Equipped with an RGB primary color mosaic filter for natural color reproduction; built-in defect pixel correction, noise reduction, and anti-ghosting enhance image purity.

Frame Rate and Image Processing

• Flexible Frame Rates: 15fps at full resolution (2592×1944), 30fps at 1080p, 60fps at 720p, and 120fps at QVGA, adaptable to both static and dynamic scenes.

• Integrated ISP Functionality: Built-in JPEG compression engine reduces bandwidth; supports 8/10-bit RAW, RGB, YUV, and other formats; SCCB (I2C compatible) programming controls auto exposure (AEC), auto white balance (AWB), gamma correction, etc., simplifying development.

• Low-Light Enhancement: Supports 2×2 pixel binning for improved low-light sensitivity; dynamic range up to 68dB, signal-to-noise ratio 36–46dB, adaptable to complex lighting environments.

Interfaces and Power Consumption

• Dual Interface Support: DVP parallel and dual-channel MIPI CSI-2, adaptable to different main controllers and bandwidth requirements, compatible with embedded development boards and mobile platforms.

• Low-power architecture: Operating voltage 2.7V–3.6V, supports multiple energy-saving modes, suitable for battery-powered devices such as drones and smart glasses.

• Miniaturized packaging: 1/4-inch optical specifications facilitate a thin and light module design, simplifying peripheral circuitry and reducing design complexity and cost.

Focusing and design advantages

• Flexible focusing solutions: Supports autofocus (AF) and fixed focus, adapting to different precision requirements, such as face recognition and industrial inspection.

• Stability and durability: Built-in image stabilization engine improves video stability; SMT+AA precision manufacturing process ensures batch consistency, and steel-reinforced FPC enhances durability.

• Cost-controllable: High integration simplifies peripheral circuitry, and a mature supply chain reduces bulk procurement costs, suitable for consumer electronics and embedded mass production projects.

3. Application areas:

Video doorbells, smart door locks, baby monitors, smart home cameras, home security monitoring, etc.

4. Personalized customization services:

Customized modules can be produced according to customer needs, tailoring products to meet specific requirements.
