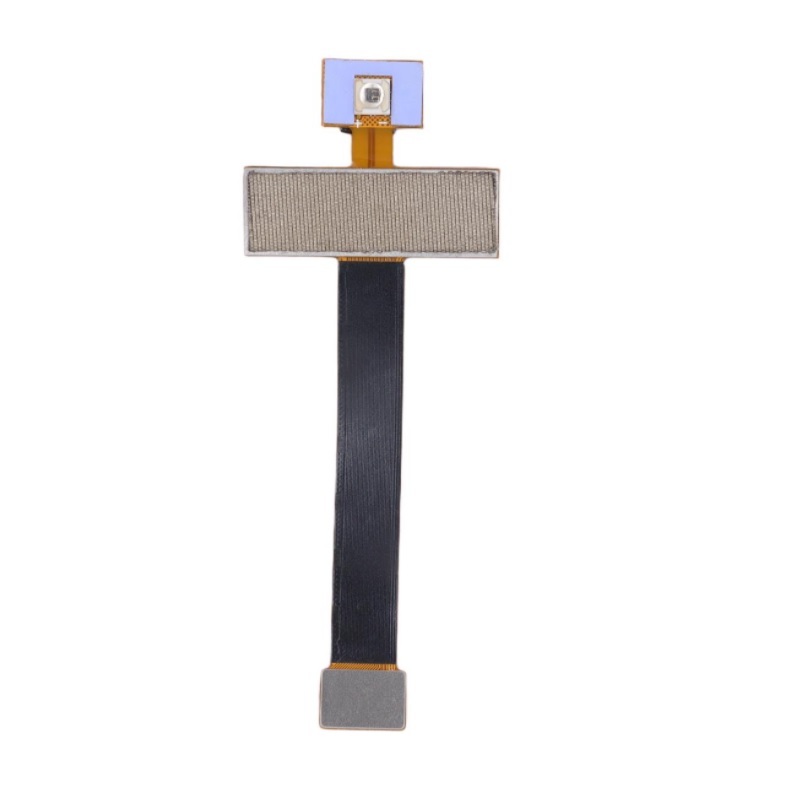

BF2253L RGB - IR Rolling Shutter Camera Module , Machine Vision , Biometrics , QR Code , Customization Services Available .

1. Basic Parameters:

- Resolution: 1600(H)×1200(V), 2MP. It delivers clear imaging to meet basic imaging demands in various scenarios and fits the core requirements of mid-to-low-end imaging devices.

- Pixel Size: 1.75μm(H)×1.75μm(V). Built with CMOS technology and equipped with matched image optimization circuits, it effectively boosts photosensitivity, reduces noise interference and ensures stable image quality.

- Optical Format: 1/5 inch. Featuring compact size, it is suitable for packaging of various small modules, can be flexibly embedded into all kinds of compact equipment and improves the flexibility of equipment design.

- Supply Voltage: Core voltage 2.8V, interface voltage 1.8V, analog voltage 2.8V. It can operate stably under diverse voltage conditions and guarantee the reliability of the sensor.

- Temperature Range: Operating temperature ranges from -20℃ to 70℃. It has a wide operating temperature range and adapts to various working environments.

2. Technical Features:

- Rolling Shutter Technology: Adopting line-by-line exposure rolling shutter design, it features low imaging noise and delicate detail restoration. It also has high circuit integration, lower power consumption and cost, ideal for high-definition imaging in static and low-speed scenarios.

- Manufactured with advanced CMOS image sensor process, it achieves ultra-low dark noise and extremely low power consumption. It can effectively control noise even in high-temperature environments to ensure clear imaging, cut down overall equipment energy consumption and extend battery life, meeting the usage needs of portable electronic devices.

- It integrates CDS (Correlated Double Sampling) noise cancellation circuit, analog global gain control, automatic black level compensation and on-chip 10-bit DAC. Functions including exposure control, gain control, image size and window control can be programmed and adjusted via two-wire serial interface, enabling flexible image effect optimization according to scenarios and enhancing user-friendliness.

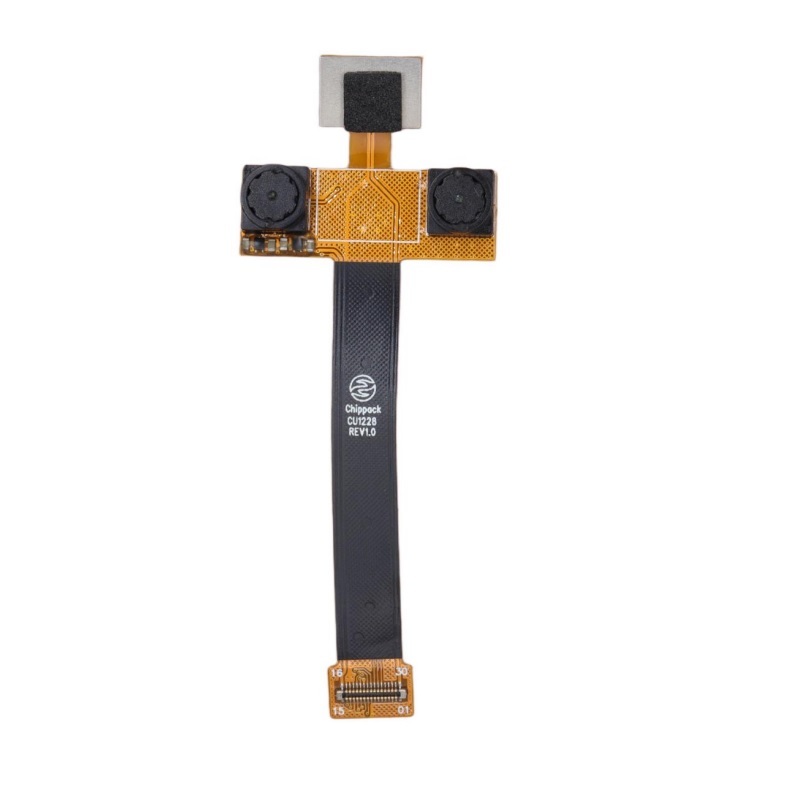

- BF2253L Camera Module: Compatible with standard modules equipped with lenses of different viewing angles such as 89° and 119° to satisfy diverse customer demands.

3. Application Fields:

It is widely applied in biometric identification, drones, smart home, IoT devices, machine vision, barcode scanning, factory automation and other fields.

4. Personalized Customization Services:

Custom modules can be produced in a tailored manner in accordance with customer requirements to create exclusive products that fully match clients' actual demands.
