1x2 AHD distribution amplifier,AHD 1x2 splitters
1x2 AHD distribution amplifier,AHD 1x2 splitters
1x2 AHD distribution amplifier,AHD 1x2 splitters
1x2 AHD distribution amplifier,AHD 1x2 splitters
1x2 AHD distribution amplifier,AHD 1x2 splitters
1x2 AHD distribution amplifier,AHD 1x2 splitters
1x2 AHD distribution amplifier,AHD 1x2 splitters
1x2 AHD distribution amplifier,AHD 1x2 splitters
Specifications
Brand Name :
JiaMinAVTech
Model Number :
JM-AHD-1TO 2
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
2 pieces
Price :
24~120USD/piece
Payment Terms :
T/T
Supply Ability :
100000 pieces/month
Delivery Time :
3days
Packaging Details :
1 DC5V power,1 piece splitter
Unit Weight :
0.3kg
Dimension :
104mm×104mm×28mm
Package size :
23×19×9cm
Case material :
Aluminum
Power :
DC5V 2A
warranty :
2years
Description

The 1 x2 AHD splitters also named as 1x2 AHD distribution amplifier ,is one of the portable splitter which can distribute 1Channel 720p/1080p AHD signal into 4CH AHD signals,which are compatible with AHD-H,AHD-M,AHD-L ,720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30. High definition, Lossless non-compression real time.

1 x2 AHD splitters Features

1)High definition, Lossless non-compression real time transmission

2)Auto recognition of input video format as AHD-H,AHD-M,AHD-L

3)UPnP, easy installation

4)Industry-grade of operating temperature from -30℃to 75℃

Video:

Number of Channels 1 input ,2 output
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Differential Gain < ±1.5%
Differential Phase < ±1°

Other

Power DC5V 2A
Power Consumption ≤3W
Temperature -30ºC ~85ºC
Humidity 10%~90% RH
Unit Weight 0.3kg
Dimension 104mm×104mm×28mm
Package size 23×19×9cm
Installation Wall mount
MTBF ≥ 100000Hours
Case material Aluminum

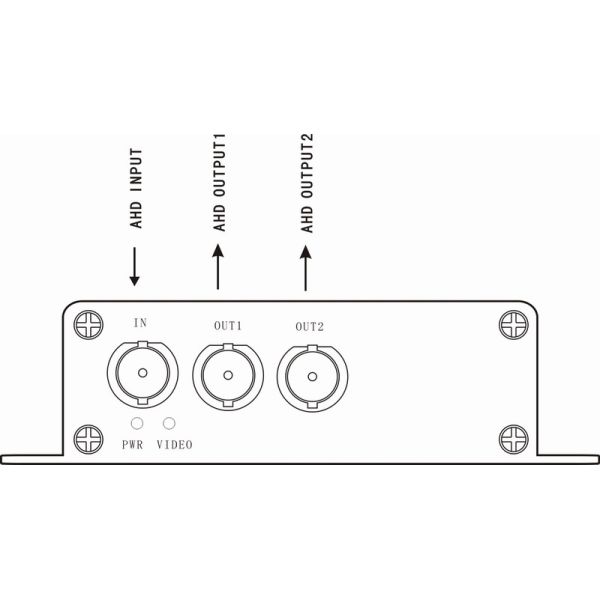

Connection diagram:

1x2 AHD distribution amplifier,AHD 1x2 splitters
