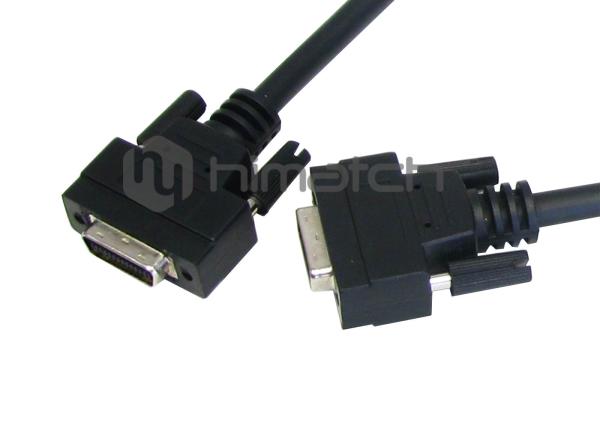

High flex Camera Link MDR / SDR Cable For Limited Space Internal Connection

Description:

Himatch’s PoCL Camera Link High Speed Data Transmission Cable are constructed of plenum rated 11pair+2 cores robotic cable with 3M^® SDR 26pin, UL verified MDR connector at each end.,with robust molding with thumbscrew, They offer outstanding quality, durability, and high performance for industrial CCD camera with SDR or MDR port.

Specification:

Features

High flexible durable cable

100% electronically tested for functionality

Shielded pairs provide superior signal integrity

Overall foil and braid shielded provides EMI/RFI protection

Installation : Moving site must be high durable cable, bending radius R minimum 8D

RoHS and REACH compliant

Connection Type: MDR 26PIN Straight to SDR 26PIN Straight

And also can be customized as follows:

MDR to MDR (straight / right angle / left angel / up angel / down angel)

SDR to SDR (straight / right angle / left angel / up angel / down angel)

MDR to SDR (straight / right angle / left angel / up angel / down angel)

Customized Cable Length(upto15m): 0.5m, 1m, 2m, 3m, 5m, 6m, 8m, 10m...15m

Application

Industrial imaging

Machine Vision system

Industrial camera

Scanning on pipelining

Products testing

Image recognition

Factory automation

Note:
The movable cable used for fixing will not have any problems . However, the fixing cable is NOT allow used for movable applications.
When installing the cable, please consider the allowable bending radius of the cable,if the bending degree exceeds the limit of the cable's internal structure or sheathed structure, it caused the deterioration of the cable's performance. Strongly recommend that the bending radius ≥ 4 R (R is the outer diameter of cable) when cable installed.
