5Gbps USB3 Vision A Male to Micro B Male Standard Camera Data Cable with Screw Lock
5Gbps USB3 Vision A Male to Micro B Male Standard Camera Data Cable with Screw Lock
5Gbps USB3 Vision A Male to Micro B Male Standard Camera Data Cable with Screw Lock
5Gbps USB3 Vision A Male to Micro B Male Standard Camera Data Cable with Screw Lock
5Gbps USB3 Vision A Male to Micro B Male Standard Camera Data Cable with Screw Lock
5Gbps USB3 Vision A Male to Micro B Male Standard Camera Data Cable with Screw Lock
Specifications
Brand Name :
OEM
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
100
Price :
US$2.5-12
Payment Terms :
T/T
Supply Ability :
1000PCS/Week
Delivery Time :
3-5 working days
Packaging Details :
PE bag, Polybag, Double blister, Carton
Name :
U3 Standard Camera Data Cable
Cabe OD :
5.8mm
Wire :
28AWG
Conductor :
Tinned copper
Voltage :
30V
Bending :
10 Millions
OEM/ODM :
Available
Color :
Black
Description

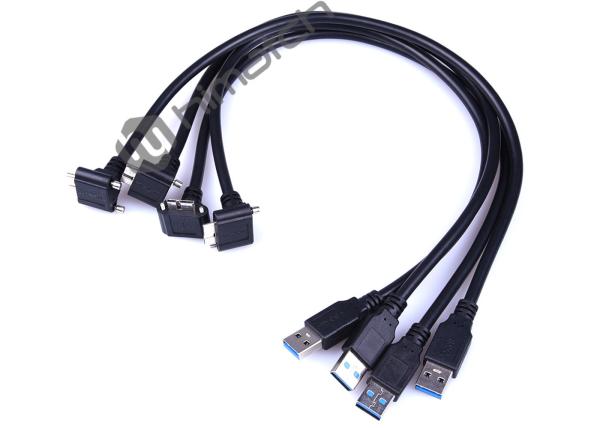

USB3 Vision Cables , Micro B With Thumbscrews To A Male For Industrial Camera

Description:

Industrial USB 3.0 5Gbps printer cable manufacturer from China. Himatch built this cable by full shielded cable with USB IF Verified Quality USB 3.0 A and B Connector on each end.They offer outstanding quality and high performance.

Advantages of USB 3.0 Cable

1) completely backward compatible with USB 2.0/1.1/1.0.

2) USB 3.0 cable provided 10 times data transmission speed than USB 2.0; Data transfer rate up to 5Gbps

3) USB 3.0 adopts low voltage differential to transfer date, which reduce interior interference and suit for long-distance transmission.

4) Uploads and downloads are kept on separate data lanes

4) USB 3.0 will charge more devices, quicker

5) USB 3.0 will be more power efficient

5Gbps USB3 Vision A Male to Micro B Male Standard Camera Data Cable with Screw Lock

Specification:

Standard USB 3.0 Vision Transmit Speed Max 5Gpbs
Installation mode Static Install radius (Min) 25mm
Wire gauge 28AWG Cable OD 5.5mm
Jacket Material PVC Current 3A
Operation Temperature -25°C ~+ 80°C Max Length 5m

Features

Support high speed data transmission 5Gbps

100% electronically tested for functionality

Overall foil and braid shielded provides EMI/RFI protection

RoHS and REACH compliant

Application

frame grabber

Industrial Camera

Industrial CCD Scanner

Customized Cable Length: 0.5m, 1.2m, 1.5m, 2m, 3m, 5m, 5.1-10m with booster

Customized Connection Type:

Type A male Straight to Micro B Straight

Type A male Straight to Micro B Up Angle

Type A male Straight to Micro B Down Angle

Type A male Straight to Micro B Right Angle

Type A male Straight to Micro B Left Angle

Type A male Up Angle to Micro B Straight

Type A male Up Angle to Micro B Up Angle

Type A male Up Angle to Micro B Down Angle

Type A male Up Angle to Micro B Right Angle

Type A male Up Angle to Micro B Left Angle

Type A male Down Angle to Micro B Straight

Type A male Down Angle to Micro B Up Angle

Type A male Down Angle to Micro B Down Angle

Type A male Down Angle to Micro B Right Angle

Type A male Down Angle to Micro B Left Angle

Type A male Right Angle to Micro B Straight

Type A male Right Angle to Micro B Up Angle

Type A male Right Angle to Micro B Down Angle

Type A male Right Angle to Micro B Right Angle

Type A male Right Angle to Micro B Left Angle

Type A male Left Angle to Micro B Straight

Type A male Left Angle to Micro B Up Angle

Type A male Left Angle to Micro B Down Angle

Type A male Left Angle to Micro B Right Angle

Type A male Left Angle to Micro B Left Angle

5Gbps USB3 Vision A Male to Micro B Male Standard Camera Data Cable with Screw Lock

5Gbps USB3 Vision A Male to Micro B Male Standard Camera Data Cable with Screw Lock

5Gbps USB3 Vision A Male to Micro B Male Standard Camera Data Cable with Screw Lock
