• Brand: Camel Energy
• Model: UT-1024A
• Nominal Voltage: 12.8V
• Nominal Capacity: 80Ah
• Rated Energy: 1024Wh
• Cycle Life: High cycle durability (LFP core)
• IP Rating: IP65
• Terminal Type: M8 Threaded Studs
• Bluetooth: Optional (real-time monitoring)
• Heating Function: Optional (low-temp charging)
• Warranty: 36 Months
• Certification: UN38.3

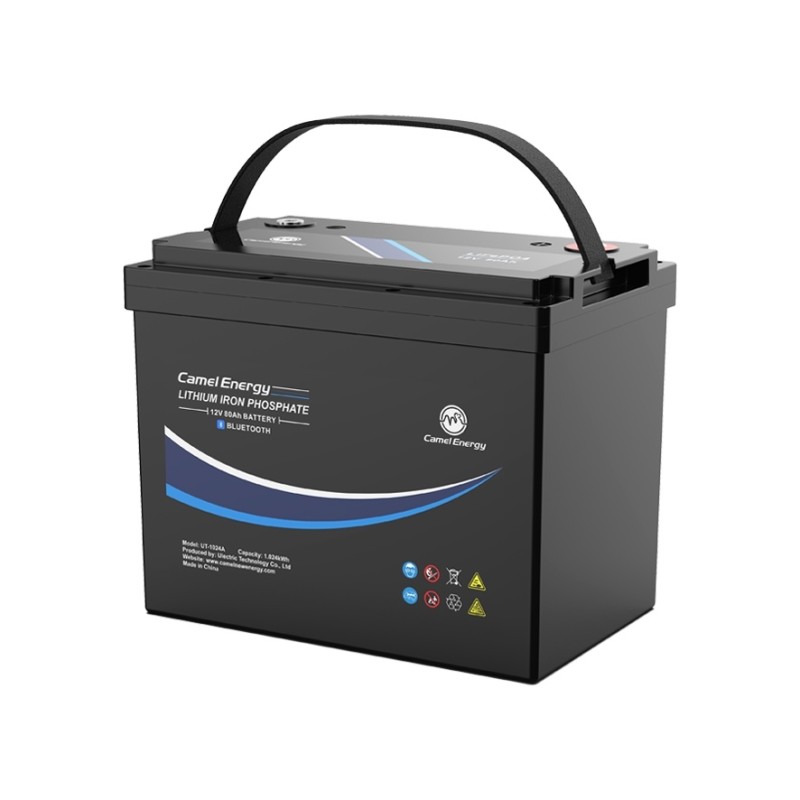

Camel Energy UT-1024A is a compact, high-performance lithium iron phosphate (LFP) battery module engineered for versatile low-voltage power applications. Boasting a 12.8V nominal voltage, 80Ah capacity and 1024Wh rated energy, it features an ABS rugged shell, built-in intelligent BMS and optional Bluetooth/heating functions, delivering reliable, safe and maintenance-free power supply for off-grid, mobile and small-scale energy storage scenarios.

Designed to replace traditional lead-acid batteries with a smaller, lighter form factor, the UT-1024A offers IP65 dust/water resistance, multi-layer safety protection and automatic cell balancing, ensuring consistent performance and extended lifespan. Its optional low-temperature heating enables normal charging in harsh cold environments (-20~0°C), while the optional Bluetooth module supports real-time monitoring of voltage, current, temperature and SOC via mobile APP. Backed by a 36-month warranty, it is an ideal cost-effective power solution for RVs, solar lighting, small medical equipment and portable off-grid systems.

UT-1024A is a versatile 12V LFP battery module, ideal for small-scale low-voltage power supply scenarios including:

1. Recreational Vehicles & Marine: RV auxiliary power, boat onboard power, camper van lighting/electronics
2. Solar Energy Storage: Small off-grid solar systems, solar garden lights, portable solar power banks
3. Portable & Mobile Equipment: Small medical devices, outdoor testing instruments, portable power stations
4. Toys & Light Electronics: Large electric toys, small household backup power, low-voltage DC appliances
5. Outdoor & Off-grid Use: Camping equipment, remote area small power supply, outdoor surveillance devices
6. Light Industrial: Small low-voltage industrial equipment, automated toy production lines, mini AGVs

1. Compact LFP Core Design: Lithium iron phosphate chemistry with smaller size and lighter weight than traditional lead-acid batteries, saving installation space.
2. IP65 Rugged Protection: Dust and water resistance rating, suitable for indoor/outdoor, humid and dusty application scenarios.
3. Intelligent BMS System: Built-in multi-layer protection (short-circuit, over/under voltage, over/low temp) for safe and stable operation.
4. Auto Cell Balancing: Built-in balance circuit triggers automatically at set conditions, improving cell consistency and extending battery lifespan.
5. Optional Low-temp Heating: Auto activates in -20~0°C (with external power) to ensure normal charging in cold environments.
6. Optional Bluetooth Monitoring: Real-time tracking of battery status (Voltage/Current/Temperature/SOC) via mobile APP for easy management.
7. Multiple Operating Modes: Smart charging/discharge/standby/sleep modes, optimizing energy consumption and reducing idle power loss.
8. Maintenance-free & Durable: ABS shell with impact resistance and good insulation performance, 24/7 usable with no regular maintenance.

1. Superior LFP Performance: Lithium iron phosphate chemistry offers high thermal stability, no thermal runaway risk, and longer cycle life than other lithium batteries.
2. Space & Weight Saving: Compact dimensions and lightweight design outperform traditional lead-acid batteries of the same capacity, ideal for mobile/portable applications.
3. All-Environment Adaptability: IP65 protection + optional low-temp heating enables reliable operation in extreme temperatures (-20°C~60°C discharge) and harsh environments.
4. Smart & User-friendly: Optional Bluetooth real-time monitoring + automatic cell balancing, no professional operation required for daily use.
5. Comprehensive Safety: Built-in intelligent BMS with full-range protection mechanisms, eliminating risks of short-circuit, overcharging and overheating.
6. Maintenance-free Operation: Rugged ABS shell, sealed design and auto balancing, no water addition or regular maintenance needed, reducing user effort.
7. Flexible Compatibility: Standard M8 terminals and 12.8V nominal voltage, compatible with most 12V low-voltage equipment and solar charging systems.
8. Assured After-sales: 36-month official warranty for proper operation, with professional technical support from Camel Energy.
9. Energy-efficient Modes: Smart sleep mode activates for low idle power loss, extending standby time for off-grid and mobile use.

A: The nominal voltage is 12.8V, with a discharge cut-off voltage of 10.8V. The battery automatically stops discharging when the voltage drops to 10.8V to protect the cells.

A: The heating function auto triggers when the ambient temperature is -20~0°C and an external power input is present, ensuring normal charging (0~45°C). It automatically stops heating when the temperature exceeds 5°C.

A: 1. Download the app (Android: scan QR code/official website; iOS: search "Bms Blue Tooth" in App Store); 2. Activate the battery via discharge; 3. Open the app, click "Connect Bluetooth" and scan the battery's QR code or search for the Bluetooth code to connect (no password required for basic monitoring).

A: Store at 15°C~35°C (5%~95%RH, no condensation); avoid direct sunlight and heat sources (≥2m distance); do not invert or subject to mechanical impact. Replenish charge every 3 months and fully recharge within 6 months to maintain performance.

A: No. This product does not support simultaneous charging and discharging. Such operation is strictly prohibited to avoid battery damage and safety risks.

A: The battery enters shallow sleep mode after 30 mins of low load (＜600mA) and no UART communication. Wake it up by detecting charging voltage (≥12.8V) or a discharge current greater than 800mA; it also wakes up automatically every 1 hour for detection.

A: Low voltage protection cuts off the discharge MOSFET and shuts down the battery after 30 seconds. Activate it only by connecting an external charger (≥12.8V) – the battery will resume normal operation once charging is detected.

A: Use original or certified cables and the equipped M8*12mm bolts for connection. Mismatched terminals/cables may cause poor contact, overheating and safety hazards, and will void the warranty.

A: 36-month warranty from the purchase date for problems caused by proper operation and installation. The warranty does not cover damage from improper use/installation, mechanical impact, unauthorized disassembly, or products without a warranty card. Out-of-warranty maintenance is available at the customer's expense.

A: Yes. It features a standard 12.8V nominal voltage (compatible with 12V lead-acid battery systems), compact size and M8 standard terminals, enabling direct drop-in replacement without additional hardware modification.
